Description

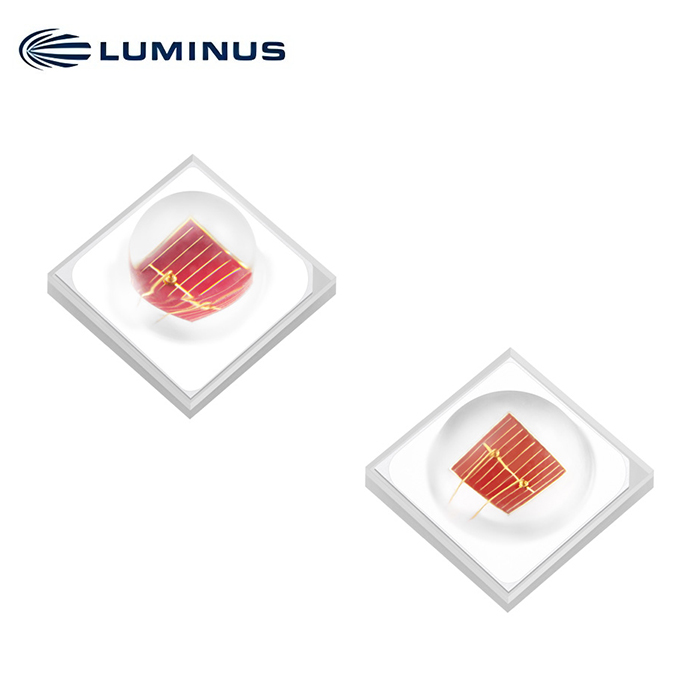

SST-10-R Red LED
Features
• High Power Red LED with Peak Wavelength of 630 nm
• Wall-Plug Efficiency: typ. 49% @350 mA
• 80° or 120° viewing angle at 50% Iv
• Low Thermal Resistance
• 6 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001
Applications
• Horticulture / Growlights
• Architectural lighting
• Accent and effect lighting
• Stage lighting
Ordering Part Numbers1
| Color | Radiometric Flux | Wavelength Bins | Ordering Part Number | |
| Minimum Flux Bin1 | Minimum Flux² | |||
| Red | G | 270 mW | 615, 620, 625 | SST-10-R-B90-G630 |
| SST-10-R-B130-G630 | ||||
| H | 310 mW | 615, 620, 625 | SST-10-R-B90-H630 | |
| SST-10-R-B130-H630 | ||||
| J | 350 mW | 615, 620, 625 | SST-10-R-B90-J630 | |
| SST-10-R-B130-J630 | ||||
Part Number Nomenclature
SST 10 R <B###> <ffwww>
| Product Family | Chip Area | Color | Package Configuration | Bin Kit |
| S: Surface Mount
S: Dome Lensed T: Single Emitter |
10: 1.0 mm2 | R: Red | <B> Solder Pad Configuration
B: type B – see page 9 <#> Viewing Angle 90: 80° 130: 120° |
<ff> Minimum Flux Bin, see ‘Binning structure’ on page 3 for details
<www> Wavelength Bin Kit, see ‘Binning structure’ on page 3 for details |
Binning Structure
Luminous Radiometric Flux Bins1
| Flux Bin | Binning @ 350 mA, Tc=25°C | |
| Minimum Flux (mW) | Maximum Flux (mW) | |
| G | 270 | 310 |
| H | 310 | 350 |
| J | 350 | 390 |
| K | 390 | 430 |
Forward Voltage Bins2
| Voltage Bin | Binning @ 350 mA, Tc= 25°C | |
| Minimum Voltage (V) | Maximum Voltage (V) | |
| V1 | 1.8 | 2.6 |
Dominant Wavelength Bins2
| Wavelength Bin | Binning @ 350 mA, Tc= 25°C | |
| Minimum Wavelength (nm) | Maximum Wavelength (nm) | |
| 615 | 615 | 620 |
| 620 | 620 | 625 |
| 625 | 625 | 630 |
Radiometric Power to Lumens Conversion2
| Radiometric Power to Lumens | Dominant Wavelength (nm) | |||||
| 615 nm | 620 nm | 625 nm | 630 nm | |||
| Flux Bin | G | 270 mW | 66 lm | 53 lm | 41 lm | 31 lm |
| H | 310 mW | 76 lm | 60 lm | 47 lm | 35 lm | |
| J | 350 mW | 86 lm | 68 lm | 53 lm | 40 lm | |
| K | 390 mW | 96 lm | 76 lm | 59 lm | 44 lm | |
Characteristics
| Parameter (If=350 mA, Tc=25°C) | Symbol | Value | Unit | |
| Forward Voltage | Minimum | Vf min | 1.8 | V |
| Typical | Vf typ | 2.1 | ||
| Maximum | Vf max | 2.6 | ||
| Forward Current | If | 350 | mA | |
| Output Power | Φr | 360 | mW | |
| Wall-Plug Efficiency | WPE | 49 | % | |
| FWHM | Minimum | 1/2 min | 16 | nm |
| Typical | Δλ
1/2 typ |
20 | ||
| Maximum | 1/2 max | 24 | ||
| Viewing Angle | 2θ1/2 | 80 or 120 | ° | |
| Dominant Wavelength | Minimum | λd min | 615 | nm |
| Typical | λd typ | 621 | ||
| Maximum | λd max | 627 | ||
| Temperature Coefficient of Voltage | ∂Vf/∂T | -2.0 | mV/°C | |
| Temperature Coefficient of Radiometric Flux | ∂mW/∂T | -0.8 | %/°C | |
| Temperature Coefficient of Wavelength | ∂WLD/∂T | 0.07 | nm/°C | |
| Electrical Thermal Resistance (Junction to Solder Point)1 | Rth JS elec | 4.3 | °C/W | |
Absolute Maximum Ratings1, 2
| Parameter | Symbol | Values | Unit | |
| Forward Current (CW)3 | Minimum | If pulse min | 0.1 | A |
| Maximum | If pulse max | 1.5 | ||
| Reverse Voltage | V r | 5 | V | |
| Power Dissipation | PD | 5 | W | |
| Junction Temperature | T
j |
115 | °C | |
| Storage Temperature Range | T
stg |
-40 to 100 | °C | |
| ESD withstand Voltage ANSI/ESDA/JEDEC JS-001 (HBM, Class) | VESD | 6 | kV | |
