Description

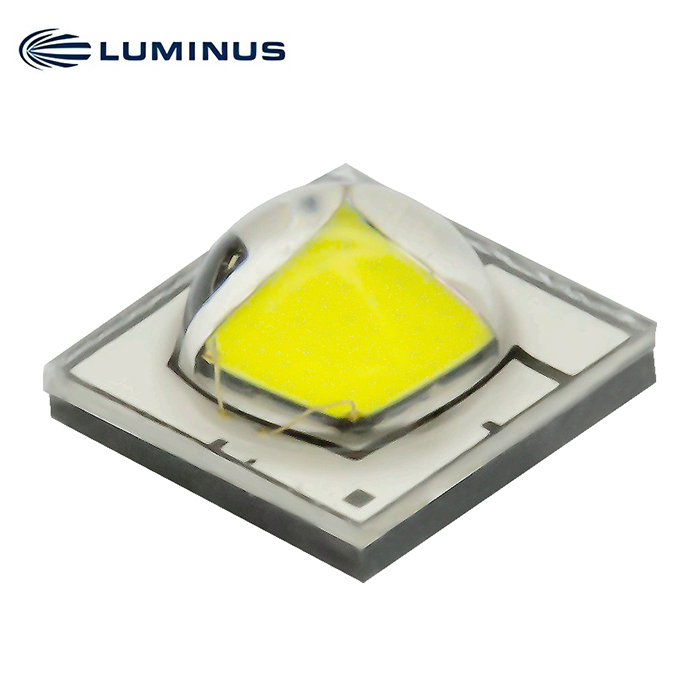

High Power White LEDs SST-20-WxS

Features

• High brightness cool white LEDs with maximum output in excess of 1000 lm @ 3A, 85°C.
• High lumen density of monolithic emitter, up to 518 lm/mm2(6500K), ideal for maximizing the optical efficiency in high-output, beam pattern critical lighting applications.
• Maximum Drive Current: 3 A
• Luminous Efficacy: typ. 206 lm/W @ 350 mA, 85°C (6500K)
• Color Temperature: 5000K, 5700K, 6500K
• Color Rendering Index: min. 65, typ. 70
• Low thermal resistance: 1.6° C/W
• ANSI-compatible chromaticity bins
• LM-80 10,000-hr test data available, excellent TM-21 lifetime and color stability
• Available in 2 soldering footprint configurations
• Electrically isolated thermal path
• 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001
• RoHS and REACH compliant

Applications

• Portable Lights
• Bicycle Lights
• Automotive Auxiliary Lights
• LED Work Lights
• Outdoor and Roadway Lighting
• High Bay Industrial Lighting



Ordering Part Numbers

CCT Minimum

Flux Bin1

 Minimum

Flux (lm)

 Chromaticity

Bin Kit Code2

 Solder Pad

Type3

 Ordering Part Numbers
5000K L4 585 501 A SST-20-WDS-A120-L4501
B SST-20-WDS-B120-L4501
502 A SST-20-WDS-A120-L4502
B SST-20-WDS-B120-L4502
L5 620 501 A SST-20-WDS-A120-L5501
B SST-20-WDS-B120-L5501
502 A SST-20-WDS-A120-L5502
B SST-20-WDS-B120-L5502
5700K L4 585 571 A SST-20-WDS-A120-L4571
B SST-20-WDS-B120-L4571
572 A SST-20-WDS-A120-L4572
B SST-20-WDS-B120-L4572
L5 620 571 A SST-20-WDS-A120-L5571
B SST-20-WDS-B120-L5571
572 A SST-20-WDS-A120-L5572
B SST-20-WDS-B120-L5572
6500K L4 585 651 A SST-20-WCS-A120-L4651
B SST-20-WCS-B120-L4651
652 A SST-20-WCS-A120-L4652
B SST-20-WCS-B120-L4652
L5 620 651 A SST-20-WCS-A120-L5651
B SST-20-WCS-B120-L5651
652 A SST-20-WCS-A120-L5652
B SST-20-WCS-B120-L5652



Luminous Flux Binning

Flux Bin

Code

 Binning

@ 1500 mA, Tj=85°C1

 @ 350 mA,

Tj=25°C2

 Correlated Minimum Flux (lm) @ Tj=85°C2
Minimum

Flux (lm)

 Maximum

Flux (lm)

 Minimum

Flux (lm)

 350 mA 700 mA 2000 mA 3000 mA
L3 560 585 180 157 297 700 941
L4 585 620 187 164 310 731 983
L5 620 665 200 174 330 775 1042
M2 665 705 213 186 352 831 1117
M3 705 745 226 197 374 881 1184



Forward Voltage Binning

Voltage Bin Code Binning @ 1500mA, Tj=85°C
Minimum Voltage (V) Maximum Voltage (V)
VH 2.5 2.7
VJ 2.7 2.9
VK 2.9 3.1
VL 3.1 3.3



Chromaticity Binning Coordinates

CCT Bin

Code

 CIEx CIEy Bin

Code

 CIEx CIEy Bin

Code

 CIEx CIEy Bin

Code

 CIEx CIEy
5000K DA 0.3371 0.349 DB 0.3376 0.3616 DC 0.3463 0.3687 DD 0.3451 0.3554
0.3451 0.3554 0.3463 0.3687 0.3551 0.376 0.3533 0.362
0.344 0.3427 0.3451 0.3554 0.3533 0.362 0.3515 0.3487
0.3366 0.3369 0.3371 0.349 0.3451 0.3554 0.3440 0.3427
DH 0.3366 0.3369 DE 0.3381 0.3762 DF 0.348 0.384 DG 0.344 0.3428
0.344 0.3428 0.348 0.384 0.3571 0.3907 0.3515 0.3487
0.3429 0.3307 0.3463 0.3687 0.3551 0.376 0.3495 0.3339
0.3361 0.3245 0.3376 0.3616 0.3463 0.3687 0.3429 0.3307
5700K CA 0.3215 0.335 CB 0.3207 0.3462 CC 0.329 0.3538 CD 0.329 0.3417
0.329 0.3417 0.329 0.3538 0.3376 0.3616 0.3371 0.349
0.329 0.33 0.329 0.3417 0.3371 0.349 0.3366 0.3369
0.3222 0.3243 0.3215 0.335 0.329 0.3417 0.3290 0.3300
CH 0.3222 0.3243 CE 0.3196 0.3602 CF 0.329 0.369 CG 0.329 0.33
0.329 0.33 0.329 0.369 0.3381 0.3762 0.3366 0.3369
0.329 0.318 0.329 0.3538 0.3376 0.3616 0.3361 0.3245
0.3231 0.312 0.3207 0.3462 0.329 0.3538 0.3290 0.3180
6500K BA 0.3048 0.3207 BB 0.3028 0.3304 BC 0.3115 0.3391 BD 0.313 0.329
0.313 0.329 0.3115 0.3391 0.3205 0.3481 0.3213 0.3373
0.3144 0.3186 0.313 0.329 0.3213 0.3373 0.3221 0.3261
0.3068 0.3113 0.3048 0.3207 0.313 0.329 0.3144 0.3186
BH 0.3068 0.3113 BE 0.3005 0.3415 BF 0.3099 0.3509 BG 0.3144 0.3186
0.3144 0.3186 0.3099 0.3509 0.3196 0.3602 0.3221 0.3261
0.3161 0.3059 0.3115 0.3391 0.3205 0.3481 0.3231 0.312
0.3093 0.2993 0.3028 0.3304 0.3115 0.3391 0.3161 0.3059



Product Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Viewing Angle (FWHM) 2θ1/2 120 Degree
Color Rendering Index CRI 65 70
Thermal resistance (Electrical)

Junction/Solder Point

 Rthjs-EL 1.6 °C/W
Junction Temperature Tj 150 °C
Forward Voltage (@ If=1500 mA, Tj=85°C) Vf 2.7 3.0 3.3 V
DC Forward Current If 0.2 3 A
Surge Current (t <10 ms, Duty Cycle < 10%) Is-max 4 A
Reverse Voltage (Ir=10 mA) V r 5 V
Power Dissipation Pd 10 W
Operating Temperature T

opr

 -40 100 °C
Storage Temperature T

stg

 -40 100 °C
ESD withstand Voltage

HBM Per ANSI/ESDA/JEDEC JS-001

 VHBM 8 kV
ESD withstand Voltage

CDM Per ANSI/ESDA/JEDEC JS-002

 VCDM 1 kV
