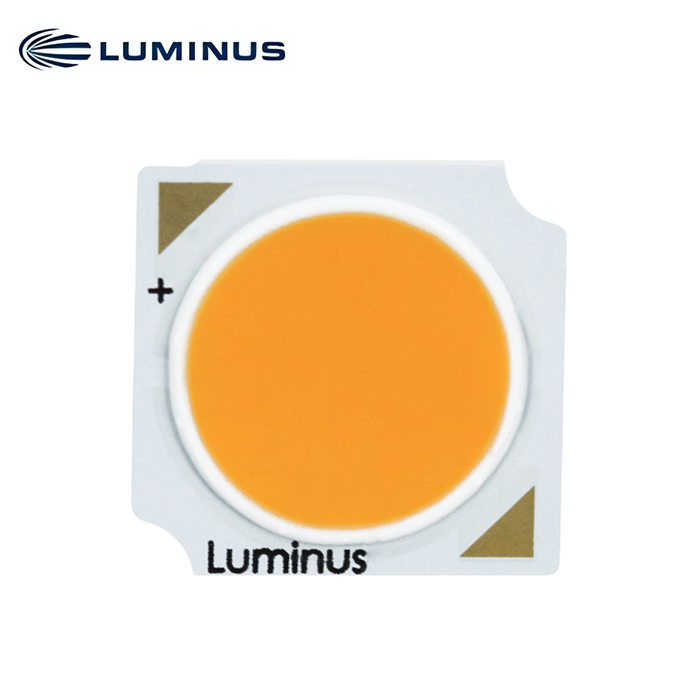

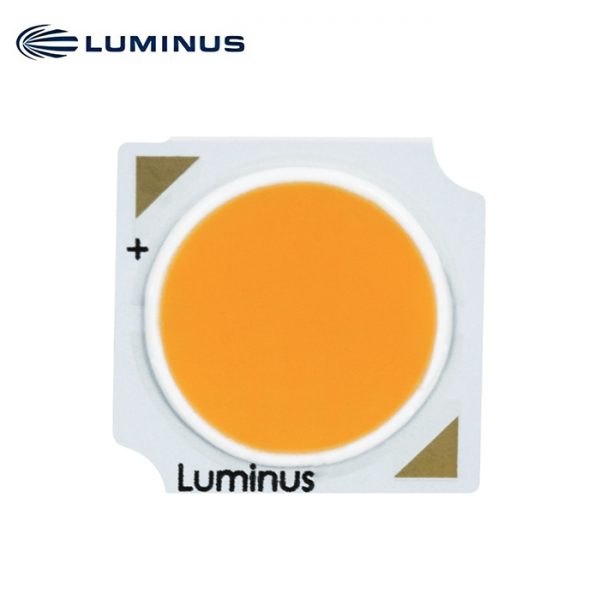

COB ARRAYS

Categories: ,

Description

STANDARD GEN 3

Highest performance general lighting directional source delivering highest efficacy, largest selection emission size, light intensity and color rendering.

APPLICATIONS

  • Retail/Hospitality/Commercial
  • Track/Spot/Bulb
  • Architectural/Museums/Exhibits
  • Roadway/Parking/Tunnel Lighting
  • High/Low Bay
  • Canopy/Awning/Wall Pack

FEATURES

  • >170LPW 70 CRI, >125LPW 90CRI
  • Complete LES and Lumen outputs
  • AccuWhiteTM Color rendering to 97CRI typ.
  • SensusTM and Xtreme SensusTM Pure White
  • Two substrate form factors
  • UL and IEC qualified
  • Widest range of CCT/CRI combinations

BENEFITS

  • Enhanced efficacy reduces power consumptions
  • Source optimized for beam characteristics and optics selection
  • Sources to achieve highest color rendering and optimum appearance
  • Pure white color rendering with enhanced color saturation
  • Bond pads positioned for optimum processing, solder or connector
  • Pre-certified to fast-tracked fixture certifications



PRODUCT SELECTOR

Product Image Product Family LES (mm) Substrate Size (mm) Power Range (W) Flux Range @ 3000K 80CRI
cxm-6 CXM-6 6.3 12 * 13 (AA)
13.5 * 13.5 (AC)		 5.2 – 11.8 700 – 1350
clm-9 CIM-9 9.6 13.5 * 13.5 (AC) 6.1 – 13.2 900 – 1700
clm-9 CLM-9 9.6 15 * 15 (AA)
13.5 * 13.5 (AC)		 8.16 – 20 1200 – 2500
cxm-9 CXM-9 9.6 13.5 * 13.5 (AC) 12.2 – 27 1700 – 3300
chm-9 CHM-9 9.6 15 * 15 (XD20) 12.2 – 37.4 1700 – 3900
cxm-11 CXM-11 11.7 19 * 19 (AC) / 18.5 * 18.5 (AA) 15.2 – 40.5 2200 – 4800
product-1-1 CIM-14 14.3 19 * 19 (AC) 15 – 40 2300 – 5100
clm-14 CLM-14 14.3 18.5 * 18.5 (AA)
19 * 19 (AC)		 17 – 47 3600 – 6600
cxm-14 CXM-14 14.3 18.5 * 18.5 (AA)
19 * 19 (AC)		 24.5 – 54 3600 – 6600
cxm-18 CXM-18 17.5 21.5 * 21.5 (AA) 30.6 – 64 4600 – 8500
cxm-22 CLM-22 22 28 * 28 (AC) 38 – 82 5750 – 10925
cxm-22 CXM-22 22 28 * 28 (AC) 56.1 – 125 8200 – 15200
cxm-27 CXM-27 26.5 31.5 * 31.5 (AB) 82 – 180 12400 – 22900
cxm-32 CXM-32 32.8 38 * 38 (AC) 112 – 240 17200 – 31600
