Description

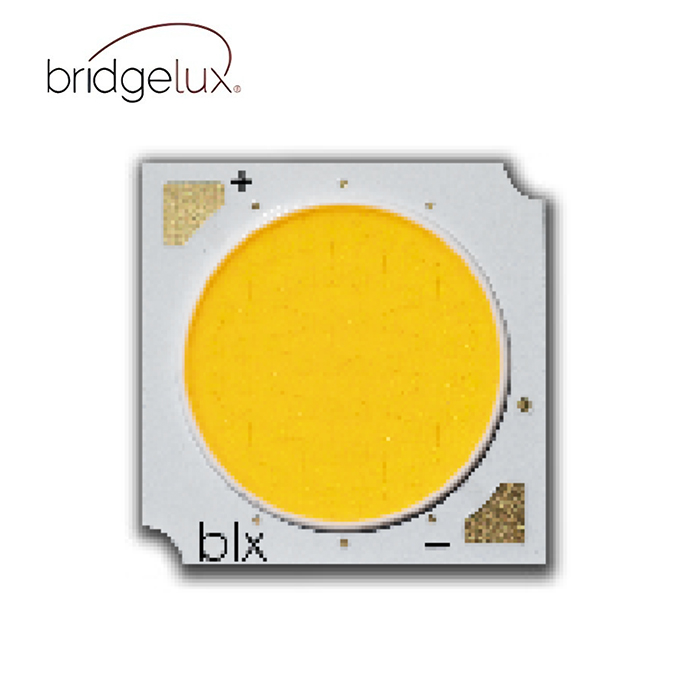

Bridgelux® GEN9 V13 Array Series

The V Series™ LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package. These chip on board (CoB) arrays can be efficiently driven more than two times the nominal drive current, enabling design flexibility not previously possible. These high flux density light sources are designed to support a wide range of high quality, low cost directional luminaires and replacement lamps for both interior and exterior commercial and residential applications.

The Gen 9 V Series COB is a high efficacy product that uses narrow band red phosphor to significantly improve the spectrum efficacy. The improved spectrum efficacy results in the 80 CRI product of the Gen 9 Series delivering better or equivalent efficacy as that of our previous generation V Series product.

The V13 LED Array is available in a variety of electrical, CCT, and CRI combinations providing substantial design flexibility and energy efficiency advantages. Lighting system designs incorporating these LED arrays deliver increased system level efficacy and a longer service life. Typical applications include replacement lamps and task, accent, spot, track, wide area, security, wall packs and down lights.

Features
• Efficacy of 199 lm/W typical, 3000K 80 CRI
• Wide selection of CCT options (2700K-5000K) with minimum 80 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• 3 and 4 SDCM binning options (5000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty

Benefits
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Easy to use with daylight and motion sensors to increase energy savings
• Design with confidence







Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)



Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5



Table 3: Part numbers registered in European Product Registry for Energy Labeling
