Description

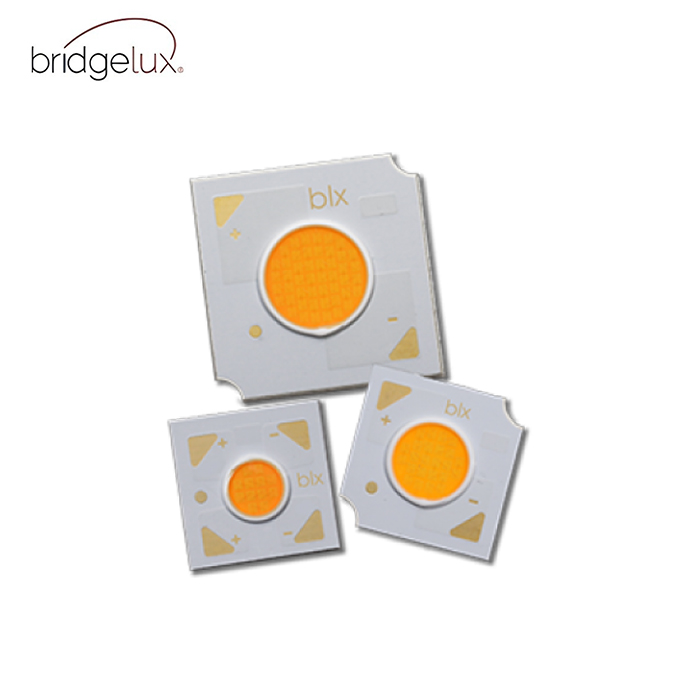

V Series™ HD
V Series™ HD is our ultra-high lumen density COB product line, designed for high intensity spot lights used in retail and commercial settings.
V Series™ HD arrays replace ceramic metal halide lamps by providing equal or greater center beam candle power (CBCP) at higher efficiency and at twice the lifetime. Their tight beam control and exceptional quality of light is well suited for showcase grade directional spot applications.
Features
- Ultra-high lumen density
- High center beam candle power, comparable to ceramic metal halides
- Available in variety of color points, including Decor Class A and ultra-high CRI
- Significantly reduced thermal resistance
- Industry leading color over angle uniformity
- Energy Star / ANSI compliant color binning structure with 3 SDCM options
Benefits
- Enhanced optical control
- Clean, consistent white light without pixelation
- High quality, true color reproduction
- Reliable use at elevated currents enables greater design flexibility
- Better performance maintenance over time and 2x the lifetime of ceramic metal halides
- Enables compact fixture design, lowers operating costs
- Reduced maintenance costs
| Product Family | Product | Part Number | Doc Number | Gen | LES Size (mm) | CCT (K) | CRI Options | Flux(lm) 3000K | Current (mA) | Voltage (V) | Efficacy (lm/W) | Substrate Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRH VHD | V4C HD | BXRH-xxG06T0-C-8x | DS1361 | 8 | 4.8 | 2700-4000 | 90 | 799 | 175 | 33.9 | 135 | 12.5×12.5 |
| BXRH VHD | V4C HD | BXRH-xxG06TB-C-8x | DS1361 | 8 | 4.8 | 2700-4000 | 90 | 779 | 175 | 33.9 | 132 | 12.5×12.5 |
| BXRH VHD | V6C HD | BXRH-xxG10T0-C-8x | DS1360 | 8 | 6.6 | 2700-4000 | 90 | 1458 | 350 | 33.9 | 137 | 13.5X13.5 |
| BXRH VHD | V6C HD | BXRH-xxG10TB-C-8x | DS1360 | 8 | 6.6 | 2700-4000 | 90 | 1422 | 350 | 33.9 | 133 | 13.5X13.5 |
| BXRH VHD | V6G HD | BXRH-xxG10T0-G-8x | DS1360 | 8 | 6.6 | 2700-4000 | 90 | 1508 | 700 | 33.9 | 131 | 13.5X13.5 |
| BXRH VHD | V6G HD | BXRH-xxG10TB-G-8x | DS1360 | 8 | 6.6 | 2700-4000 | 90 | 1477 | 700 | 33.9 | 128 | 13.5X13.5 |
| BXRH VHD | V9E HD | BXRH-xxG30T0-E-8x | DS1362 | 8 | 8.8 | 2700-4000 | 90 | 3240 | 700 | 33.9 | 137 | 19.0×19.0 |
| BXRH VHD | V9E HD | BXRH-xxG30TB-E-8x | DS1362 | 8 | 8.8 | 2700-4000 | 90 | 3159 | 700 | 33.9 | 133 | 19.0×19.0 |
| BXRH VHD | V11G HD | BXRH-xxG40T0-G-8x | DS1363 | 8 | 11.3 | 2700-4000 | 90 | 4374 | 1050 | 33.9 | 126 | 19.0×19.0 |
| BXRH VHD | V11G HD | BXRH-xxG40TB-G-8x | DS1363 | 8 | 11.3 | 2700-4000 | 90 | 4266 | 1050 | 33.9 | 123 | 19.0×19.0 |
| BXRH VHD | V3C HD (FC) | BXRH-xxx0400-C-8x | DS435 | 8 | 2.9 | 2700-6500 | 80, 90, 95 | 422 | 350 | 11.9 | 101 | 13.5×13.5 |
| BXRH VHD | V3A HD | BXRH-xxx0300-A-8x | DS403 | 8 | 3.8 | 2200-5000 | 80, 90, 97 | 396 | 80 | 35.2 | 141 | 12.5×12.5 |
| BXRH VHD | V3B HD | BXRH-xxx0300-B-8x | DS403 | 8 | 3.8 | 2200-5000 | 80, 90, 97 | 396 | 160 | 17.6 | 141 | 12.5×12.5 |
| BXRH VHD | V4A HD | BXRH-xxx0600-A-8x | DS404 | 8 | 4.8 | 2200-5000 | 80, 90, 97 | 868 | 175 | 36.6 | 136 | 12.5×12.5 |
| BXRH VHD | V4B HD | BXRH-xxx0600-B-8x | DS404 | 8 | 4.8 | 2200-5000 | 80, 90, 97 | 868 | 350 | 18.3 | 136 | 12.5×12.5 |
| BXRH VHD | V6B HD | BXRH-xxx1000-B-8x | DS407 | 8 | 6.6 | 2200-5000 | 80, 90, 97 | 1797 | 350 | 36.6 | 140 | 13.5×13.5 |
| BXRH VHD | V6G HD | BXRH-xxx1000-G-8x | DS407 | 8 | 6.6 | 2200-5000 | 80, 90, 97 | 1797 | 700 | 18.3 | 140 | 13.5×13.5 |
| BXRH VHD | V9D HD | BXRH-xxx300x-D-83 | DS408 | 8 | 8.8 | 2700-4000 | 80, 90, 97 | 3630 | 700 | 36.6 | 142 | 19.0×19.0 |
| BXRH VHD | V11F HD | BXRH-xxx40xx-F-83 | DS409 | 8 | 11 | 2700-4000 | 80, 90, 97 | 5445 | 1050 | 36.6 | 142 | 19.0×19.0 |
| BXRH VHD | V4A HD | BXRH-xxx060x-A-73 | DS400 | 7 | 4.8 | 2700-4000 | 80, 90, 93, 97 | 765 | 175 | 36.4 | 120 | 12.5×12.5 |
| BXRH VHD | V6B HD | BXRH-xxx100x-B-73 | DS401 | 7 | 6.6 | 2700-4000 | 80, 90, 93, 97 | 1587 | 350 | 36.4 | 125 | 13.5×13.5 |
| BXRH VHD | V9D HD | BXRH-xxx300x-D-73 | DS402 | 7 | 8.8 | 2700-4000 | 80, 90, 93, 97 | 3417 | 700 | 36.4 | 134 | 19.0×19.0 |
