Description

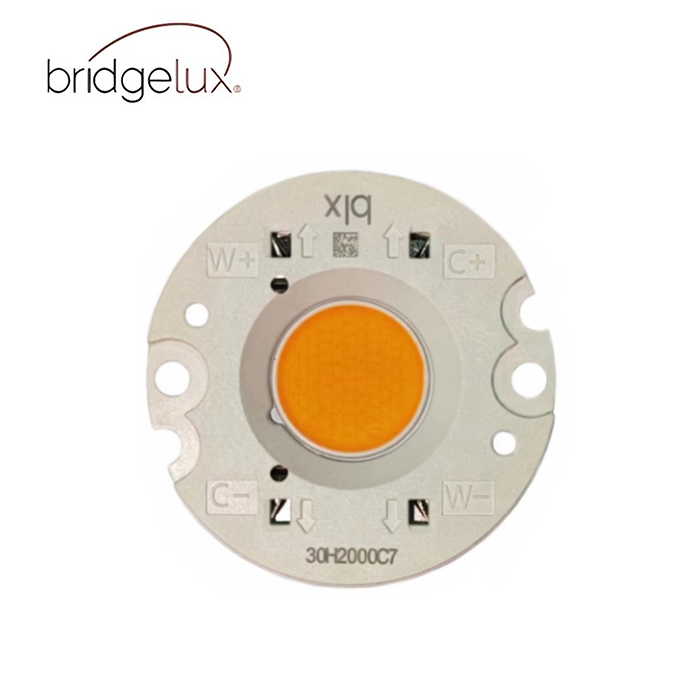

Bridgelux® Vero® SE 13 Array
Vero® SE Series is a revolutionary light source system that integrates Bridgelux’s seventh generation COB technology with poke-in connectivity enabling solder-free installation. Vero SE LED light sources streamline assembly processes, lower manufacturing cost, simplify luminaire design, improve light quality and increase design flexibility.
Vero SE is available in four different light emitting surface (LES) configurations that operate reliably over a broad current range. With Vero SE, secondary connector and holder components are not required, allowing for rapid integration of arrays into fixtures and an efficient field replaceable solution. Vero SE arrays deliver increased lumen density for improved beam control and precision lighting with 2 and 3 SDCM color control standards for clean and consistent uniform lighting.
Bridgelux Décor Series is our state of the art color line designed specifically for premium applications, producing unmatched LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux Décor Series color points are available on Vero® SE Series, Vero® Series, V Series™ and V Series™ HD.
Décor Series Class A is based on human response testing, providing color points with a combined GAI and CRI metric. Décor Series™ Ultra products provide a high CRI of 97 and a minimum R9 value of 93, which emphasizes the reds and color tones to which the human eye is most receptive – perfect for the most luxurious retail shops and world renowned museums. Décor Series Ultra is also a good replacement for halogen lamps. Décor Series™ Showcase is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white light with enhanced spectrum coverage and higher efficacy.
Features
• Poke-in connectivity
• Efficacy of 167 lm/W typical
• Lumen output performance ranges from 511 to 6,931 lumens
• Broad range of CCT options from 2700K to 6500K
• CRI options; minimum 70, 80, and 90
• Color control: 2 and 3 SDCM for 2700K-4000K CCT
• Reliable operation at up to 2X nominal drive current
• Radial die pattern and improved lumen density
• Top side part number markings
• No exposed solder pads or electrical connections
• Vf bin code backside marking
Benefits
• Poke-in connectivity enables solderless, connector free installation
• Broad application coverage for interior and exterior lighting
• Flexibility for application driven lighting design requirements
• High quality, true color reproduction
• Uniform consistent white light
• Flexibility in design optimization
• Enhanced ease of use and assembly
• Ability to configure multiple Vero SE arrays in series and parallel reduces customer driver cost
• Improved inventory management and quality control
| Product Family | Product | Part Number | Doc Number | LES(mm) | CCT (K) | CRI Options | Typ. Flux(lm) | Current (mA) | Voltage (V) | Efficacy (lm/W) | Substrate Size (mm) | Gen |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRC | Vero SE 13B | BXRC-xxx2000-B-7x-SE | DS121 | 13.3 | 2700-6500 | 70, 80, 90,97 | 2069 | 450 | 35 | 166 | ⌀36.1 | 7 |
| BXRC | Vero SE 13C | BXRC-xxx2000-C-7x-SE | DS121 | 13.3 | 2700-6500 | 70, 80, 90,97 | 3653 | 630 | 35 | 166 | ⌀36.1 | 7 |
| BXRC | Vero SE 13D | BXRC-xxx2000-D-7x-SE | DS121 | 13.3 | 2700-6500 | 70, 80, 90,97 | 2649 | 500 | 32 | 166 | ⌀36.1 | 7 |
Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)
| Part Number | Nominal
CCT1 (K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical Pulsed
Flux4,5,6 Tc = 25ºC (lm) |
Minimum
Pulsed Flux6,7 Tc = 25ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-27E2000-B-7x-SE | 2700 | 80 | 450 | 2455 | 2210 | 34.8 | 15.7 | 157 |
| BXRC-27E2000-C-7x-SE | 2700 | 80 | 630 | 3438 | 3094 | 34.8 | 21.9 | 157 |
| BXRC-27E2000-D-7x-SE | 2700 | 80 | 500 | 2493 | 2244 | 31.8 | 15.9 | 157 |
| BXRC-27G20H0-B-7x-SE | 2700 | 90 | 450 | 2103 | 1892 | 34.8 | 15.7 | 134 |
| BXRC-27G20H0-C-7x-SE | 2700 | 90 | 630 | 2944 | 2649 | 34.8 | 21.9 | 134 |
| BXRC-27G20H0-D-7x-SE | 2700 | 90 | 500 | 2135 | 1921 | 31.8 | 15.9 | 134 |
| BXRC-27G2000-B-7x-SE | 2700 | 90 | 450 | 2026 | 1823 | 34.8 | 15.7 | 129 |
| BXRC-27G2000-C-7x-SE | 2700 | 90 | 630 | 2836 | 2552 | 34.8 | 21.9 | 129 |
| BXRC-27G2000-D-7x-SE | 2700 | 90 | 500 | 2057 | 1851 | 31.8 | 15.9 | 129 |
| BXRC-27H2000-B-7x-SE | 2700 | 97 | 450 | 1796 | 1616 | 34.8 | 15.7 | 115 |
| BXRC-27H2000-C-7x-SE | 2700 | 97 | 630 | 2514 | 2262 | 34.8 | 21.9 | 115 |
| BXRC-27H2000-D-7x-SE | 2700 | 97 | 500 | 1823 | 1641 | 31.8 | 15.9 | 115 |
| BXRC-30C2001-B-7x-SE | 3000 | 70 | 450 | 2732 | 2459 | 34.8 | 15.7 | 174 |
| BXRC-30C2001-C-7x-SE | 3000 | 70 | 630 | 3824 | 3442 | 34.8 | 21.9 | 174 |
| BXRC-30C2001-D-7x-SE | 3000 | 70 | 500 | 2774 | 2496 | 31.8 | 15.9 | 174 |
| BXRC-30E2000-B-7x-SE | 3000 | 80 | 450 | 2609 | 2348 | 34.8 | 15.7 | 167 |
| BXRC-30E2000-C-7x-SE | 3000 | 80 | 630 | 3653 | 3287 | 34.8 | 21.9 | 167 |
| BXRC-30E2000-D-7x-SE | 3000 | 80 | 500 | 2649 | 2384 | 31.8 | 15.9 | 167 |
| BXRC-30G20H0-B-7x-SE | 3000 | 90 | 450 | 2210 | 1989 | 34.8 | 15.7 | 141 |
| BXRC-30G20H0-C-7x-SE | 3000 | 90 | 630 | 3094 | 2785 | 34.8 | 21.9 | 141 |
| BXRC-30G20H0-D-7x-SE | 3000 | 90 | 500 | 2244 | 2019 | 31.8 | 15.9 | 141 |
| BXRC-30G2000-B-7x-SE | 3000 | 90 | 450 | 2118 | 1906 | 34.8 | 15.7 | 135 |
| BXRC-30G2000-C-7x-SE | 3000 | 90 | 630 | 2965 | 2669 | 34.8 | 21.9 | 135 |
| BXRC-30G2000-D-7x-SE | 3000 | 90 | 500 | 2150 | 1935 | 31.8 | 15.9 | 135 |
| BXRC-30G200C-B-7x-SE | 3000 | 90 | 450 | 2053 | 1848 | 34.8 | 15.8 | 130 |
| BXRC-30G200C-D-7x-SE | 3000 | 90 | 500 | 2072 | 1865 | 31.8 | 15.9 | 130 |
| BXRC-30H2000-B-7x-SE | 3000 | 97 | 450 | 1918 | 1727 | 34.8 | 15.7 | 123 |
| BXRC-30H2000-C-7x-SE | 3000 | 97 | 630 | 2686 | 2417 | 34.8 | 21.9 | 123 |
| BXRC-30H2000-D-7x-SE | 3000 | 97 | 500 | 1948 | 1753 | 31.8 | 15.9 | 123 |
| BXRC-30A2001-B-7x-SE8,9 | 3000 | 93 | 450 | 1903 | 1713 | 34.8 | 15.7 | 122 |
| BXRC-30A2001-C-7x-SE8,9 | 3000 | 93 | 630 | 2664 | 2398 | 34.8 | 21.9 | 122 |
| BXRC-30A2001-D-7x-SE8,9 | 3000 | 93 | 500 | 1932 | 1739 | 31.8 | 15.9 | 122 |
| Part Number | Nominal
CCT1 (K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical Pulsed
Flux4,5,6 Tc = 25ºC (lm) |
Minimum
Pulsed Flux6,7 Tc = 25ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-35E2000-B-7x-SE | 3500 | 80 | 450 | 2670 | 2403 | 34.8 | 15.7 | 171 |
| BXRC-35E2000-C-7x-SE | 3500 | 80 | 630 | 3738 | 3365 | 34.8 | 21.9 | 171 |
| BXRC-35E2000-D-7x-SE | 3500 | 80 | 500 | 2711 | 2440 | 31.8 | 15.9 | 171 |
| BXRC-35G2000-B-7x-SE | 3500 | 90 | 450 | 2195 | 1975 | 34.8 | 15.7 | 140 |
| BXRC-35G2000-C-7x-SE | 3500 | 90 | 630 | 3072 | 2765 | 34.8 | 21.9 | 140 |
| BXRC-35G2000-D-7x-SE | 3500 | 90 | 500 | 2228 | 2005 | 31.8 | 15.9 | 140 |
| BXRC-35A2001-B-7x-SE8,9 | 3500 | 93 | 450 | 2026 | 1823 | 34.8 | 15.7 | 129 |
| BXRC-35A2001-C-7x-SE8,9 | 3500 | 93 | 630 | 2836 | 2552 | 34.8 | 21.9 | 129 |
| BXRC-35A2001-D-7x-SE8,9 | 3500 | 93 | 500 | 2057 | 1851 | 31.8 | 15.9 | 129 |
| BXRC-40C2001-B-7x-SE | 4000 | 70 | 450 | 2808 | 2528 | 34.8 | 15.7 | 179 |
| BXRC-40C2001-C-7x-SE | 4000 | 70 | 630 | 3932 | 3539 | 34.8 | 21.9 | 179 |
| BXRC-40C2001-D-7x-SE | 4000 | 70 | 500 | 2852 | 2566 | 31.8 | 15.9 | 179 |
| BXRC-40E2000-B-7x-SE | 4000 | 80 | 450 | 2686 | 2417 | 34.8 | 15.7 | 172 |
| BXRC-40E2000-C-7x-SE | 4000 | 80 | 630 | 3760 | 3384 | 34.8 | 21.9 | 172 |
| BXRC-40E2000-D-7x-SE | 4000 | 80 | 500 | 2727 | 2454 | 31.8 | 15.9 | 172 |
| BXRC-40G2000-B-7x-SE | 4000 | 90 | 450 | 2241 | 2017 | 34.8 | 15.7 | 143 |
| BXRC-40G2000-C-7x-SE | 4000 | 90 | 630 | 3137 | 2823 | 34.8 | 21.9 | 143 |
| BXRC-40G2000-D-7x-SE | 4000 | 90 | 500 | 2275 | 2047 | 31.8 | 15.9 | 143 |
| BXRC-40H2000-B-7x-SE | 4000 | 97 | 450 | 2026 | 1823 | 34.8 | 15.7 | 129 |
| BXRC-40H2000-C-7x-SE | 4000 | 97 | 630 | 2836 | 2552 | 34.8 | 21.9 | 129 |
| BXRC-40H2000-D-7x-SE | 4000 | 97 | 500 | 2057 | 1851 | 31.8 | 15.9 | 129 |
| BXRC-40A2001-B-7x-SE8,9 | 4000 | 93 | 450 | 2195 | 1975 | 34.8 | 15.7 | 140 |
| BXRC-40A2001-C-7x-SE8,9 | 4000 | 93 | 630 | 3072 | 2765 | 34.8 | 21.9 | 140 |
| BXRC-40A2001-D-7x-SE8,9 | 4000 | 93 | 500 | 2228 | 2005 | 31.8 | 15.9 | 140 |
| BXRC-50C2001-B-7x-SE | 5000 | 70 | 450 | 2824 | 2541 | 34.8 | 15.7 | 180 |
| BXRC-50C2001-C-7x-SE | 5000 | 70 | 630 | 3953 | 3558 | 34.8 | 21.9 | 180 |
| BXRC-50C2001-D-7x-SE | 5000 | 70 | 500 | 2867 | 2580 | 31.8 | 15.9 | 180 |
| BXRC-50E2001-B-7x-SE | 5000 | 80 | 450 | 2716 | 2445 | 34.8 | 15.7 | 173 |
| BXRC-50E2001-C-7x-SE | 5000 | 80 | 630 | 3803 | 3423 | 34.8 | 21.9 | 173 |
| BXRC-50E2001-D-7x-SE | 5000 | 80 | 500 | 2758 | 2482 | 31.8 | 15.9 | 173 |
| BXRC-50G2001-B-7x-SE | 5000 | 90 | 450 | 2348 | 2113 | 34.8 | 15.7 | 150 |
| BXRC-50G2001-C-7x-SE | 5000 | 90 | 630 | 3287 | 2959 | 34.8 | 21.9 | 150 |
| BXRC-50G2001-D-7x-SE | 5000 | 90 | 500 | 2384 | 2146 | 31.8 | 15.9 | 150 |
| Part Number | Nominal
CCT1 (K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical Pulsed
Flux4,5,6 Tc = 25ºC (lm) |
Minimum
Pulsed Flux6,7 Tc = 25ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-57C2001-B-7x-SE | 5700 | 70 | 450 | 2747 | 2472 | 34.8 | 15.7 | 175 |
| BXRC-57C2001-C-7x-SE | 5700 | 70 | 630 | 3846 | 3461 | 34.8 | 21.9 | 175 |
| BXRC-57C2001-D-7x-SE | 5700 | 70 | 500 | 2789 | 2510 | 31.8 | 15.9 | 175 |
| BXRC-57E2001-B-7x-SE | 5700 | 80 | 450 | 2609 | 2348 | 34.8 | 15.7 | 167 |
| BXRC-57E2001-C-7x-SE | 5700 | 80 | 630 | 3653 | 3287 | 34.8 | 21.9 | 167 |
| BXRC-57E2001-D-7x-SE | 5700 | 80 | 500 | 2649 | 2384 | 31.8 | 15.9 | 167 |
| BXRC-65C2001-B-7x-SE | 6500 | 70 | 450 | 2747 | 2472 | 34.8 | 15.7 | 175 |
| BXRC-65C2001-C-7x-SE | 6500 | 70 | 630 | 3846 | 3461 | 34.8 | 21.9 | 175 |
| BXRC-65C2001-D-7x-SE | 6500 | 70 | 500 | 2789 | 2510 | 31.8 | 15.9 | 175 |
| BXRC-65E2001-B-7x-SE | 6500 | 80 | 450 | 2640 | 2376 | 34.8 | 15.7 | 169 |
| BXRC-65E2001-C-7x-SE | 6500 | 80 | 630 | 3696 | 3326 | 34.8 | 21.9 | 169 |
| BXRC-65E2001-D-7x-SE | 6500 | 80 | 500 | 2680 | 2412 | 31.8 | 15.9 | 169 |
Table 2: Selection Guide, Stabilized DC Performance (Tc = 70°C) 7,8
| Part Number | Nominal
CCT1 (K) |
GAI2 | CRI3 | Nominal
Drive Current4 (mA) |
Typical DC
Flux5,6 Tc = 70ºC (lm) |
Minimum DC
Flux6,9 Tc = 70ºC (lm) |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
| BXRC-30A2001-B-7x-SE | 3000 | 80 | 93 | 450 | 1770 | 1557 | 34.4 | 15.5 | 115 |
| BXRC-30A2001-C-7x-SE | 3000 | 80 | 93 | 630 | 2478 | 2180 | 34.4 | 21.6 | 115 |
| BXRC-30A2001-D-7x-SE | 3000 | 80 | 93 | 500 | 1797 | 1581 | 31.2 | 15.6 | 115 |
| BXRC-35A2001-B-7x-SE | 3500 | 80 | 93 | 450 | 1884 | 1658 | 34.4 | 15.5 | 122 |
| BXRC-35A2001-C-7x-SE | 3500 | 80 | 93 | 630 | 2638 | 2321 | 34.4 | 21.6 | 122 |
| BXRC-35A2001-D-7x-SE | 3500 | 80 | 93 | 500 | 1913 | 1683 | 31.2 | 15.6 | 123 |
| BXRC-40A2001-B-7x-SE | 4000 | 80 | 93 | 450 | 2041 | 1796 | 34.4 | 15.5 | 132 |
| BXRC-40A2001-C-7x-SE | 4000 | 80 | 93 | 630 | 2857 | 2514 | 34.4 | 21.6 | 132 |
| BXRC-40A2001-D-7x-SE | 4000 | 80 | 93 | 500 | 2072 | 1824 | 31.2 | 15.6 | 133 |
Table 3: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5
| Part Number | Nominal CCT1
(K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical DC
Flux4,5 |
Minimum DC
Flux6 |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
||
| T c | = 85ºC
(lm) |
T c | = 85ºC
(lm) |
|||||||
| BXRC-27E2000-B-7x-SE | 2700 | 80 | 450 | 2210 | 1989 | 33.9 | 15.3 | 145 | ||
| BXRC-27E2000-C-7x-SE | 2700 | 80 | 630 | 3094 | 2785 | 33.9 | 21.4 | 145 | ||
| BXRC-27E2000-D-7x-SE | 2700 | 80 | 500 | 2244 | 2019 | 30.9 | 15.5 | 145 | ||
| BXRC-27G20H0-B-7x-SE | 2700 | 90 | 450 | 1892 | 1703 | 33.9 | 15.3 | 124 | ||
| BXRC-27G20H0-C-7x-SE | 2700 | 90 | 630 | 2649 | 2384 | 33.9 | 21.4 | 124 | ||
| BXRC-27G20H0-D-7x-SE | 2700 | 90 | 500 | 1921 | 1729 | 30.9 | 15.5 | 124 | ||
| BXRC-27G2000-B-7x-SE | 2700 | 90 | 450 | 1823 | 1641 | 33.9 | 15.3 | 119 | ||
| BXRC-27G2000-C-7x-SE | 2700 | 90 | 630 | 2552 | 2297 | 33.9 | 21.4 | 119 | ||
| BXRC-27G2000-D-7x-SE | 2700 | 90 | 500 | 1851 | 1666 | 30.9 | 15.5 | 120 | ||
| BXRC-27H2000-B-7x-SE | 2700 | 97 | 450 | 1616 | 1454 | 33.9 | 15.3 | 106 | ||
| BXRC-27H2000-C-7x-SE | 2700 | 97 | 630 | 2262 | 2036 | 33.9 | 21.4 | 106 | ||
| BXRC-27H2000-D-7x-SE | 2700 | 97 | 500 | 1641 | 1477 | 30.9 | 15.5 | 106 | ||
| BXRC-30C2001-B-7x-SE | 3000 | 70 | 450 | 2459 | 2213 | 33.9 | 15.3 | 161 | ||
| BXRC-30C2001-C-7x-SE | 3000 | 70 | 630 | 3442 | 3098 | 33.9 | 21.4 | 161 | ||
| BXRC-30C2001-D-7x-SE | 3000 | 70 | 500 | 2496 | 2247 | 30.9 | 15.5 | 161 | ||
| BXRC-30E2000-B-7x-SE | 3000 | 80 | 450 | 2348 | 2113 | 33.9 | 15.3 | 154 | ||
| BXRC-30E2000-C-7x-SE | 3000 | 80 | 630 | 3287 | 2959 | 33.9 | 21.4 | 154 | ||
| BXRC-30E2000-D-7x-SE | 3000 | 80 | 500 | 2384 | 2146 | 30.9 | 15.5 | 154 | ||
| BXRC-30G20H0-B-7x-SE | 3000 | 90 | 450 | 1989 | 1790 | 33.9 | 15.3 | 130 | ||
| BXRC-30G20H0-C-7x-SE | 3000 | 90 | 630 | 2785 | 2506 | 33.9 | 21.4 | 130 | ||
| BXRC-30G20H0-D-7x-SE | 3000 | 90 | 500 | 2019 | 1817 | 30.9 | 15.5 | 131 | ||
| BXRC-30G2000-B-7x-SE | 3000 | 90 | 450 | 1906 | 1715 | 33.9 | 15.3 | 125 | ||
| BXRC-30G2000-C-7x-SE | 3000 | 90 | 630 | 2669 | 2402 | 33.9 | 21.4 | 125 | ||
| BXRC-30G2000-D-7x-SE | 3000 | 90 | 500 | 1935 | 1742 | 30.9 | 15.5 | 125 | ||
| BXRC-30G200C-B-7x-SE | 3000 | 90 | 450 | 1848 | 1663 | 33.9 | 15.3 | 121 | ||
| BXRC-30G200C-D-7x-SE | 3000 | 90 | 500 | 1865 | 1679 | 30.9 | 15.5 | 121 | ||
| BXRC-30H2000-B-7x-SE | 3000 | 97 | 450 | 1727 | 1554 | 33.9 | 15.3 | 113 | ||
| BXRC-30H2000-C-7x-SE | 3000 | 97 | 630 | 2417 | 2175 | 33.9 | 21.4 | 113 | ||
| BXRC-30H2000-D-7x-SE | 3000 | 97 | 500 | 1753 | 1578 | 30.9 | 15.5 | 113 | ||
| BXRC-30A2001-B-7x-SE7,8 | 3000 | 93 | 450 | 1713 | 1541 | 33.9 | 15.3 | 112 | ||
| BXRC-30A2001-C-7x-SE7,8 | 3000 | 93 | 630 | 2398 | 2158 | 33.9 | 21.4 | 112 | ||
| BXRC-30A2001-D-7x-SE7,8 | 3000 | 93 | 500 | 1739 | 1565 | 30.9 | 15.5 | 112 | ||
| Part Number | Nominal CCT1
(K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical DC
Flux4,5 |
Minimum DC
Flux6 |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
||
| T c | = 85ºC
(lm) |
T c | = 85ºC
(lm) |
|||||||
| BXRC-35E2000-B-7x-SE | 3500 | 80 | 450 | 2403 | 2163 | 33.9 | 15.3 | 158 | ||
| BXRC-35E2000-C-7x-SE | 3500 | 80 | 630 | 3365 | 3028 | 33.9 | 21.4 | 158 | ||
| BXRC-35E2000-D-7x-SE | 3500 | 80 | 500 | 2440 | 2196 | 30.9 | 15.5 | 158 | ||
| BXRC-35G2000-B-7x-SE | 3500 | 90 | 450 | 1975 | 1778 | 33.9 | 15.3 | 129 | ||
| BXRC-35G2000-C-7x-SE | 3500 | 90 | 630 | 2765 | 2489 | 33.9 | 21.4 | 129 | ||
| BXRC-35G2000-D-7x-SE | 3500 | 90 | 500 | 2005 | 1805 | 30.9 | 15.5 | 130 | ||
| BXRC-35A2001-B-7x-SE7,8 | 3500 | 93 | 450 | 1823 | 1641 | 33.9 | 15.3 | 119 | ||
| BXRC-35A2001-C-7x-SE7,8 | 3500 | 93 | 630 | 2552 | 2297 | 33.9 | 21.4 | 119 | ||
| BXRC-35A2001-D-7x-SE7,8 | 3500 | 93 | 500 | 1851 | 1666 | 30.9 | 15.5 | 120 | ||
| BXRC-40C2001-B-7x-SE | 4000 | 70 | 450 | 25 8-SE |
2275 | 33.9 | 15.3 | 166 | ||
| BXRC-40C2001-C-7x-SE | 4000 | 70 | 630 | 3539 | 3185 | 33.9 | 21.4 | 166 | ||
| BXRC-40C2001-D-7x-SE | 4000 | 70 | 500 | 2566 | 2310 | 30.9 | 15.5 | 166 | ||
| BXRC-40E2000-B-7x-SE | 4000 | 80 | 450 | 2417 | 2175 | 33.9 | 15.3 | 158 | ||
| BXRC-40E2000-C-7x-SE | 4000 | 80 | 630 | 3384 | 3046 | 33.9 | 21.4 | 158 | ||
| BXRC-40E2000-D-7x-SE | 4000 | 80 | 500 | 2454 | 2209 | 30.9 | 15.5 | 159 | ||
| BXRC-40G2000-B-7x-SE | 4000 | 90 | 450 | 2017 | 1815 | 33.9 | 15.3 | 132 | ||
| BXRC-40G2000-C-7x-SE | 4000 | 90 | 630 | 2823 | 2541 | 33.9 | 21.4 | 132 | ||
| BXRC-40G2000-D-7x-SE | 4000 | 90 | 500 | 2047 | 1843 | 30.9 | 15.5 | 132 | ||
| BXRC-40H2000-B-7x-SE | 4000 | 97 | 450 | 1823 | 1641 | 33.9 | 15.3 | 119 | ||
| BXRC-40H2000-C-7x-SE | 4000 | 97 | 630 | 2552 | 2297 | 33.9 | 21.4 | 119 | ||
| BXRC-40H2000-D-7x-SE | 4000 | 97 | 500 | 1851 | 1666 | 30.9 | 15.5 | 120 | ||
| BXRC-40A2001-B-7x-SE7,8 | 4000 | 93 | 450 | 1975 | 1778 | 33.9 | 15.3 | 129 | ||
| BXRC-40A2001-C-7x-SE7,8 | 4000 | 93 | 630 | 2765 | 2489 | 33.9 | 21.4 | 129 | ||
| BXRC-40A2001-D-7x-SE7,8 | 4000 | 93 | 500 | 2005 | 1805 | 30.9 | 15.5 | 130 | ||
| BXRC-50C2001-B-7x-SE | 5000 | 70 | 450 | 2541 | 2287 | 33.9 | 15.3 | 167 | ||
| BXRC-50C2001-C-7x-SE | 5000 | 70 | 630 | 3558 | 3202 | 33.9 | 21.4 | 167 | ||
| BXRC-50C2001-D-7x-SE | 5000 | 70 | 500 | 2580 | 2322 | 30.9 | 15.5 | 167 | ||
| BXRC-50E2001-B-7x-SE | 5000 | 80 | 450 | 2445 | 2200 | 33.9 | 15.3 | 160 | ||
| BXRC-50E2001-C-7x-SE | 5000 | 80 | 630 | 3423 | 3080 | 33.9 | 21.4 | 160 | ||
| BXRC-50E2001-D-7x-SE | 5000 | 80 | 500 | 2482 | 2234 | 30.9 | 15.5 | 161 | ||
| BXRC-50G2001-B-7x-SE | 5000 | 90 | 450 | 2113 | 1902 | 33.9 | 15.3 | 139 | ||
| BXRC-50G2001-C-7x-SE | 5000 | 90 | 630 | 2959 | 2663 | 33.9 | 21.4 | 139 | ||
| BXRC-50G2001-D-7x-SE | 5000 | 90 | 500 | 2146 | 1931 | 30.9 | 15.5 | 139 | ||
| Part Number | Nominal CCT1
(K) |
CRI2 | Nominal Drive
Current3 (mA) |
Typical DC
Flux4,5 |
Minimum DC
Flux6 |
Typical Vf
(V) |
Typical
Power (W) |
Typical
Efficacy (lm/W) |
||
| T c | = 85ºC
(lm) |
T c | = 85ºC
(lm) |
|||||||
| BXRC-57C2001-B-7x-SE | 5700 | 70 | 450 | 2472 | 2225 | 33.9 | 15.3 | 162 | ||
| BXRC-57C2001-C-7x-SE | 5700 | 70 | 630 | 3461 | 3115 | 33.9 | 21.4 | 162 | ||
| BXRC-57C2001-D-7x-SE | 5700 | 70 | 500 | 2510 | 2259 | 30.9 | 15.5 | 162 | ||
| BXRC-57E2001-B-7x-SE | 5700 | 80 | 450 | 2348 | 2113 | 33.9 | 15.3 | 154 | ||
| BXRC-57E2001-C-7x-SE | 5700 | 80 | 630 | 3287 | 2959 | 33.9 | 21.4 | 154 | ||
| BXRC-57E2001-D-7x-SE | 5700 | 80 | 500 | 2384 | 2146 | 30.9 | 15.5 | 154 | ||
| BXRC-65C2001-B-7x-SE | 6500 | 70 | 450 | 2472 | 2225 | 33.9 | 15.3 | 162 | ||
| BXRC-65C2001-C-7x-SE | 6500 | 70 | 630 | 3461 | 3115 | 33.9 | 21.4 | 162 | ||
| BXRC-65C2001-D-7x-SE | 6500 | 70 | 500 | 2510 | 2259 | 30.9 | 15.5 | 162 | ||
| BXRC-65E2001-B-7x-SE | 6500 | 80 | 450 | 2376 | 2138 | 33.9 | 15.3 | 156 | ||
| BXRC-65E2001-C-7x-SE | 6500 | 80 | 630 | 3326 | 2993 | 33.9 | 21.4 | 156 | ||
| BXRC-65E2001-D-7x-SE | 6500 | 80 | 500 | 2412 | 2171 | 30.9 | 15.5 | 156 | ||
Table 4: Part numbers registered in European Product Registry for Energy Labeling
| PART NUMBER1 | CCT
(K) |
CRI | Current2
(mA) |
Vf
(V) |
Useful
flux3 (Φuse) at 85C (lm) |
Pow-
er (W) |
Efficacy
(lm/W) |
Energy
efficiency class4
|
Regis-
tration No |
| BXRC-27E2000-B-73-SE | 2700 | 80 | 900 | 35.2 | 3477 | 31.7 | 110 | E | 872491 |
| BXRC-27E2000-C-73-SE | 2700 | 80 | 1260 | 35.2 | 4868 | 44.4 | 110 | E | 872496 |
| BXRC-27E2000-D-73-SE | 2700 | 80 | 1000 | 33.6 | 3568 | 33.6 | 106 | E | 872501 |
| BXRC-27G20H0-B-73-SE | 2700 | 90 | 900 | 35.2 | 2977 | 31.7 | 94 | F | 872591 |
| BXRC-27G20H0-C-73-SE | 2700 | 90 | 1260 | 35.2 | 4168 | 44.4 | 94 | F | 872595 |
| BXRC-27G20H0-D-73-SE | 2700 | 90 | 1000 | 33.6 | 3055 | 33.6 | 91 | F | 872599 |
| BXRC-27G2000-B-73-SE | 2700 | 90 | 900 | 35.2 | 2869 | 31.7 | 90 | F | 872577 |
| BXRC-27G2000-C-73-SE | 2700 | 90 | 1260 | 35.2 | 4016 | 44.4 | 90 | F | 872582 |
| BXRC-27G2000-D-73-SE | 2700 | 90 | 1000 | 33.6 | 2944 | 33.6 | 88 | F | 872587 |
| BXRC-27H2000-B-73-SE | 2700 | 95 | 900 | 35.2 | 2543 | 31.7 | 80 | F | 872650 |
| BXRC-27H2000-C-73-SE | 2700 | 95 | 1260 | 35.2 | 3560 | 44.4 | 80 | F | 872654 |
| BXRC-27H2000-D-73-SE | 2700 | 95 | 1000 | 33.6 | 2609 | 33.6 | 78 | G | 872658 |
| BXRC-30C2001-B-73-SE | 3000 | 70 | 900 | 35.2 | 3868 | 31.7 | 122 | E | 872728 |
| BXRC-30C2001-C-73-SE | 3000 | 70 | 1260 | 35.2 | 5416 | 44.4 | 122 | E | 872734 |
| BXRC-30C2001-D-73-SE | 3000 | 70 | 1000 | 33.6 | 3969 | 33.6 | 118 | E | 872740 |
| BXRC-30E2000-B-73-SE | 3000 | 80 | 900 | 35.2 | 3694 | 31.7 | 116 | E | 872797 |
| BXRC-30E2000-C-73-SE | 3000 | 80 | 1260 | 35.2 | 5172 | 44.4 | 116 | E | 872802 |
| BXRC-30E2000-D-73-SE | 3000 | 80 | 1000 | 33.6 | 3791 | 33.6 | 113 | E | 872807 |
| PART NUMBER1 | CCT
(K) |
CRI | Current2
(mA) |
Vf
(V) |
Useful
flux3 (Φuse) at 85C (lm) |
Pow-
er (W) |
Efficacy
(lm/W) |
Energy
efficiency class4
|
Regis-
tration No |
| BXRC-30G20H0-B-73-SE | 3000 | 90 | 900 | 35.2 | 3129 | 31.7 | 99 | F | 872908 |
| BXRC-30G20H0-C-73-SE | 3000 | 90 | 1260 | 35.2 | 4381 | 44.4 | 99 | F | 872912 |
| BXRC-30G20H0-D-73-SE | 3000 | 90 | 1000 | 33.6 | 3211 | 33.6 | 96 | F | 872916 |
| BXRC-30G2000-B-73-SE | 3000 | 90 | 900 | 35.2 | 2999 | 31.7 | 95 | F | 872887 |
| BXRC-30G2000-C-73-SE | 3000 | 90 | 1260 | 35.2 | 4199 | 44.4 | 95 | F | 872892 |
| BXRC-30G2000-D-73-SE | 3000 | 90 | 1000 | 33.6 | 3077 | 33.6 | 92 | F | 872897 |
| BXRC-30G200C-B-73-SE | 3000 | 90 | 900 | 35.2 | 2999 | 31.7 | 95 | F | 872901 |
| BXRC-30G200C-D-73-SE | 3000 | 90 | 1000 | 33.6 | 3077 | 33.6 | 92 | F | 872903 |
| BXRC-30H2000-B-73-SE | 3000 | 95 | 900 | 35.2 | 2717 | 31.7 | 86 | F | 872973 |
| BXRC-30H2000-C-73-SE | 3000 | 95 | 1260 | 35.2 | 3803 | 44.4 | 86 | F | 872977 |
| BXRC-30H2000-D-73-SE | 3000 | 95 | 1000 | 33.6 | 2787 | 33.6 | 83 | F | 872981 |
| BXRC-30A2001-B-73-SE | 3000 | 90 | 900 | 35.2 | 2695 | 31.7 | 85 | F | 872685 |
| BXRC-30A2001-C-73-SE | 3000 | 90 | 1260 | 35.2 | 3773 | 44.4 | 85 | F | 872686 |
| BXRC-30A2001-D-73-SE | 3000 | 90 | 1000 | 33.6 | 2765 | 33.6 | 82 | F | 872687 |
| BXRC-35E2000-B-73-SE | 3500 | 80 | 900 | 35.2 | 3781 | 31.7 | 119 | E | 873044 |
| BXRC-35E2000-C-73-SE | 3500 | 80 | 1260 | 35.2 | 5294 | 44.4 | 119 | E | 873049 |
| BXRC-35E2000-D-73-SE | 3500 | 80 | 1000 | 33.6 | 3880 | 33.6 | 115 | E | 873054 |
| BXRC-35G2000-B-73-SE | 3500 | 90 | 900 | 35.2 | 3108 | 31.7 | 98 | F | 873106 |
| BXRC-35G2000-C-73-SE | 3500 | 90 | 1260 | 35.2 | 4351 | 44.4 | 98 | F | 873111 |
| BXRC-35G2000-D-73-SE | 3500 | 90 | 1000 | 33.6 | 3189 | 33.6 | 95 | F | 873116 |
| BXRC-35A2001-B-73-SE | 3500 | 90 | 900 | 35.2 | 2869 | 31.7 | 90 | F | 873004 |
| BXRC-35A2001-C-73-SE | 3500 | 90 | 1260 | 35.2 | 4016 | 44.4 | 90 | F | 873005 |
| BXRC-35A2001-D-73-SE | 3500 | 90 | 1000 | 33.6 | 2944 | 33.6 | 88 | F | 873006 |
| BXRC-40C2001-B-73-SE | 4000 | 70 | 900 | 35.2 | 3977 | 31.7 | 125 | D | 873191 |
| BXRC-40C2001-C-73-SE | 4000 | 70 | 1260 | 35.2 | 5568 | 44.4 | 125 | D | 873197 |
| BXRC-40C2001-D-73-SE | 4000 | 70 | 1000 | 33.6 | 4081 | 33.6 | 121 | E | 873203 |
| BXRC-40E2000-B-73-SE | 4000 | 80 | 900 | 35.2 | 3803 | 31.7 | 120 | E | 873260 |
| BXRC-40E2000-C-73-SE | 4000 | 80 | 1260 | 35.2 | 5324 | 44.4 | 120 | E | 873265 |
| BXRC-40E2000-D-73-SE | 4000 | 80 | 1000 | 33.6 | 3902 | 33.6 | 116 | E | 873270 |
| BXRC-40G2000-B-73-SE | 4000 | 90 | 900 | 35.2 | 3173 | 31.7 | 100 | F | 873322 |
| BXRC-40G2000-C-73-SE | 4000 | 90 | 1260 | 35.2 | 4442 | 44.4 | 100 | F | 873327 |
| BXRC-40G2000-D-73-SE | 4000 | 90 | 1000 | 33.6 | 3256 | 33.6 | 97 | F | 873332 |
| BXRC-40H2000-B-73-SE | 4000 | 95 | 900 | 35.2 | 2869 | 31.7 | 90 | F | 873359 |
| BXRC-40H2000-C-73-SE | 4000 | 95 | 1260 | 35.2 | 4016 | 44.4 | 90 | F | 873361 |
| BXRC-40H2000-D-73-SE | 4000 | 95 | 1000 | 33.6 | 2944 | 33.6 | 88 | F | 873363 |
| PART NUMBER1 | CCT
(K) |
CRI | Current2
(mA) |
Vf
(V) |
Useful
flux3 (Φuse) at 85C (lm) |
Pow-
er (W) |
Efficacy
(lm/W) |
Energy
efficiency class4
|
Regis-
tration No |
| BXRC-40A2001-B-73-SE | 4000 | 90 | 900 | 35.2 | 3108 | 31.7 | 98 | F | 873148 |
| BXRC-40A2001-C-73-SE | 4000 | 90 | 1260 | 35.2 | 4351 | 44.4 | 98 | F | 873149 |
| BXRC-40A2001-D-73-SE | 4000 | 90 | 1000 | 33.6 | 3189 | 33.6 | 95 | F | 873150 |
| BXRC-50C2001-B-74-SE | 5000 | 70 | 900 | 35.2 | 3999 | 31.7 | 126 | D | 873397 |
| BXRC-50C2001-C-74-SE | 5000 | 70 | 1260 | 35.2 | 5598 | 44.4 | 126 | D | 873401 |
| BXRC-50C2001-D-74-SE | 5000 | 70 | 1000 | 33.6 | 4103 | 33.6 | 122 | E | 873405 |
| BXRC-50E2001-B-74-SE | 5000 | 80 | 900 | 35.2 | 3847 | 31.7 | 121 | E | 873445 |
| BXRC-50E2001-C-74-SE | 5000 | 80 | 1260 | 35.2 | 5385 | 44.4 | 121 | E | 873449 |
| BXRC-50E2001-D-74-SE | 5000 | 80 | 1000 | 33.6 | 3947 | 33.6 | 117 | E | 873453 |
| BXRC-50G2001-B-74-SE | 5000 | 90 | 900 | 35.2 | 3325 | 31.7 | 105 | E | 873493 |
| BXRC-50G2001-C-74-SE | 5000 | 90 | 1260 | 35.2 | 4655 | 44.4 | 105 | E | 873497 |
| BXRC-50G2001-D-74-SE | 5000 | 90 | 1000 | 33.6 | 3412 | 33.6 | 102 | E | 873501 |
| BXRC-57C2001-B-74-SE | 5700 | 70 | 900 | 35.2 | 3890 | 31.7 | 123 | E | 873579 |
| BXRC-57C2001-C-74-SE | 5700 | 70 | 1260 | 35.2 | 5446 | 44.4 | 123 | E | 873583 |
| BXRC-57C2001-D-74-SE | 5700 | 70 | 1000 | 33.6 | 3992 | 33.6 | 119 | E | 873587 |
| BXRC-57E2001-B-74-SE | 5700 | 80 | 900 | 35.2 | 3694 | 31.7 | 116 | E | 873627 |
| BXRC-57E2001-C-74-SE | 5700 | 80 | 1260 | 35.2 | 5172 | 44.4 | 116 | E | 873631 |
| BXRC-57E2001-D-74-SE | 5700 | 80 | 1000 | 33.6 | 3791 | 33.6 | 113 | E | 873635 |
| BXRC-65C2001-B-74-SE | 6500 | 70 | 900 | 35.2 | 3890 | 31.7 | 123 | E | 873675 |
| BXRC-65C2001-C-74-SE | 6500 | 70 | 1260 | 35.2 | 5446 | 44.4 | 123 | E | 873679 |
| BXRC-65C2001-D-74-SE | 6500 | 70 | 1000 | 33.6 | 3992 | 33.6 | 119 | E | 873683 |
| BXRC-65E2001-B-74-SE | 6500 | 80 | 900 | 35.2 | 3738 | 31.7 | 118 | E | 873723 |
| BXRC-65E2001-C-74-SE | 6500 | 80 | 1260 | 35.2 | 5233 | 44.4 | 118 | E | 873727 |
| BXRC-65E2001-D-74-SE | 6500 | 80 | 1000 | 33.6 | 3836 | 33.6 | 114 | E | 873731 |
