Bridgelux® Vero® Series

Categories: ,

Description

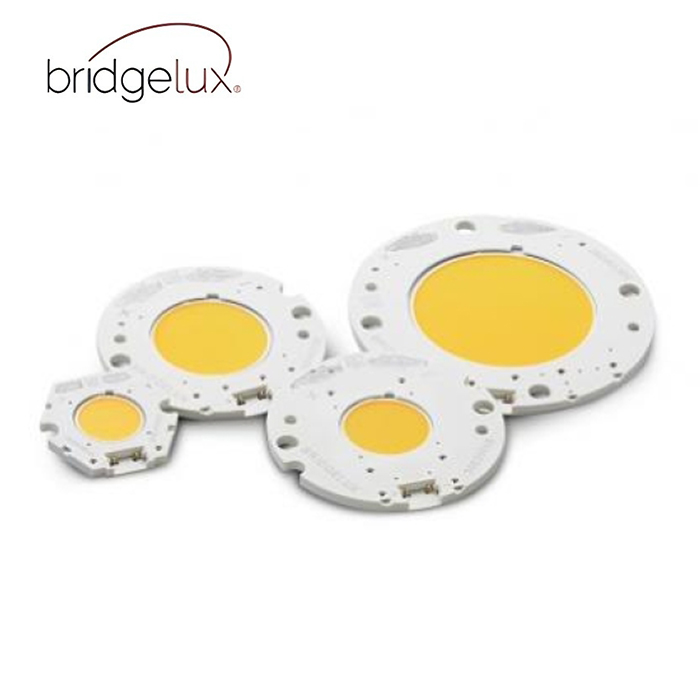

Vero® Series

Vero Series is our flagship LED array product with Bridgelux technology that gives customers a competitive advantage. Vero simplifies luminaire design and manufacturing by integrating a holder into the array, along with a port for a wire harness, so soldering is not required.

Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents. The platform delivers high lumen density for exceptional beam control and precision lighting, along with 2 and 3 SDCM color control standard for clean, uniform illumination.

Features

  • Onboard connector port
  • Market-leading efficacy, up to 185 lm/W typical
  • 1,000 to 21,000 typical lumen packages
  • 36V across a variety of form factors
  • Expansive color portfolio: 65-97 CRI, Class A and application-specific color points
  • Thermally isolated solder pads
  • Select SKUs meet DLC Premium (Outdoor-Mid Output) requirements under certain system conditions

Benefits

  • Solderless connectivity enables plug & play installation
  • True color reproduction
  • Pure, bright and consistent white light
  • Industry standard electrical compatibility
  • General lighting to high-end retail & luxury applications
  • Facilitates soldering
Product Family Product Part Number Doc Number Gen CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRC Vero Vero 10B BXRC-xxx10Fx-B-9x DS1311 9 2700 – 5000 80 2,3,4 1320 200 33.6 196 10
BXRC Vero Vero 10C BXRC-xxx10Fx-C-9x DS1311 9 2700 – 5000 80 2,3,4 1790 300 33.6 193 10
BXRC Vero Vero 13B BXRC-xxx20Fx-B-9x DS1312 9 2700 – 5000 80 2,3 2350 350 33.8 199 13.3
BXRC Vero Vero 13C BXRC-xxx20Fx-C-9x DS1312 9 2700 – 5000 80 3,4 3350 500 33.8 198 13.3
BXRC Vero Vero 18B BXRC-xxE40F0-B-9x DS1313 9 2700 – 5000 80 2,3,4 4720 700 34 198 36.2
BXRC Vero Vero 18C BXRC-xxE40F0-C-9x DS1313 9 2700 – 5000 80 2,3,4 6088 900 33.9 200 36.2
BXRC Vero Vero 10B BXRC-xxx100x-B-8x DS420 8 2700-6500 70, 80, 90, 97 2, 3 , 4 1215 200 34.2 178 10
BXRC Vero Vero 10C BXRC-xxx100x-C-8x DS420 8 2700-6500 70, 80, 90, 97 2, 3 , 4 1640 300 30.7 178 10
BXRC Vero Vero 10D BXRC-xxx100x-D-8x DS420 8 2700-6500 70, 80, 90, 97 2, 3 , 4 1110 250 24.9 178 10
BXRC Vero Vero 13B BXRC-xxx200x-B-8x DS421 8 2700-6500 70, 80, 90, 97 2, 3 , 4 2090 350 33.4 178 13
BXRC Vero Vero 13C BXRC-xxx200x-C-8x DS421 8 2700-6500 70, 80, 90, 97 2, 3 , 4 2990 500 33.4 178 13
BXRC Vero Vero 13D BXRC-xxx200x-D-8x DS421 8 2700-6500 70, 80, 90, 97 2, 3 , 4 2200 400 30.9 178 13
BXRC Vero Vero 18B BXRC-xxx400x-B-8x DS422 8 2700-6500 70, 80, 90, 97 2, 3 , 4 4280 700 33.9 180 18
BXRC Vero Vero 18C BXRC-xxx400x-C-8x DS422 8 2700-6500 70, 80, 90, 97 2, 3 , 4 6400 1050 33.9 180 18
BXRC Vero Vero 18D BXRC-xxx400x-D-8x DS422 8 2700-6500 70, 80, 90, 97 2, 3 , 4 4310 850 28.2 180 18
BXRC Vero Vero 29B BXRC-xxx10Kx-B-8x DS423 8 2700-6500 70, 80, 90, 97 2, 3 , 4 13010 1400 50.2 185 29
BXRC Vero Vero 29C BXRC-xxx10Kx-C-8x DS423 8 2700-6500 70, 80, 90, 97 2, 3 , 4 16040 1300 66.7 185 29
BXRC Vero Vero 29D BXRC-xxx10Kx-D-8x DS423 8 2700-6500 70, 80, 90, 97 2, 3 , 4 11445 1700 36.4 185 29
BXRC Vero Vero 10B BXRC-xxx100x-B-7x DS90 7 2700-6500 70, 80, 90, 93, 97 2, 3 , 4 1549 270 35 165 10
BXRC Vero Vero 10C BXRC-xxx100x-C-7x DS90 7 2700-6500 70, 80, 90, 93, 97 2, 3 , 4 2066 360 35 165 10
BXRC Vero Vero 10D BXRC-xxx100x-D-7x DS90 7 2700-6500 70, 80, 90, 93, 97 2, 3 , 4 1501 350 26 165 10
BXRC Vero Vero 13B BXRC-xxx200x-B-7x DS91 7 2700-6500 70, 80, 90, 93, 97 2, 3 , 4 2662 450 35 170 13
BXRC Vero Vero 13C BXRC-xxx200x-C-7x DS91 7 2700-6500 70, 80, 90, 93, 97 2, 3 , 4 3729 630 35 170 13
BXRC Vero Vero 13D BXRC-xxx200x-D-7x DS91 7 2700-6500 70, 80, 90, 93, 97 2, 3 , 4 2703 500 31.8 170 13
BXRC Vero Vero 18B BXRC-xxx400x-B-7x DS92 7 2700-6500 70, 80, 90, 93, 97 2, 3 , 4 5324 900 35 170 18
BXRC Vero Vero 18C BXRC-xxx400x-C-7x DS92 7 2700-6500 70, 80, 90, 93, 97 2, 3 , 4 6922 1170 35 170 18
