Bridgelux® Vero® Series Gen 8 Vero® 10 Array

Categories: ,

Description

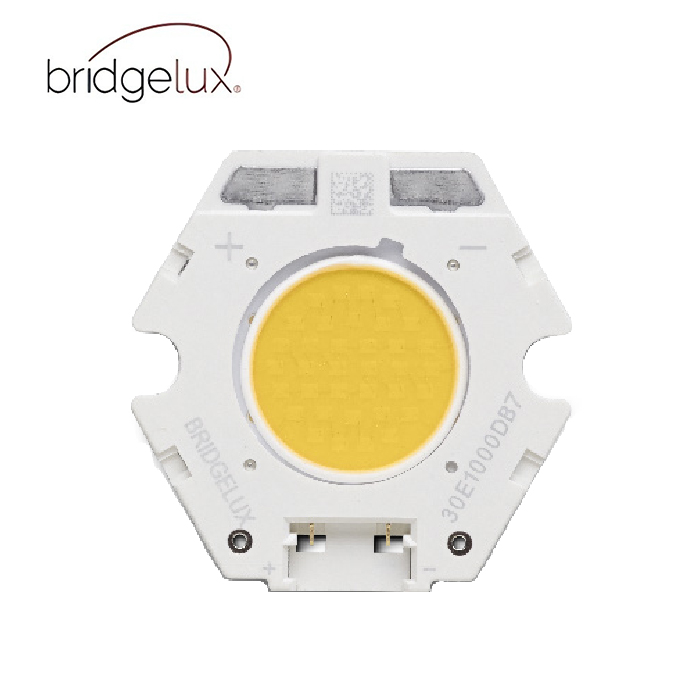

Bridgelux® Gen 8 Vero® 10 Array

The Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation, simplifying the luminaire design and manufacturing processes. Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents.

Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color control standard for clean and consistent uniform lighting. Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting features for plug-and-play installation.

Features
• On board connector port
• Top side part number markings
• Efficacy of 178 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes (backside marking)
• Thermally isolated solder pads
• 10-Year warranty

Benefits
• Solder free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Enhanced ease of use and installation
• Design with confidence

Product Family Product Part Number Doc Number Gen CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRC Vero Vero 10B BXRC-xxx100x-B-8x DS420 8 2700-6500 70, 80, 90, 97 2, 3 , 4 1215 200 34.2 178 10
BXRC Vero Vero 10C BXRC-xxx100x-C-8x DS420 8 2700-6500 70, 80, 90, 97 2, 3 , 4 1640 300 30.7 178 10
BXRC Vero Vero 10D BXRC-xxx100x-D-8x DS420 8 2700-6500 70, 80, 90, 97 2, 3 , 4 1110 250 24.9 178 10



product-860-701



Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRC-27E1000-B-8x 2700 80 200 1145 1008 34.2 6.8 167
BXRC-27E1000-C-8x 2700 80 300 1544 1359 30.7 9.2 168
BXRC-27E1000-D-8x 2700 80 250 1043 918 24.9 6.2 168
BXRC-27G1000-B-8x 2700 90 200 945 832 34.2 6.8 138
BXRC-27G1000-C-8x 2700 90 300 1274 1121 30.7 9.2 138
BXRC-27G1000-D-8x 2700 90 250 860 757 24.9 6.2 138
BXRC-27G10H0-B-8x 2700 90 200 986 867 34.2 6.8 144
BXRC-27G10H0-C-8x 2700 90 300 1329 1170 30.7 9.2 144
BXRC-27G10H0-D-8x 2700 90 250 897 790 24.9 6.2 144
BXRC-27H1000-B-8x 2700 97 200 838 737 34.2 6.8 122
BXRC-27H1000-C-8x 2700 97 300 1129 994 30.7 9.2 123
BXRC-27H1000-D-8x 2700 97 250 763 671 24.9 6.2 123
BXRC-30C1001-B-8x 3000 70 200 1274 1121 34.2 6.8 186
BXRC-30C1001-C-8x 3000 70 300 1718 1512 30.7 9.2 187
BXRC-30C1001-D-8x 3000 70 250 1160 1021 24.9 6.2 186
BXRC-30E1000-B-8x 3000 80 200 1217 1071 34.2 6.8 178
BXRC-30E1000-C-8x 3000 80 300 1641 1444 30.7 9.2 178
BXRC-30E1000-D-8x 3000 80 250 1108 975 24.9 6.2 178
BXRC-30G1000-B-8x 3000 90 200 988 869 34.2 6.8 144
BXRC-30G1000-C-8x 3000 90 300 1332 1172 30.7 9.2 145
BXRC-30G1000-D-8x 3000 90 250 899 792 24.9 6.2 144
BXRC-30G10H0-B-8x 3000 90 200 1034 910 34.2 6.8 151
BXRC-30G10H0-C-8x 3000 90 300 1395 1227 30.7 9.2 151
BXRC-30G10H0-D-8x 3000 90 250 942 829 24.9 6.2 151
BXRC-30H1000-B-8x 3000 97 200 895 787 34.2 6.8 131
BXRC-30H1000-C-8x 3000 97 300 1207 1062 30.7 9.2 131
BXRC-30H1000-D-8x 3000 97 250 815 717 24.9 6.2 131
BXRC-35E1000-B-8x 3500 80 200 1246 1096 34.2 6.8 182
BXRC-35E1000-C-8x 3500 80 300 1680 1478 30.7 9.2 182
BXRC-35E1000-D-8x 3500 80 250 1134 998 24.9 6.2 182
BXRC-35G1000-B-8x 3500 90 200 1024 901 34.2 6.8 150
BXRC-35G1000-C-8x 3500 90 300 1380 1215 30.7 9.2 150
BXRC-35G1000-D-8x 3500 90 250 932 820 24.9 6.2 150



Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRC-40C1001-B-8x 4000 70 200 1310 1153 34.2 6.8 192
BXRC-40C1001-C-8x 4000 70 300 1766 1555 30.7 9.2 192
BXRC-40C1001-D-8x 4000 70 250 1193 1050 24.9 6.2 192
BXRC-40E1000-B-8x 4000 80 200 1253 1102 34.2 6.8 183
BXRC-40E1000-C-8x 4000 80 300 1689 1487 30.7 9.2 183
BXRC-40E1000-D-8x 4000 80 250 1141 1004 24.9 6.2 183
BXRC-40G1000-B-8x 4000 90 200 1045 920 34.2 6.8 153
BXRC-40G1000-C-8x 4000 90 300 1409 1240 30.7 9.2 153
BXRC-40G1000-D-8x 4000 90 250 952 837 24.9 6.2 153
BXRC-50C1001-B-8x 5000 70 200 1317 1159 34.2 6.8 193
BXRC-50C1001-C-8x 5000 70 300 1776 1563 30.7 9.2 193
BXRC-50C1001-D-8x 5000 70 250 1199 1055 24.9 6.2 193
BXRC-50E1001-B-8x 5000 80 200 1267 1115 34.2 6.8 185
BXRC-50E1001-C-8x 5000 80 300 1709 1504 30.7 9.2 186
BXRC-50E1001-D-8x 5000 80 250 1154 1015 24.9 6.2 185
BXRC-50G1001-B-8x 5000 90 200 1095 964 34.2 6.8 160
BXRC-50G1001-C-8x 5000 90 300 1477 1300 30.7 9.2 160
BXRC-50G1001-D-8x 5000 90 250 997 878 24.9 6.2 160
BXRC-57C1001-B-8x 5700 70 200 1281 1128 34.2 6.8 187
BXRC-57C1001-C-8x 5700 70 300 1728 1521 30.7 9.2 188
BXRC-57C1001-D-8x 5700 70 250 1167 1027 24.9 6.2 187
BXRC-57E1001-B-8x 5700 80 200 1217 1071 34.2 6.8 178
BXRC-57E1001-C-8x 5700 80 300 1641 1444 30.7 9.2 178
BXRC-57E1001-D-8x 5700 80 250 1108 975 24.9 6.2 178
BXRC-65C1001-B-8x 6500 70 200 1281 1128 34.2 6.8 187
BXRC-65C1001-C-8x 6500 70 300 1728 1521 30.7 9.2 188
BXRC-65C1001-D-8x 6500 70 250 1167 1027 24.9 6.2 187
BXRC-65E1001-B-8x 6500 80 200 1231 1084 34.2 6.8 180
BXRC-65E1001-C-8x 6500 80 300 1660 1461 30.7 9.2 180
BXRC-65E1001-D-8x 6500 80 250 1121 987 24.9 6.2 180



Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85ºC

(lm)

 T c = 85ºC

(lm)
BXRC-27E1000-B-8x 2700 80 200 1031 907 33.6 6.7 154
BXRC-27E1000-C-8x 2700 80 300 1390 1223 30.1 9.0 154
BXRC-27E1000-D-8x 2700 80 250 939 826 24.4 6.1 154
BXRC-27G1000-B-8x 2700 90 200 850 748 33.6 6.7 127
BXRC-27G1000-C-8x 2700 90 300 1147 1009 30.1 9.0 127
BXRC-27G1000-D-8x 2700 90 250 774 681 24.4 6.1 127
BXRC-27G10H0-B-8x 2700 90 200 887 781 33.6 6.7 132
BXRC-27G10H0-C-8x 2700 90 300 1196 1053 30.1 9.0 132
BXRC-27G10H0-D-8x 2700 90 250 808 711 24.4 6.1 132
BXRC-27H1000-B-8x 2700 97 200 754 663 33.6 6.7 112
BXRC-27H1000-C-8x 2700 97 300 1016 894 30.1 9.0 112
BXRC-27H1000-D-8x 2700 97 250 686 604 24.4 6.1 112
BXRC-30C1001-B-8x 3000 70 200 1147 1009 33.6 6.7 171
BXRC-30C1001-C-8x 3000 70 300 1546 1361 30.1 9.0 171
BXRC-30C1001-D-8x 3000 70 250 1044 919 24.4 6.1 171
BXRC-30E1000-B-8x 3000 80 200 1095 964 33.6 6.7 163
BXRC-30E1000-C-8x 3000 80 300 1477 1300 30.1 9.0 163
BXRC-30E1000-D-8x 3000 80 250 997 878 24.4 6.1 163
BXRC-30G1000-B-8x 3000 90 200 889 782 33.6 6.7 133
BXRC-30G1000-C-8x 3000 90 300 1199 1055 30.1 9.0 133
BXRC-30G1000-D-8x 3000 90 250 809 712 24.4 6.1 133
BXRC-30G10H0-B-8x 3000 90 200 931 819 33.6 6.7 139
BXRC-30G10H0-C-8x 3000 90 300 1255 1105 30.1 9.0 139
BXRC-30G10H0-D-8x 3000 90 250 848 746 24.4 6.1 139
BXRC-30H1000-B-8x 3000 97 200 805 709 33.6 6.7 120
BXRC-30H1000-C-8x 3000 97 300 1086 956 30.1 9.0 120
BXRC-30H1000-D-8x 3000 97 250 733 645 24.4 6.1 120
BXRC-35E1000-B-8x 3500 80 200 1121 987 33.6 6.7 167
BXRC-35E1000-C-8x 3500 80 300 1512 1330 30.1 9.0 167
BXRC-35E1000-D-8x 3500 80 250 1021 898 24.4 6.1 167
BXRC-35G1000-B-8x 3500 90 200 921 811 33.6 6.7 137
BXRC-35G1000-C-8x 3500 90 300 1242 1093 30.1 9.0 137
BXRC-35G1000-D-8x 3500 90 250 839 738 24.4 6.1 137



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85ºC

(lm)

 T c = 85ºC

(lm)
BXRC-40C1001-B-8x 4000 70 200 1179 1038 33.6 6.7 176
BXRC-40C1001-C-8x 4000 70 300 1590 1399 30.1 9.0 176
BXRC-40C1001-D-8x 4000 70 250 1073 945 24.4 6.1 176
BXRC-40E1000-B-8x 4000 80 200 1128 992 33.6 6.7 168
BXRC-40E1000-C-8x 4000 80 300 1520 1338 30.1 9.0 168
BXRC-40E1000-D-8x 4000 80 250 1027 903 24.4 6.1 168
BXRC-40G1000-B-8x 4000 90 200 941 828 33.6 6.7 140
BXRC-40G1000-C-8x 4000 90 300 1268 1116 30.1 9.0 140
BXRC-40G1000-D-8x 4000 90 250 856 754 24.4 6.1 140
BXRC-50C1001-B-8x 5000 70 200 1186 1043 33.6 6.7 177
BXRC-50C1001-C-8x 5000 70 300 1599 1407 30.1 9.0 177
BXRC-50C1001-D-8x 5000 70 250 1079 950 24.4 6.1 177
BXRC-50E1001-B-8x 5000 80 200 1140 1004 33.6 6.7 170
BXRC-50E1001-C-8x 5000 80 300 1538 1353 30.1 9.0 170
BXRC-50E1001-D-8x 5000 80 250 1038 914 24.4 6.1 170
BXRC-50G1001-B-8x 5000 90 200 986 867 33.6 6.7 147
BXRC-50G1001-C-8x 5000 90 300 1329 1170 30.1 9.0 147
BXRC-50G1001-D-8x 5000 90 250 897 790 24.4 6.1 147
BXRC-57C1001-B-8x 5700 70 200 1153 1015 33.6 6.7 172
BXRC-57C1001-C-8x 5700 70 300 1555 1368 30.1 9.0 172
BXRC-57C1001-D-8x 5700 70 250 1050 924 24.4 6.1 172
BXRC-57E1001-B-8x 5700 80 200 1095 964 33.6 6.7 163
BXRC-57E1001-C-8x 5700 80 300 1477 1300 30.1 9.0 163
BXRC-57E1001-D-8x 5700 80 250 997 878 24.4 6.1 163
BXRC-65C1001-B-8x 6500 70 200 1153 1015 33.6 6.7 172
BXRC-65C1001-C-8x 6500 70 300 1555 1368 30.1 9.0 172
BXRC-65C1001-D-8x 6500 70 250 1050 924 24.4 6.1 172
BXRC-65E1001-B-8x 6500 80 200 1108 975 33.6 6.7 165
BXRC-65E1001-C-8x 6500 80 300 1494 1315 30.1 9.0 165
BXRC-65E1001-D-8x 6500 80 250 1009 888 24.4 6.1 165



Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-27E1000-B-8X 2700 80 500 36.8 2323 18.4 126 E 871002
BXRC-27E1000-C-8X 2700 80 1000 34.3 4115 34.3 120 E 871007
BXRC-27E1000-D-8X 2700 80 1000 28.5 3294 28.5 115 F 871012
BXRC-27G1000-B-8X 2700 90 500 36.8 1917 18.4 104 F 871071
BXRC-27G1000-C-8X 2700 90 770 33.1 2727 25.5 107 F 871076
BXRC-27G1000-D-8X 2700 90 720 27.3 2058 19.7 105 F 871081
BXRC-27G10H0-B-8X 2700 90 500 36.8 1999 18.4 109 F 871085
BXRC-27G10H0-C-8X 2700 90 870 33.7 3157 29.3 108 F 871089
BXRC-27G10H0-D-8X 2700 90 810 27.7 2379 22.5 106 F 871093
BXRC-30C1001-B-8X 3000 70 500 36.8 2585 18.4 141 E 871258
BXRC-30C1001-C-8X 3000 70 1000 34.3 4578 34.3 133 E 871264
BXRC-30C1001-D-8X 3000 70 1000 28.5 3664 28.5 128 E 871270
BXRC-30E1000-B-8X 3000 80 500 36.8 2468 18.4 134 E 871332
BXRC-30E1000-C-8X 3000 80 1000 34.3 4373 34.3 127 E 871337
BXRC-30E1000-D-8X 3000 80 1000 28.5 3500 28.5 123 E 871342
BXRC-30G1000-B-8X 3000 90 500 36.8 2004 18.4 109 F 871401
BXRC-30G1000-C-8X 3000 90 880 33.7 3195 29.7 108 F 871406
BXRC-30G1000-D-8X 3000 90 820 27.8 2409 22.8 106 F 871411



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-30G10H0-B-8X 3000 90 500 36.8 2098 18.4 114 F 871423
BXRC-30G10H0-C-8X 3000 90 1000 34.3 3717 34.3 108 F 871427
BXRC-30G10H0-D-8X 3000 90 920 28.2 2777 25.9 107 F 871431
BXRC-35E1000-B-8X 3500 80 500 36.8 2526 18.4 137 E 871606
BXRC-35E1000-C-8X 3500 80 1000 34.3 4475 34.3 130 E 871611
BXRC-35E1000-D-8X 3500 80 1000 28.5 3582 28.5 126 E 871616
BXRC-35G1000-B-8X 3500 90 500 36.8 2076 18.4 113 F 871674
BXRC-35G1000-C-8X 3500 90 960 34.1 3555 32.8 109 F 871679
BXRC-35G1000-D-8X 3500 90 900 28.1 2699 25.3 107 F 871684
BXRC-40C1001-B-8X 4000 70 500 36.8 2657 18.4 145 E 871760
BXRC-40C1001-C-8X 4000 70 1000 34.3 4707 34.3 137 E 871766
BXRC-40C1001-D-8X 4000 70 1000 28.5 3767 28.5 132 E 871772
BXRC-40E1000-B-8X 4000 80 500 36.8 2541 18.4 138 E 871838
BXRC-40E1000-C-8X 4000 80 1000 34.3 4501 34.3 131 E 871843
BXRC-40E1000-D-8X 4000 80 1000 28.5 3603 28.5 126 E 871848
BXRC-40G1000-B-8X 4000 90 500 36.8 2120 18.4 115 F 871907
BXRC-40G1000-C-8X 4000 90 1000 34.3 3755 34.3 109 F 871912
BXRC-40G1000-D-8X 4000 90 950 28.3 2880 26.9 107 F 871917
BXRC-50C1001-B-8X 5000 70 500 36.8 2672 18.4 145 E 871996
BXRC-50C1001-C-8X 5000 70 1000 34.3 4733 34.3 138 E 872000
BXRC-50C1001-D-8X 5000 70 1000 28.5 3788 28.5 133 E 872004
BXRC-50E1001-B-8X 5000 80 500 36.8 2570 18.4 140 E 872048
BXRC-50E1001-C-8X 5000 80 1000 34.3 4553 34.3 133 E 872052
BXRC-50E1001-D-8X 5000 80 1000 28.5 3644 28.5 128 E 872056
BXRC-50G1001-B-8X 5000 90 500 36.8 2222 18.4 121 E 872100
BXRC-50G1001-C-8X 5000 90 1000 34.3 3935 34.3 115 F 872104
BXRC-50G1001-D-8X 5000 90 1000 28.5 3150 28.5 110 F 872108
BXRC-57C1001-B-8X 5700 70 500 36.8 2599 18.4 141 E 872206
BXRC-57C1001-C-8X 5700 70 1000 34.3 4604 34.3 134 E 872210
BXRC-57C1001-D-8X 5700 70 1000 28.5 3685 28.5 129 E 872214
BXRC-57E1001-B-8X 5700 80 500 36.8 2468 18.4 134 E 872255
BXRC-57E1001-C-8X 5700 80 1000 34.3 4373 34.3 127 E 872259
BXRC-57E1001-D-8X 5700 80 1000 28.5 3500 28.5 123 E 872263
BXRC-65C1001-B-8X 6500 70 500 36.8 2599 18.4 141 E 872303
BXRC-65C1001-C-8X 6500 70 1000 34.3 4604 34.3 134 E 872307
BXRC-65C1001-D-8X 6500 70 1000 28.5 3685 28.5 129 E 872311



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-65E1001-B-8X 6500 80 500 36.8 2497 18.4 136 E 872353
BXRC-65E1001-C-8X 6500 80 1000 34.3 4424 34.3 129 E 872357
BXRC-65E1001-D-8X 6500 80 1000 28.5 3541 28.5 124 E 872361

Related products
