Vero® Series Gen 8 Vero® 13 Array

Description

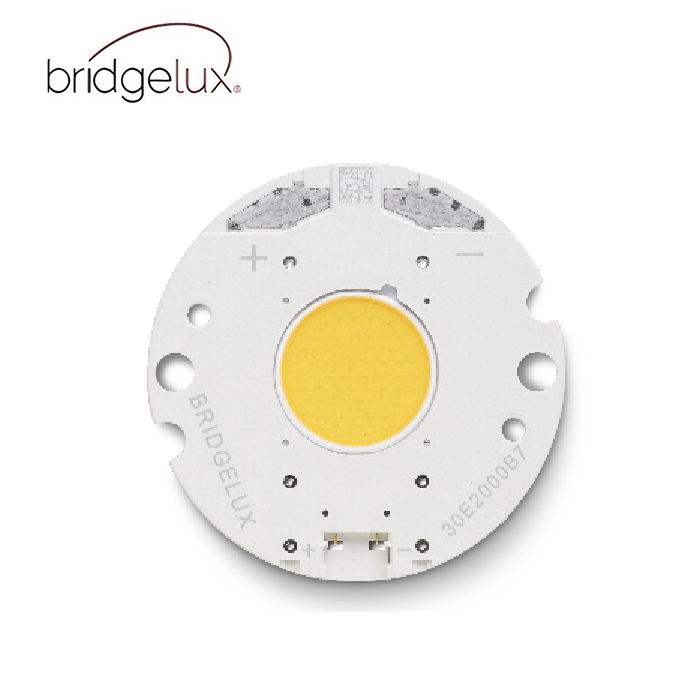

Bridgelux® Gen 8 Vero® 13 Array

The Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation, simplifying the luminaire design and manufacturing processes. Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents.

Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color control standard for clean and consistent uniform lighting. Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting features for plug-and-play installation.

Features
• On board connector port
• Top side part number markings
• Efficacy of 178 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes (backside marking)
• Thermally isolated solder pads
• 10-Year warranty

Benefits
• Solder free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Enhanced ease of use and installation
• Design with confidence

Product Family	Product	Part Number	Doc Number	Gen	CCT (K)	CRI Options	SDCM	Typ. Flux(lm)	Current (mA)	Voltage (V)	Efficacy (lm/W)	Substrate Size (mm)
BXRC Vero	Vero 13B	BXRC-xxx200x-B-8x	DS421	8	2700-6500	70, 80, 90, 97	2, 3 , 4	2090	350	33.4	178	13
BXRC Vero	Vero 13C	BXRC-xxx200x-C-8x	DS421	8	2700-6500	70, 80, 90, 97	2, 3 , 4	2990	500	33.4	178	13
BXRC Vero	Vero 13D	BXRC-xxx200x-D-8x	DS421	8	2700-6500	70, 80, 90, 97	2, 3 , 4	2200	400	30.9	178	13

Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-27E2000-B-8x	2700	80	350	1963	1767	33.4	11.7	168
BXRC-27E2000-C-8x	2700	80	500	2805	2524	33.4	16.7	168
BXRC-27E2000-D-8x	2700	80	400	2068	1861	30.9	12.4	167
BXRC-27G2000-B-8x	2700	90	350	1620	1458	33.4	11.7	139
BXRC-27G2000-C-8x	2700	90	500	2314	2082	33.4	16.7	139
BXRC-27G2000-D-8x	2700	90	400	1706	1535	30.9	12.4	138
BXRC-27G20H0-B-8x	2700	90	350	1690	1521	33.4	11.7	145
BXRC-27G20H0-C-8x	2700	90	500	2414	2172	33.4	16.7	145
BXRC-27G20H0-D-8x	2700	90	400	1780	1602	30.9	12.4	144
BXRC-27H2000-B-8x	2700	97	350	1436	1292	33.4	11.7	123
BXRC-27H2000-C-8x	2700	97	500	2051	1846	33.4	16.7	123
BXRC-27H2000-D-8x	2700	97	400	1512	1361	30.9	12.4	122
BXRC-30C2001-B-8x	3000	70	350	2184	1966	33.4	11.7	187
BXRC-30C2001-C-8x	3000	70	500	3120	2808	33.4	16.7	187
BXRC-30C2001-D-8x	3000	70	400	2300	2070	30.9	12.4	186
BXRC-30E2000-B-8x	3000	80	350	2086	1877	33.4	11.7	178
BXRC-30E2000-C-8x	3000	80	500	2980	2682	33.4	16.7	178
BXRC-30E2000-D-8x	3000	80	400	2197	1977	30.9	12.4	178
BXRC-30G2000-B-8x	3000	90	350	1693	1524	33.4	11.7	145
BXRC-30G2000-C-8x	3000	90	500	2419	2177	33.4	16.7	145
BXRC-30G2000-D-8x	3000	90	400	1783	1605	30.9	12.4	144
BXRC-30G20H0-B-8x	3000	90	350	1773	1596	33.4	11.7	152
BXRC-30G20H0-C-8x	3000	90	500	2533	2280	33.4	16.7	152
BXRC-30G20H0-D-8x	3000	90	400	1867	1681	30.9	12.4	151
BXRC-30H2000-B-8x	3000	97	350	1534	1380	33.4	11.7	131
BXRC-30H2000-C-8x	3000	97	500	2191	1972	33.4	16.7	131
BXRC-30H2000-D-8x	3000	97	400	1615	1454	30.9	12.4	131
BXRC-35E2000-B-8x	3500	80	350	2135	1922	33.4	11.7	183
BXRC-35E2000-C-8x	3500	80	500	3050	2745	33.4	16.7	183
BXRC-35E2000-D-8x	3500	80	400	2249	2024	30.9	12.4	182
BXRC-35G2000-B-8x	3500	90	350	1755	1579	33.4	11.7	150
BXRC-35G2000-C-8x	3500	90	500	2507	2256	33.4	16.7	150
BXRC-35G2000-D-8x	3500	90	400	1848	1663	30.9	12.4	150
BXRC-40C2001-B-8x	4000	70	350	2246	2021	33.4	11.7	192
BXRC-40C2001-C-8x	4000	70	500	3208	2887	33.4	16.7	192
BXRC-40C2001-D-8x	4000	70	400	2365	2129	30.9	12.4	191

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical Pulsed Flux4,5,6 Tc = 25ºC (lm)	Minimum Pulsed Flux6,7 Tc = 25ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40E2000-B-8x	4000	80	350	2147	1933	33.4	11.7	184
BXRC-40E2000-C-8x	4000	80	500	3068	2761	33.4	16.7	184
BXRC-40E2000-D-8x	4000	80	400	2262	2035	30.9	12.4	183
BXRC-40G2000-B-8x	4000	90	350	1792	1612	33.4	11.7	153
BXRC-40G2000-C-8x	4000	90	500	2559	2303	33.4	16.7	153
BXRC-40G2000-D-8x	4000	90	400	1887	1698	30.9	12.4	153
BXRC-50C2001-B-8x	5000	70	350	2258	2032	33.4	11.7	193
BXRC-50C2001-C-8x	5000	70	500	3225	2903	33.4	16.7	193
BXRC-50C2001-D-8x	5000	70	400	2378	2140	30.9	12.4	192
BXRC-50E2001-B-8x	5000	80	350	2172	1955	33.4	11.7	186
BXRC-50E2001-C-8x	5000	80	500	3103	2792	33.4	16.7	186
BXRC-50E2001-D-8x	5000	80	400	2287	2059	30.9	12.4	185
BXRC-50G2001-B-8x	5000	90	350	1877	1690	33.4	11.7	161
BXRC-50G2001-C-8x	5000	90	500	2682	2414	33.4	16.7	161
BXRC-50G2001-D-8x	5000	90	400	1977	1780	30.9	12.4	160
BXRC-57C2001-B-8x	5700	70	350	2196	1977	33.4	11.7	188
BXRC-57C2001-C-8x	5700	70	500	3138	2824	33.4	16.7	188
BXRC-57C2001-D-8x	5700	70	400	2313	2082	30.9	12.4	187
BXRC-57E2001-B-8x	5700	80	350	2086	1877	33.4	11.7	178
BXRC-57E2001-C-8x	5700	80	500	2980	2682	33.4	16.7	178
BXRC-57E2001-D-8x	5700	80	400	2197	1977	30.9	12.4	178
BXRC-65C2001-B-8x	6500	70	350	2196	1977	33.4	11.7	188
BXRC-65C2001-C-8x	6500	70	500	3138	2824	33.4	16.7	188
BXRC-65C2001-D-8x	6500	70	400	2313	2082	30.9	12.4	187
BXRC-65E2001-B-8x	6500	80	350	2111	1899	33.4	11.7	181
BXRC-65E2001-C-8x	6500	80	500	3015	2714	33.4	16.7	181
BXRC-65E2001-D-8x	6500	80	400	2223	2001	30.9	12.4	180

Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-27E2000-B-8x	2700	80	350	1767		1590		32.7	11.4	154
BXRC-27E2000-C-8x	2700	80	500	2524		2272		32.7	16.3	154
BXRC-27E2000-D-8x	2700	80	400	1861		1675		30.2	12.1	154
BXRC-27G2000-B-8x	2700	90	350	1458		1312		32.7	11.4	127
BXRC-27G2000-C-8x	2700	90	500	2082		1874		32.7	16.3	127
BXRC-27G2000-D-8x	2700	90	400	1535		1382		30.2	12.1	127
BXRC-27G20H0-B-8x	2700	90	350	1521		1369		32.7	11.4	133
BXRC-27G20H0-C-8x	2700	90	500	2172		1955		32.7	16.3	133
BXRC-27G20H0-D-8x	2700	90	400	1602		1441		30.2	12.1	132
BXRC-27H2000-B-8x	2700	97	350	1292		1163		32.7	11.4	113
BXRC-27H2000-C-8x	2700	97	500	1846		1661		32.7	16.3	113
BXRC-27H2000-D-8x	2700	97	400	1361		1225		30.2	12.1	113
BXRC-30C2001-B-8x	3000	70	350	1966		1769		32.7	11.4	172
BXRC-30C2001-C-8x	3000	70	500	2808		2527		32.7	16.3	172
BXRC-30C2001-D-8x	3000	70	400	2070		1863		30.2	12.1	171
BXRC-30E2000-B-8x	3000	80	350	1877		1690		32.7	11.4	164
BXRC-30E2000-C-8x	3000	80	500	2682		2414		32.7	16.3	164
BXRC-30E2000-D-8x	3000	80	400	1977		1780		30.2	12.1	164
BXRC-30G2000-B-8x	3000	90	350	1524		1372		32.7	11.4	133
BXRC-30G2000-C-8x	3000	90	500	2177		1959		32.7	16.3	133
BXRC-30G2000-D-8x	3000	90	400	1605		1445		30.2	12.1	133
BXRC-30G20H0-B-8x	3000	90	350	1596		1436		32.7	11.4	140
BXRC-30G20H0-C-8x	3000	90	500	2280		2052		32.7	16.3	140
BXRC-30G20H0-D-8x	3000	90	400	1681		1513		30.2	12.1	139
BXRC-30H2000-B-8x	3000	97 typ.	350	1380		1242		32.7	11.4	121
BXRC-30H2000-C-8x	3000	97 typ.	500	1972		1775		32.7	16.3	121
BXRC-30H2000-D-8x	3000	97 typ.	400	1454		1309		30.2	12.1	120
BXRC-35E2000-B-8x	3500	80	350	1922		1729		32.7	11.4	168
BXRC-35E2000-C-8x	3500	80	500	2745		2471		32.7	16.3	168
BXRC-35E2000-D-8x	3500	80	400	2024		1821		30.2	12.1	167
BXRC-35G2000-B-8x	3500	90	350	1579		1421		32.7	11.4	138
BXRC-35G2000-C-8x	3500	90	500	2256		2030		32.7	16.3	138
BXRC-35G2000-D-8x	3500	90	400	1663		1497		30.2	12.1	138
BXRC-40C2001-B-8x	4000	70	350	2021		1819		32.7	11.4	177
BXRC-40C2001-C-8x	4000	70	500	2887		2598		32.7	16.3	177
BXRC-40C2001-D-8x	4000	70	400	2129		1916		30.2	12.1	176

Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	Typical DC Flux4,5		Minimum DC Flux6		Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
Part Number	Nominal CCT1 (K)	CRI2	Nominal Drive Current3 (mA)	T c	= 85ºC (lm)	T c	= 85ºC (lm)	Typical Vf (V)	Typical Power (W)	Typical Efficacy (lm/W)
BXRC-40E2000-B-8x	4000	80	350	1933		1739		32.7	11.4	169
BXRC-40E2000-C-8x	4000	80	500	2761		2485		32.7	16.3	169
BXRC-40E2000-D-8x	4000	80	400	2035		1832		30.2	12.1	168
BXRC-40G2000-B-8x	4000	90	350	1612		1451		32.7	11.4	141
BXRC-40G2000-C-8x	4000	90	500	2303		2073		32.7	16.3	141
BXRC-40G2000-D-8x	4000	90	400	1698		1528		30.2	12.1	140
BXRC-50C2001-B-8x	5000	70	350	2032		1829		32.7	11.4	178
BXRC-50C2001-C-8x	5000	70	500	2903		2613		32.7	16.3	178
BXRC-50C2001-D-8x	5000	70	400	2140		1926		30.2	12.1	177
BXRC-50E2001-B-8x	5000	80	350	1955		1759		32.7	11.4	171
BXRC-50E2001-C-8x	5000	80	500	2792		2513		32.7	16.3	171
BXRC-50E2001-D-8x	5000	80	400	2059		1853		30.2	12.1	170
BXRC-50G2001-B-8x	5000	90	350	1690		1521		32.7	11.4	148
BXRC-50G2001-C-8x	5000	90	500	2414		2172		32.7	16.3	148
BXRC-50G2001-D-8x	5000	90	400	1780		1602		30.2	12.1	147
BXRC-57C2001-B-8x	5700	70	350	1977		1779		32.7	11.4	173
BXRC-57C2001-C-8x	5700	70	500	2824		2542		32.7	16.3	173
BXRC-57C2001-D-8x	5700	70	400	2082		1874		30.2	12.1	172
BXRC-57E2001-B-8x	5700	80	350	1877		1690		32.7	11.4	164
BXRC-57E2001-C-8x	5700	80	500	2682		2414		32.7	16.3	164
BXRC-57E2001-D-8x	5700	80	400	1977		1780		30.2	12.1	164
BXRC-65C2001-B-8x	6500	70	350	1977		1779		32.7	11.4	173
BXRC-65C2001-C-8x	6500	70	500	2824		2542		32.7	16.3	173
BXRC-65C2001-D-8x	6500	70	400	2082		1874		30.2	12.1	172
BXRC-65E2001-B-8x	6500	80	350	1899		1710		32.7	11.4	166
BXRC-65E2001-C-8x	6500	80	500	2714		2442		32.7	16.3	166
BXRC-65E2001-D-8x	6500	80	400	2001		1801		30.2	12.1	165

Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-27E2000-B-8X	2700	80	1250	38.3	5726	47.9	120	E	871034
BXRC-27E2000-C-8X	2700	80	1750	36.8	8034	64.4	125	E	871041
BXRC-27E2000-D-8X	2700	80	1250	33.4	5352	41.8	128	E	871046
BXRC-27G2000-B-8X	2700	90	900	36.7	3578	33.0	108	F	871127
BXRC-27G2000-C-8X	2700	90	1410	35.7	5537	50.3	110	F	871134
BXRC-27G2000-D-8X	2700	90	1140	33.0	4093	37.6	109	F	871139
BXRC-27G20H0-B-8X	2700	90	1040	37.4	4231	38.9	109	F	871143
BXRC-27G20H0-C-8X	2700	90	1610	36.3	6456	58.5	110	F	871147
BXRC-27G20H0-D-8X	2700	90	1250	33.4	4606	41.8	110	F	871151
BXRC-30C2001-B-8X	3000	70	1250	38.3	6370	47.9	133	E	871294
BXRC-30C2001-C-8X	3000	70	1750	36.8	8938	64.4	139	E	871300
BXRC-30C2001-D-8X	3000	70	1250	33.4	5954	41.8	142	E	871306
BXRC-30E2000-B-8X	3000	80	1250	38.3	6084	47.9	127	E	871364
BXRC-30E2000-C-8X	3000	80	1750	36.8	8537	64.4	133	E	871371
BXRC-30E2000-D-8X	3000	80	1250	33.4	5687	41.8	136	E	871376
BXRC-30G2000-B-8X	3000	90	1040	37.4	4240	38.9	109	F	871465
BXRC-30G2000-C-8X	3000	90	1620	36.4	6503	58.9	110	F	871472
BXRC-30G2000-D-8X	3000	90	1250	33.4	4616	41.8	110	F	871477

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-30G20H0-B-8X	3000	90	1190	38.1	4964	45.3	110	F	871485
BXRC-30G20H0-C-8X	3000	90	1750	36.8	7256	64.4	113	F	871489
BXRC-30G20H0-D-8X	3000	90	1250	33.4	4834	41.8	116	F	871493
BXRC-35E2000-B-8X	3500	80	1250	38.3	6227	47.9	130	E	871638
BXRC-35E2000-C-8X	3500	80	1750	36.8	8737	64.4	136	E	871645
BXRC-35E2000-D-8X	3500	80	1250	33.4	5820	41.8	139	E	871650
BXRC-35G2000-B-8X	3500	90	1150	37.9	4778	43.6	110	F	871705
BXRC-35G2000-C-8X	3500	90	1750	36.8	7181	64.4	112	F	871712
BXRC-35G2000-D-8X	3500	90	1250	33.4	4783	41.8	114	F	871717
BXRC-40C2001-B-8X	4000	70	1250	38.3	6549	47.9	137	E	871797
BXRC-40C2001-C-8X	4000	70	1750	36.8	9189	64.4	143	E	871803
BXRC-40C2001-D-8X	4000	70	1250	33.4	6121	41.8	146	D	871809
BXRC-40E2000-B-8X	4000	80	1250	38.3	6263	47.9	131	E	871870
BXRC-40E2000-C-8X	4000	80	1750	36.8	8788	64.4	137	E	871877
BXRC-40E2000-D-8X	4000	80	1250	33.4	5854	41.8	140	E	871882
BXRC-40G2000-B-8X	4000	90	1220	38.2	5117	46.6	110	F	871939
BXRC-40G2000-C-8X	4000	90	1750	36.8	7331	64.4	114	F	871946
BXRC-40G2000-D-8X	4000	90	1250	33.4	4884	41.8	117	F	871951
BXRC-50C2001-B-8X	5000	70	1250	38.3	6585	47.9	137	E	872022
BXRC-50C2001-C-8X	5000	70	1750	36.8	9240	64.4	144	E	872026
BXRC-50C2001-D-8X	5000	70	1250	33.4	6155	41.8	147	D	872030
BXRC-50E2001-B-8X	5000	80	1250	38.3	6334	47.9	132	E	872074
BXRC-50E2001-C-8X	5000	80	1750	36.8	8888	64.4	138	E	872078
BXRC-50E2001-D-8X	5000	80	1250	33.4	5921	41.8	142	E	872082
BXRC-50G2001-B-8X	5000	90	1250	38.3	5475	47.9	114	F	872127
BXRC-50G2001-C-8X	5000	90	1750	36.8	7683	64.4	119	E	872131
BXRC-50G2001-D-8X	5000	90	1250	33.4	5118	41.8	122	E	872135
BXRC-57C2001-B-8X	5700	70	1250	38.3	6406	47.9	134	E	872230
BXRC-57C2001-C-8X	5700	70	1750	36.8	8989	64.4	140	E	872235
BXRC-57C2001-D-8X	5700	70	1250	33.4	5988	41.8	143	E	872239
BXRC-57E2001-B-8X	5700	80	1250	38.3	6084	47.9	127	E	872279
BXRC-57E2001-C-8X	5700	80	1750	36.8	8537	64.4	133	E	872283
BXRC-57E2001-D-8X	5700	80	1250	33.4	5687	41.8	136	E	872287
BXRC-65C2001-B-8X	6500	70	1250	38.3	6406	47.9	134	E	872328
BXRC-65C2001-C-8X	6500	70	1750	36.8	8989	64.4	140	E	872332
BXRC-65C2001-D-8X	6500	70	1250	33.4	5988	41.8	143	E	872336

PART NUMBER1	CCT (K)	CRI	Current2 (mA)	Vf (V)	Useful flux3 (Φuse) at 85C (lm)	Pow- er (W)	Efficacy (lm/W)	Energy efficiency class4	Regis- tration No
BXRC-65E2001-B-8X	6500	80	1250	38.3	6155	47.9	128	E	872377
BXRC-65E2001-C-8X	6500	80	1750	36.8	8637	64.4	134	E	872381
BXRC-65E2001-D-8X	6500	80	1250	33.4	5753	41.8	138	E	872385
