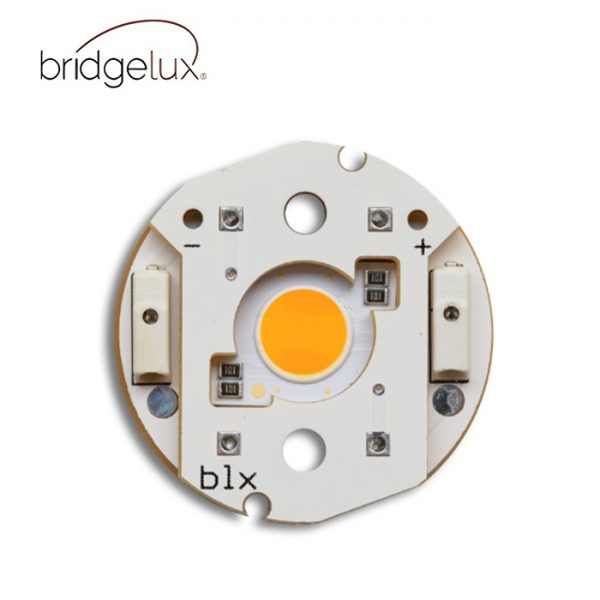

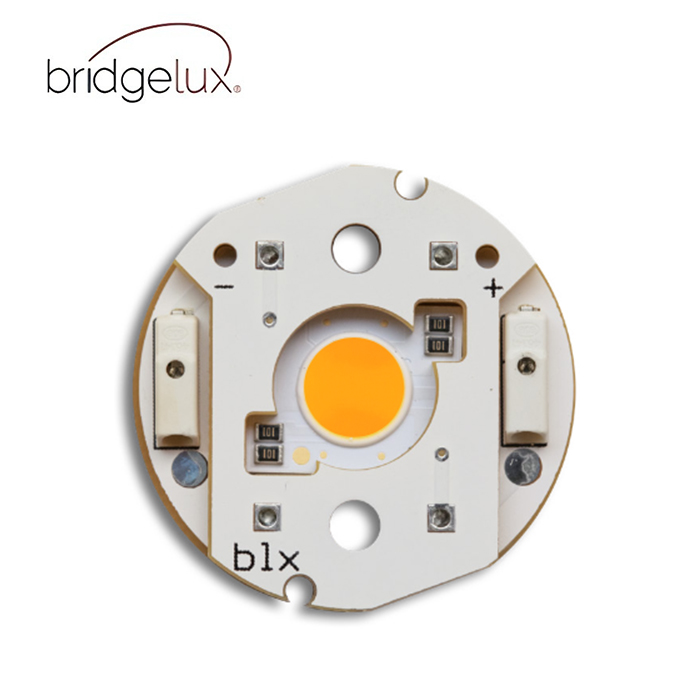

Vesta® SE Series Dim-To-Warm Gen 2 6mm Integrated Array With S2 Holder

Description

Bridgelux® Vesta® SE Series Dim-To-Warm Gen 2 6mm Integrated Array with S2 Holder

Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform. The arrays incorporate several features to simplify design integration and assembly.

Product Family	Product	Part Number	Doc Number	Gen	LES Size (mm)	CCT Range (K)	CRI	Typ. FLUX (lm) highest CCT	Current (mA)	Voltage (V)	Power (W)	Efficacy (lm/W)	Substrate Size (mm)
BXRV Vesta DW	Vesta SE Dim to Warm 6mm	BXRV-DR-1827G-0600-A23-S2	DS380	2	⌀7.2	1800-2700	90	552	350	17	6	93	⌀29.7
BXRV Vesta DW	Vesta SE Dim to Warm 6mm	BXRV-DR-1830G-0600-A23-S2	DS380	2	⌀7.2	1800-3000	90	581	350	17	6	98	⌀29.7
BXRV Vesta DW	Vesta SE Dim to Warm 6mm	BXRV-DR-1827G-0600-B23-S2	DS380	2	⌀7.2	1800-2700	90	903	280	34.6	9.7	93	⌀29.7
BXRV Vesta DW	Vesta SE Dim to Warm 6mm	BXRV-DR-1830G-0600-B23-S2	DS380	2	⌀7.2	1800-3000	90	950	280	34.6	9.7	98	⌀29.7
BXRV Vesta DW	Vesta SE Dim to Warm 6mm	BXRV-DR-1827G-0600-A13-S2	DS370	1	⌀7.2	1800-2700	90	552	350	17	6	93	⌀30.8
BXRV Vesta DW	Vesta SE Dim to Warm 6mm	BXRV-DR-1830G-0600-A13-S2	DS370	1	⌀7.2	1800-3000	90	581	350	17	6	98	⌀30.8

Table 1: Selection Guide, Measurement Data

Part Number	Nominal CCT 1 (K)	Minimum CRI 2	Drive Current (mA)	Typical Vf Tc=25°C (V)	Typical Power Tc=25°C (W)	Typical Pulsed Flux 3, 4, 5 Tc=25°C (lm)	Typical Efficacy Tc=25°C (lm/W)	Minimum Pulsed Flux 6, 7 Tc=25°C (lm)	Typical DC Flux 7, 8 Tc=85°C (lm)
BXRV-DR-1827G-0600-A- 23-S2	2700	90	350	17.0	6.0	552	93	497	497
BXRV-DR-1827G-0600-A- 23-S2	1800	90	14	11.2	0.2	12	79	11	11
BXRV-DR-1830G-0600-A- 23-S2	3000	90	350	17.0	6.0	581	98	523	523
BXRV-DR-1830G-0600-A- 23-S2	1800	90	14	11.2	0.2	14	90	13	13
BXRV-DR-1827G-0600-B- 23-S2	2700	90	280	34.6	9.7	903	93	813	813
BXRV-DR-1827G-0600-B- 23-S2	1800	90	14	27.3	0.4	35	92	32	32
BXRV-DR-1830G-0600-B- 23-S2	3000	90	280	34.6	9.7	950	98	855	855
BXRV-DR-1830G-0600-B- 23-S2	1800	90	14	27.3	0.4	35	92	32	32

Table 2: Table of products registered in the European Product Registry for Energy Labeling (EPREL)

Part Number	CCT (K)	CRI	Cur– rent 3 (mA)	Volt– age 3 (V)	Useful Flux 2 useful Tc=85C (lm)	Power (W)	Efficacy (lm/W)	Energy Efficiency Class 4	Regis– tration No
Part Number	CCT (K)	CRI	Cur– rent 3 (mA)	Volt– age 3 (V)	Useful Flux 2 useful Tc=85C (lm)	Power (W)	Efficacy (lm/W)		Regis– tration No
23-S2	2700	90	420	16.93	495	7.1	69	G	879044
BXRV-DR-1830G-0600-A- 23-S2	3000	90	420	16.93	521	7.1	73	G	879062
BXRV-DR-1827G-0600-B- 23-S2	2700	90	210	31.83	520	6.7	77	G	879046
BXRV-DR-1830G-0600-B- 23-S2	3000	90	250	32.42	641	8.1	79	G	879064

Table 3: Electrical Characteristics

Part Number	Drive Current (mA)	Forward Voltage Pulsed, Tc = 25.C (V) 1, 2, 3, 7			Typical Coefficient of Forward Voltage 4 ∆Vf/∆Tc (mV/ºC)	Typical Thermal Resistance Junction to Case 5 Rj-c (ºC/W)	Driver Selection Voltages 6 (V)
		Minimum	Typical	Maximum			Driver Selection Voltages 6 (V)
		Minimum	Typical	Maximum			Vf Min. Hot Tc = 105ºC (V)	Vf Max. Cold Tc = -40ºC (V)
BXRV-DR-18xxG-0600-A- 23-S2	350	15.5	17.0	18.5	-6.1	0.89	15.0	18.9
BXRV-DR-18xxG-0600-A- 23-S2	420	15.8	17.3	18.8	-6.1	0.92	15.3	19.2
BXRV-DR-18xxG-0600-B- 23-S2	280	31.6	34.6	37.6	-12.4	0.89	30.6	38.4
BXRV-DR-18xxG-0600-B- 23-S2	350	32.4	35.5	38.6	-12.4	0.92	31.4	39.4

Table 4: Maximum Ratings

Parameter	Maximum Rating
LED Junction Temperature (Tj)	125°C
Storage Temperature	-40.C to +105.C
Operating Case Temperature1 (Tc)	105°C
Soldering Temperature2	350°C or lower for a maximum of 10 seconds
	BXRV-DR-18xxG-0600-A-23-S2	BXRV-DR-18xxG-0600-B-23-S2
Maximum Drive Current3	420mA	350mA
Maximum Peak Pulsed Drive Current4	600mA	500mA
Maximum Reverse Voltage5	-30V	-50V
