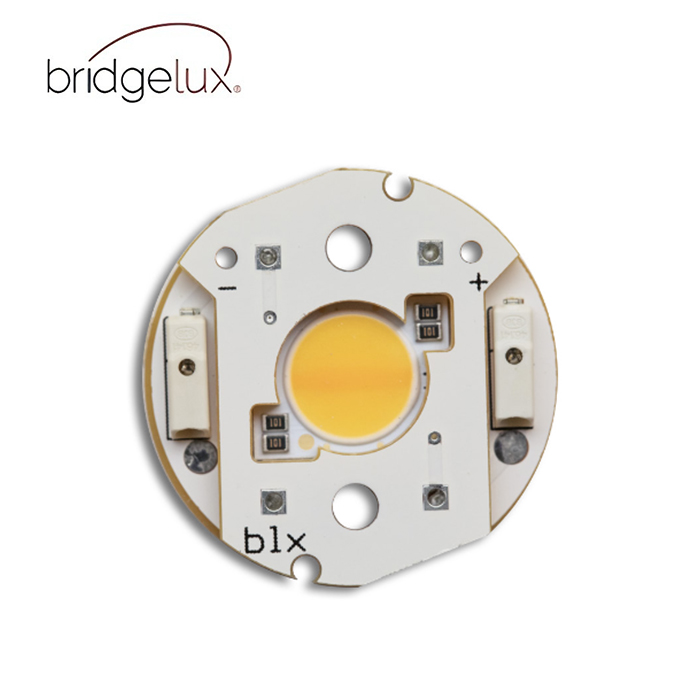

Bridgelux® Vesta® SE Series Dim-To-Warm Gen1 9mm Integrated Array with S2 Holder

Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform. The arrays incorporate several features to simplify design integration and assembly.



product-971-607



Product Family Product Part Number Doc Number Gen LES Size (mm) CCT Range (K) CRI Typ. FLUX (lm) highest CCT Current (mA) Voltage (V) Power (W) Efficacy (lm/W) Substrate Size (mm)
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1827G-1000-G13-S2 DS371 1 ⌀9.1 1800-2700 90 415 250 17 4.3 98 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1827G-1000-A13-S2 DS371 1 ⌀9.1 1800-2700 90 581 350 17 6 98 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1827G-1000-B13-S2 DS371 1 ⌀9.1 1800-2700 90 1156 350 33.8 11.8 98 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1827H-1000-G13-S2 DS371 1 ⌀9.1 1800-2700 95 367 250 17 4.3 86 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1827H-1000-A13-S2 DS371 1 ⌀9.1 1800-2700 95 513 350 17 6 86 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1827H-1000-B13-S2 DS371 1 ⌀9.1 1800-2700 95 1020 350 33.8 11.8 86 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1830G-1000-G13-S2 DS371 1 ⌀9.1 1800-3000 90 438 250 17 4.3 103 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1830G-1000-A13-S2 DS371 1 ⌀9.1 1800-3000 90 613 350 17 6 103 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1830G-1000-B13-S2 DS371 1 ⌀9.1 1800-3000 90 1218 350 33.8 11.8 103 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1830H-1000-G13-S2 DS371 1 ⌀9.1 1800-3000 95 385 250 17 4.3 91 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1830H-1000-A13-S2 DS371 1 ⌀9.1 1800-3000 95 539 350 17 6 91 ⌀30.8
BXRV Vesta DW Vesta SE Dim to Warm 9mm BXRV-DR-1830H-1000-B13-S2 DS371 1 ⌀9.1 1800-3000 95 1072 350 33.8 11.8 91 ⌀30.8



Table 1: Selection Guide, Measurement Data

Part Number Nominal

CCT1

(K)

 Minimum

CRI 2

 Drive

Current

(mA)

 Typical Vf

Tc=25°C

(V)

 Typical

Power

Tc=25°C

(W)

 Typical

Pulsed

Flux 3, 4, 5

Tc=25°C

(lm)

 Typical

Efficacy

Tc=25°C

(lm/W)

 Minimum

Pulsed

Flux 6, 7

Tc=25°C

(lm)

 Typical

DC Flux 7, 8

Tc=85°C

(lm)
BXRV-DR-1827G-1000-G-

13-S2

 2700 90 250 17 4.3 415 98 374 374
1800 90 14 11.2 0.2 12 79 11 11
BXRV-DR-1827G-1000-A-

13-S2

 2700 90 350 17 6.0 581 98 523 523
1800 90 14 11.2 0.2 12 79 11 11
BXRV-DR-1827G-1000-B-

13-S2

 2700 90 350 33.8 11.8 1156 98 1040 1040
1800 90 14 26.9 0.4 29 77 26 26
BXRV-DR-1827H-1000-G-

13-S2

 2700 95 250 17 4.3 367 86 330 330
1800 93 14 11.2 0.2 10 62 9 9
BXRV-DR-1827H-1000-A-

13-S2

 2700 95 350 17 6.0 513 86 462 462
1800 93 14 11.2 0.2 10 62 9 9
BXRV-DR-1827H-1000-B-

13-S2

 2700 95 350 33.8 11.8 1020 86 918 918
1800 93 14 26.9 0.4 24 63 21 21
BXRV-DR-1830G-1000-G-

13-S2

 3000 90 250 17 4.3 438 103 394 394
1800 90 14 11.2 0.2 14 90 13 13
BXRV-DR-1830G-1000-A-

13-S2

 3000 90 350 17 6.0 613 103 551 551
1800 90 14 11.2 0.2 14 90 13 13
BXRV-DR-1830G-1000-B-

13-S2

 3000 90 350 33.8 11.8 1218 103 1096 1096
1800 90 14 26.9 0.4 34 91 31 31
BXRV-DR-1830H-1000-G-

13-S2

 3000 95 250 17 4.3 385 91 347 347
1800 93 14 11.2 0.2 11 73 10 10
BXRV-DR-1830H-1000-A-

13-S2

 3000 95 350 17 6.0 539 91 485 485
1800 93 14 11.2 0.2 11 73 10 10
BXRV-DR-1830H-1000-B-

13-S2

 3000 95 350 33.8 11.8 1072 91 965 965
1800 93 14 26.9 0.4 27 72 25 25



Table 2: Table of products registered in the European Product Registry for Energy Labeling (EPREL)



Part Number

 CCT

(K)

 CRI Cur–

rent 3

(mA)

 Volt–

age 3

(V)

 Useful

Flux 2

useful

Tc=85C

(lm)

 Power

(W)

 Efficacy

(lm/W)

 Energy

Efficiency

Class 4

 Regis–

tration

No

13-S2 2700 90 300 16.7 372 5.0 74 G 876466
BXRV-DR-1827G-1000-A-

13-S2

 2700 90 420 16.9 521 7.1 73 G 876462
BXRV-DR-1827G-1000-B-

13-S2

 2700 90 280 31.9 733 9.0 81 G 876464
BXRV-DR-1827H-1000-G-

13-S2

 2700 95 300 16.7 329 5.0 65 G 876480
BXRV-DR-1827H-1000-A-

13-S2

 2700 95 380 16.6 424 6.3 66 G 876476
BXRV-DR-1827H-1000-B-

13-S2

 2700 95 200 30.9 475 6.2 76 G 876478
BXRV-DR-1830G-1000-G-

13-S2

 3000 90 300 16.7 392 5.0 78 G 876497
BXRV-DR-1830G-1000-A-

13-S2

 3000 90 420 16.9 549 7.1 77 G 876493
BXRV-DR-1830G-1000-B-

13-S2

 3000 90 360 32.9 961 11.9 81 G 876495
BXRV-DR-1830H-1000-G-

13-S2

 3000 95 300 16.7 345 5.0 68 G 876511
BXRV-DR-1830H-1000-A-

13-S2

 3000 95 420 16.9 483 7.1 68 G 876507
BXRV-DR-1830H-1000-B-

13-S2

 3000 95 230 31.3 568 7.2 78 G 876509



Table 3: Electrical Characteristics

Part Number Drive

Current

(mA)

 Forward Voltage

Pulsed, Tc = 25.C 1, 2, 3, 7

 Typical

Coefficient

of Forward

Voltage

∆Vf/∆Tc

(mV/ºC)

 Typical

Thermal

Resistance

Junction to

Case 4, 5

(ºC/W)

 Driver Selection

Voltages 6
Minimum

(V)

 Typical

(V)

 Maximum

(V)
Vf Min. Hot

Tc = 105ºC

(V)

 Vf Max. Cold

Tc = -40ºC

(V)
BXRV-DR-18xxx-1000-G-

13-S2

 250 15.5 17.0 18.5 -6.1 1.38 15.0 18.9
300 15.6 17.1 18.6 -6.1 1.43 15.1 19.0
BXRV-DR-18xxx-1000-A-

13-S2

 350 15.5 17.0 18.5 -6.1 0.89 15.0 18.9
420 15.8 17.3 18.8 -6.1 0.92 15.3 19.2
BXRV-DR-18xxx-1000-B-

13-S2

 350 30.6 33.8 37.0 -12.1 0.41 29.6 37.8
420 31.2 34.4 37.6 -12.1 0.42 30.2 38.4



Table 4: Maximum Ratings

Parameter Maximum Rating
LED Junction Temperature (Tj) 125°C
Storage Temperature -40.C to +105.C
Operating Case Temperature1 (Tc) 105°C
BXRV-DR-18xxx-1000-G-13-S2 BXRV-DR-18xxx-1000-A-13-S2 BXRV-DR-18xxx-1000-B-13-S2
Maximum Drive Current3 300mA 420mA 420mA
Maximum Peak Pulsed Drive Current4 600mA 600mA 600mA
Maximum Reverse Voltage5 -30V -30V -60V
