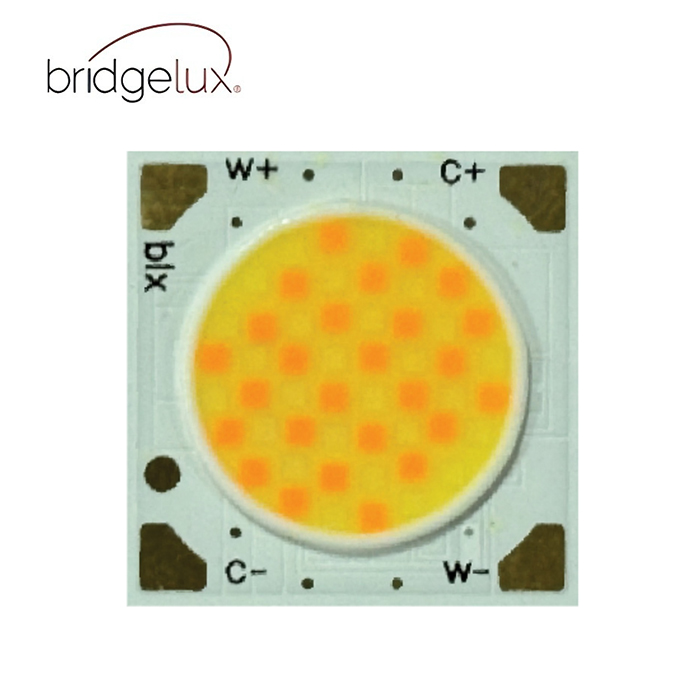

Bridgelux® Vesta® Series Tunable White HD TW 13mm Array
Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform. The arrays incorporate several features to simplify design integration and assembly.
| Product Family | Product | Part Number | Doc Number | LES Size (mm) | Typ. Flux (lm) | If (mA) | Vf (V) | Power (W) | Efficacy (lm/W) | Substrate Size (mm) | CCT Range (K) | CRI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRV Vesta TW | Vesta Tunable White HD 13mm | BXRV-TR-2765G-20D0-A-3X | DS1753 | 13 | 3557 | 700 | 37.1 | 26 | 137 | 18.8×18.8 | 2700-6500 | 90 |
Table 1: Selection Guide, Measurement Data(Tj = Tc = 25°C)
| Part Number | Nominal
CCT 1 Tc=25°C (K) |
CRI2
Tc=85°C |
Nominal
Drive Current, per channel (mA) |
Typical Vf 3
Tc=25°C (V) |
Typical
Power Tc=25°C (W) |
Typical
Pulsed Flux 3, 4, 5 T =25°C |
Typical
Efficacy Tc=25°C (lm/W) |
Minimum
Pulsed Flux 8 T =25°C |
| BXRV-TR-2765G-20D0-A-3X | 2700 | 90 | 700 | 37.1 | 26.0 | 2863 | 110 | 2577 |
| 6500 | 90 | 700 | 37.1 | 26.0 | 3557 | 137 | 3202 |
Table 2: Selection Guide, Measurement Data(Tj = Tc = 85°C)
| Part Number | Nominal
CCT 1 Tc=85°C (K) |
CRI2
Tc=85°C |
Nominal
Drive Current, per channel (mA) |
Typical Vf 3
Tc=85°C (V) |
Typical
Power Tc=85°C (W) |
Typical
Pulsed Flux 3, 4, 5 T =85°C |
Typical
Efficacy Tc=85°C (lm/W) |
Minimum
Pulsed Flux 8 T =85°C |
| BXRV-TR-2765G-20D0-A-3X | 2700 | 90 | 700 | 36.0 | 25.2 | 2491 | 99 | 2242 |
| 6500 | 90 | 700 | 36.0 | 25.2 | 3045 | 121 | 2740 |
Table 4: Electrical Characteristics
| Part Number | CCT
Channel (K) |
Nominal
Drive Current (mA) |
Forward Voltage
Pulsed, Tc = 25ºC (V) 1, 2, 3 |
Typical Tem–
perature Coefficient of Forward Voltage 4 ∆Vf/∆Tc (mV/ºC) |
Driver Selection
Voltages6 (V) |
|||
| Minimum | Typical | Maximum | ||||||
| Vf Min. Hot
Tc = 105ºC (V) |
Vf Max.
Cold Tc = -40ºC (V) |
|||||||
| BXRV-TR-2765G-20D0-A-3X | 2700 | 700 | 34.9 | 37.1 | 39.3 | -15.0 | 33.7 | 40.3 |
| 6500 | 700 | 34.9 | 37.1 | 39.3 | -15.2 | 33.8 | 40.3 | |
Table 5: Maximum Ratings
| Parameter | Maximum Rating | |
| LED Junction Temperature (Tj) | 125.C | |
| Storage Temperature | -40.C to 85.C | |
| Operating Case Temperature1 (Tc) | 85.C | |
| Soldering Temperature2 | 350°C or lower for a maximum of
3 seconds with electric soldering iron |
|
| Maximum Total Drive Current4 | 1200 | |
| Channel 1
2700K |
Channel 2
6500K |
|
| Maximum Drive Current Per Channel3,4 | 1200mA | |
| Maximum Peak Pulsed Drive Current5 | 1500mA | |
