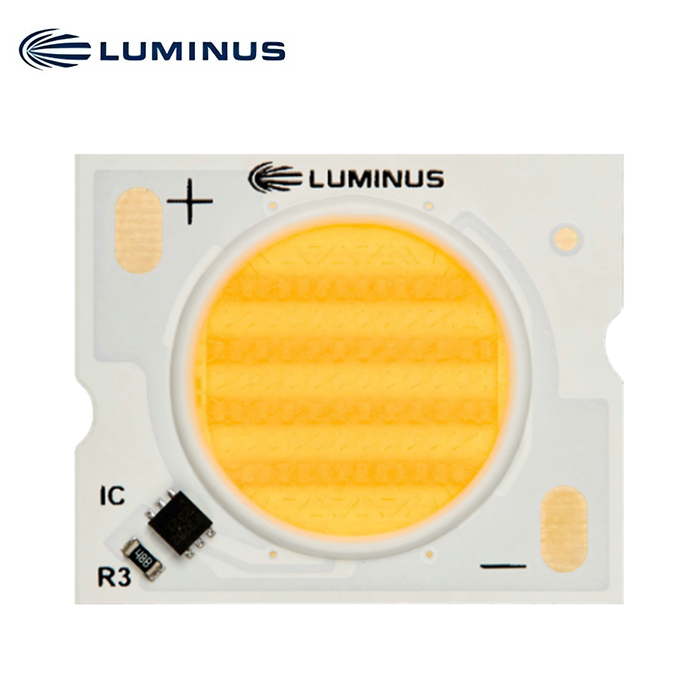

Warm Dimming Modules
Luminus Warm Dimming Modules set a new standard in LED technology by leveraging advanced color engineering and proprietary IC technology to precisely replicate the natural dim-to-warm behavior of traditional bulbs. With a seamless dynamic shift in CCT from 3000K to 1800K or 2700K to 1800K, these modules create inviting, human-centric environments. Luminus’ industry-leading color mixing technology ensures unparalleled beam uniformity for flawless lighting consistency, while the proprietary IC circuit delivers precision dimming control and flicker-free performance at every level, from low dimming to full brightness. As the only LED supplier offering a choice of halogen-like (-DWZ1) or linear-style (-DWZ2) dimming curves and both CCT ranges, Luminus provides unmatched flexibility for diverse applications. Factory-tested at 85ºC with an L90 >36K hour rating, these modules ensure efficiency, reliability, and DLC Premium certification for demanding applications.
APPLICATIONS
- Hospitality / hotel / restaurant lighting
- Residential lighting
- Retail shop lighting
- Public, commercial buildings
- Ceiling and wall mount lights
FEATURES
- Proprietary IC circuit provides smooth and flicker-free dimming even at low level
- Verified second optics that maximize beam uniformity
- Excellent beam uniformity with 10deg narrow spot optics
- Simplifies lamp and luminaire design
- Compatible with most single channel drivers and dimmer switches
- 3000 K to 1800 K or 2700 K to 1800 K warm dimming for residential and hospitality lighting
- Two dimming curve options: “halogen-like” -DWZ1 and “linear-style” -DWZ2
- Consistent white light <3 SDCM
- 100 % factory tested at 85ºC hot operating conditions
- CDM-14 DWZ2 option to be released in second half 2025
PRODUCT SELECTOR (GEN 2)
| Product Image | Part Number | Luminous
Efficacy @85°C |
Typical
Flux @ Tj=85 |
CRI (min) | CCT
@ Full Brightness |
Nominal
Power@ Full Brightness |
|---|---|---|---|---|---|---|
 |

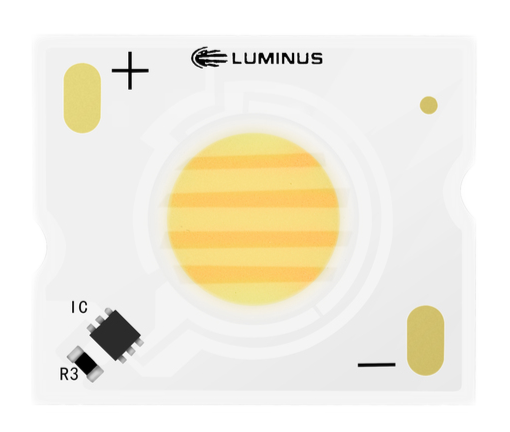

CDM-6-3018-90-18-DWZ1/2-F3-3 CDM-6-3020-90-18-DWZ1/2-F3-3 |
up to 119 lm/w | up to 1080 lm | 90 | 3000 K | 10.8 W |
|
CDM-6-2718-90-36-DWZ1/2-F3-3 CDM-6-3018-90-36-DWZ1/2-F3-3 CDM-6-3020-90-36-DWZ1/2-F3-3 |
up to 103 lm/w | up to 1060 lm | 90 | 3000 K | 10.8 W |
 |

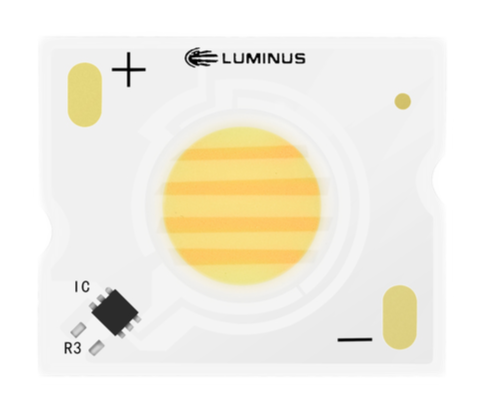

CDM-9-2718-90-36-DWZ1/2-F3-3 CDM-9-3018-90-36-DWZ1/2-F3-3 CDM-9-3020-90-36-DWZ1/2-F3-3 |
up to 124 lm/w | up to 1350 lm | 90 | 3000 K | 12.6 W |
 |

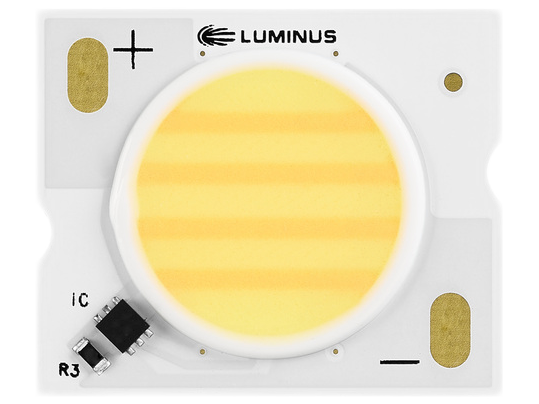

CDM-14-2718-90-36-DWZ1-F3-3 CDM-14-3018-90-36-DWZ1-F3-3 CDM-14-3020-90-36-DWZ1-F3-3 |
up to 125 lm/w | up to 2768 lm | 90 | 3000 K | 25.2 W |
PRODUCT SELECTOR (GEN 1)
Not recommended for new design
Download Luminus Warm Dimming COB Module Datasheet
| Product Image | Part Number | Luminous
Efficacy @85°C |
Typical
Flux @ Tj=85 |
CRI (min) | CCT
@ over 80% Flux |
Nominal
Input Power |
|---|---|---|---|---|---|---|
 |
CDM-6-3018-90-18-DW0x | 92 lm/W | 490 lm | 90 | 3000 K | 5.5 W |
|
CDM-6-4027-90-18-DW0x | 98 lm/W | 525 lm | 92 | 4000 K | 5.5 W |
 |
CDM-9-3018-90-36-DW0x | 87 lm/W | 925 lm | 95 | 3000 K | 11 W |
|
CDM-9-4027-90-36-DW0x | 98 lm/W | 1040 lm | 92 | 4000 K | 11 W |
 |
CDM-14-3018-90-36-DW0x | 87 lm/W | 1850 lm | 95 | 3000 K | 21.5 W |
|
CDM-14-4027-90-36-DW0x | 98 lm/W | 2085 lm | 92 | 4000 K | 21.5 W |
 |
CDM-18-3018-90-36-DW0x | 90 lm/W | 2875 lm | 95 | 3000 K | 32.5 W |
|
CDM-18-4027-90-36-DW0x | 100 lm/W | 3190 lm | 92 | 4000 K | 32.5 W |
