Done Power Supply has officially launched the EDC series, a new generation of high-efficiency DIN-rail industrial power supplies. Featuring an ultra-slim profile, the series delivers stable output across a wide temperature range (-40°C to +70°C), providing a highly reliable power solution for compact industrial control systems.
I. Core Design: A Space-Saving Revolution Starting at 17.5mm

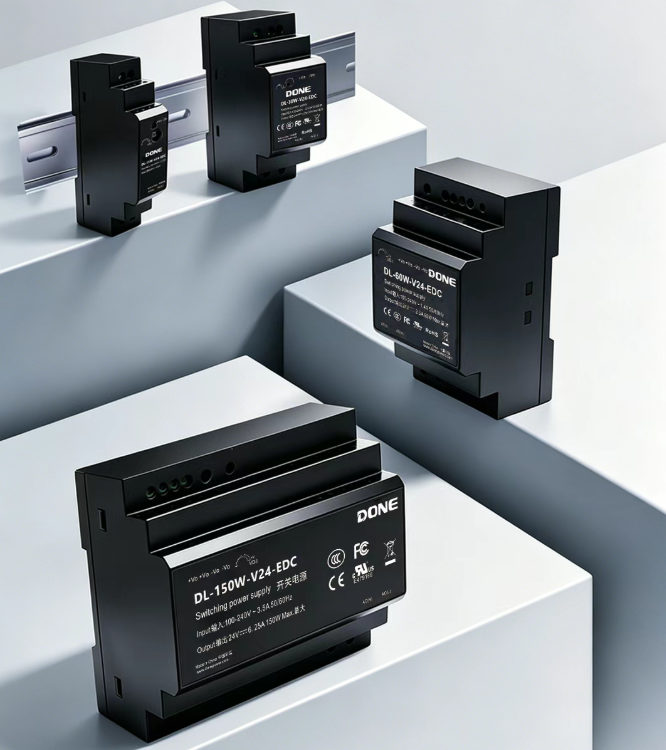

The standout advantage of the Done Power Supply EDC series is its exceptionally compact size. The series offers five power ratings ranging from 15W to 150W, with widths spanning 17.5mm to 105mm-saving 35% of DIN-rail space compared to traditional power supplies of the same wattage. On a standard TS-35 rail, up to fifty-seven 15W units can be installed per meter, leaving ample room for other components within the cabinet.
This performance is achieved through an active-clamp flyback topology and planar transformer technology; the switching frequency is boosted to 132kHz, achieving a peak conversion efficiency of 92%. Higher efficiency directly reduces heat dissipation requirements. Under conditions of 230Vac input and 24V full load, the 150W model’s casing reaches a maximum temperature of only 61.2°C (at an ambient temperature of 25°C), allowing for natural air cooling without the need for additional heatsinks. For production line retrofit projects, this slim design enables engineers to add power modules without altering existing wiring, thereby directly reducing retrofit costs and installation time.
II. Installation and Maintenance: 90% Efficiency Gain
The Done Power Supply EDC series is fully compatible with TS-35/15 and TS-35/7.5 standard DIN rails and utilizes a tool-free, snap-in mounting mechanism. The process-from unboxing to installation-takes less than 8 seconds per unit, cutting installation time by 90% compared to traditional screw-mount methods. The spring-clamp terminals withstand a 15N pull force without loosening and maintain reliable contact during 8-hour vibration tests (10–500Hz, 5g acceleration), making them suitable for applications involving continuous vibration, such as construction machinery and CNC machine tools.
A DC status indicator on the front panel provides immediate feedback: a steady green light indicates normal output, flashing signals overload protection, and an unlit state indicates an input fault. Maintenance personnel can assess the power status within 10 seconds without point-by-point multimeter testing, significantly reducing troubleshooting time in densely wired installations.
III. Reliable Across Wide Temperature Ranges: Operation in Conditions from Extreme Cold to High Heat
Designed for the complex thermal environments of industrial sites, the Done Power Supply EDC series features an extended rated operating temperature range of -40°C to +70°C and a safe storage range of -40°C to +85°C. In -40°C environments, the unit starts up in just 1.2 seconds without voltage overshoot and can operate immediately under load, solving cold-start issues for outdoor equipment in northern regions. It maintains 100% rated power output at 70°C without derating; during 72-hour full-load burn-in tests, output voltage deviation remains within ±1% and ripple is kept below 80mVpp.
The input side features 2kV/4kV differential/common-mode surge protection, complying with the IEC 61000-4-5 lightning surge standard. The output side integrates triple protection-overvoltage, short-circuit, and overload-entering “hiccup mode” during faults and automatically recovering once the issue is resolved. The entire series holds six certifications (CCC, UL, CB, CE, FCC, RoHS) and meets EN 55035/55032 Class B electromagnetic compatibility standards, allowing for direct use in EMI-sensitive applications like medical equipment and laboratory instruments without interfering with nearby precision devices.
The product boasts a Mean Time Between Failures (MTBF) of 50,000 hours (Ta=35°C, 230Vac) and comes with a 3-year warranty from DONE.
IV. Typical Application Scenarios
* Automation Control: Compact PLC cabinets, distributed I/O, industrial robot controllers;
* Communication Equipment: Industrial switches, 5G micro-base stations, gateway devices;
* New Energy: PV combiner boxes, energy storage BMS, charging pile control modules;
* Medical Equipment: In-vitro diagnostic (IVD) equipment, auxiliary power for patient monitors;
* Power Equipment: Smart meters, power distribution terminals, relay protection devices;
* Vehicle Engineering: Control units for engineering vehicles, rail transit signaling equipment.
V. Comprehensive Product Portfolio Meeting Mainstream Needs
The Done Power Supply EDC series features a wide input voltage range (100–240 VAC) compatible with global grid standards. It offers six output voltage options-5V, 12V, 15V, 24V, 36V, and 48V-covering the vast majority of power supply requirements in the industrial control sector.
The launch of the Done Power Supply EDC series marks the entry of DIN-rail power supplies into an era of competition based on centimeter-scale dimensions. While matching the compact size specifications of imported brands, the series offers superior cost-efficiency, providing a viable solution for high-end domestic substitution in the industrial power supply market.
Industrial power supply is the foundation of stable automation system operation. The EDC series strikes an excellent balance between miniaturization and reliability, offering a new choice for power supply design in compact industrial control systems.
Tip: It is recommended to leave a 10mm ventilation gap above and below the unit during installation. When used in parallel, configuring an external redundancy module is recommended to enhance system reliability. Please contact Gainer LED for further product inquiries.
