Description

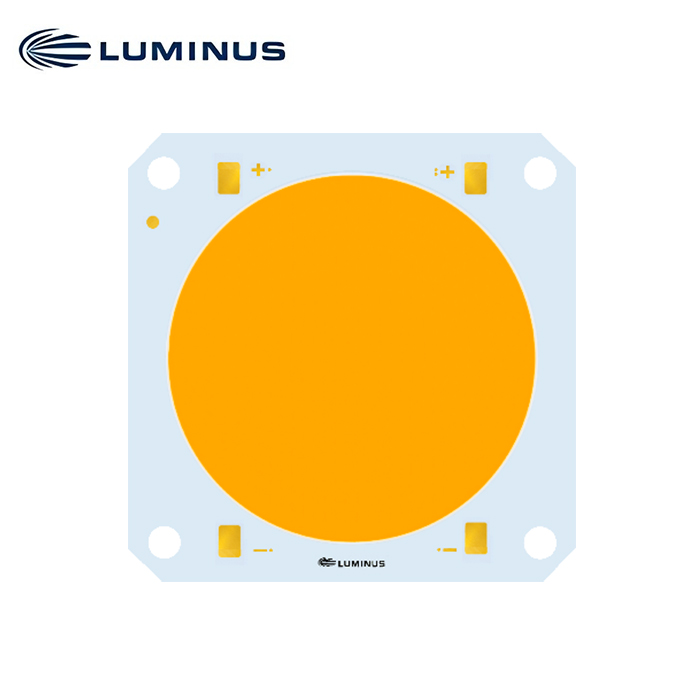

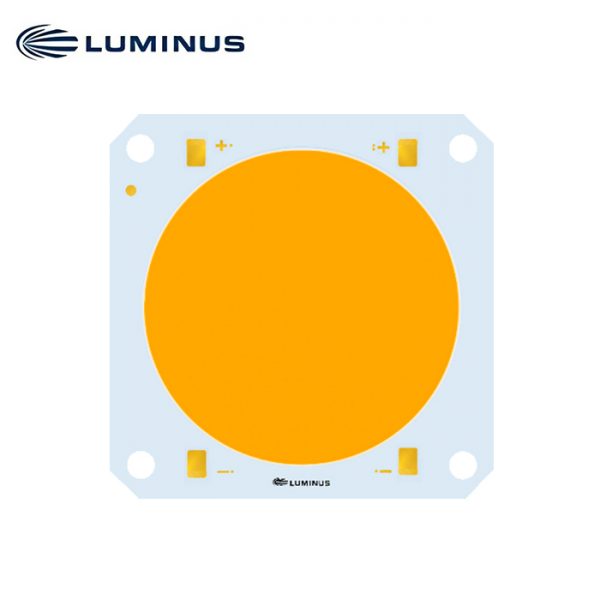

Generation 4 CVM-45 COB LED Arrays Entertainment Lighting
Features
• 600W High Lumen Output, Directional Light Source
• 3150K and 5600K CCT
• Up to 57,000 lm @ 5600K, and over 54,000 lm @ 3150K ,Tj = 85ºC
• 90 TLCI and 95 CRI minimums
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability, > 20k hours with over 90% lumen maintenance
• Color drift with temperature and time, extremely stable
• Extended thermal operating range up to Tc =120ºC
• Environmentally friendly: RoHS and REACH compliant
Applications
• TV Studio
• Film Production
• Still Photography
• Stage/Set Lights
• Architectural/Hospitality
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 5A and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85ºC) |
Min.
(85ºC) |
Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 3150K | 28,700 | 26,700 | 31,600 | 95 | CVM-45-31-95-60-BA40-F5-3 | CVM-45-31-95-60-BA40-F5-2 |
| 5600K | 33,200 | 30,900 | 36,500 | 95 | CVM-45-56-95-60-BA42-F5-3 | CVM-45-56-95-60-BA42-F5-2 |
CVM-45 Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current1,2 | If | 5.0 | 10.0 | A | |
| Forward Voltage3 | Vf | 56.0 | 59.0 | 64.0 | V |
| Power | 295.0 | 600 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 45.0 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.07 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
