Description

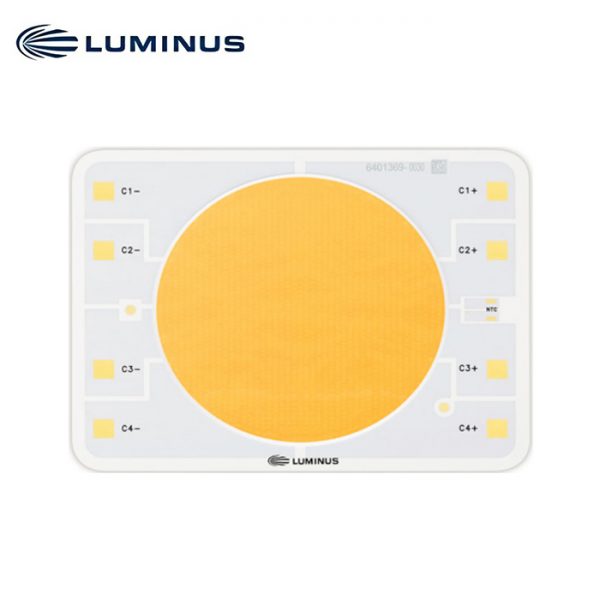

Generation 5 CVM-53 COB Arrays LED LED Entertainment Lighting
Features
• High lumen output
• Typical 53,000 lm @ 3150K, 6A@85°C
• Typical 61,000 lm @ 5600K, 6A@85°C
• 95 CRI minimum
• 95 TLCI minimum
• Excellent solution for very high power COB
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• ENEC License Number: ENEC-04137
Applications
• TV Studio
• Film Production
• Still Photography
• Stage/Set Lights
• Architectural/Hospitality
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 6 A and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹(lm) | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 95 | 3150K | 53000 | 49300 | 58300 | CVM-53-31-95-90-BA50-F6-3 | CVM-53-31-95-90-BA50-F6-2 |
| 5600K | 64000 | 56700 | 67100 | CVM-53-56-95-90-BA52-F6-3 | CVM-53-56-95-90-BA52-F6-2 | |
Absolute Maximum Ratings¹
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 6.0 | A |
| Maximum | If max | 16.0 | ||
| Power Dissipation | Typical | Pd typ | 504 | W |
| Maximum | Pd max | 1400 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
Characteristics
| Parameter | Symbol | Value | Unit | |
| Light Emitting Surface Diameter | LES | 53.0 | mm | |
| Forward Voltage | Minimum | Vf min | 78 | V |
| Typical | Vf typ | 86 | ||
| Maximum | Vf max | 94 | ||
| Thermal Resistance | Rth J-C | 0.09 | °C/W | |
| Viewing Angle | 2θ1/2 | 120 | ° | |
