Description

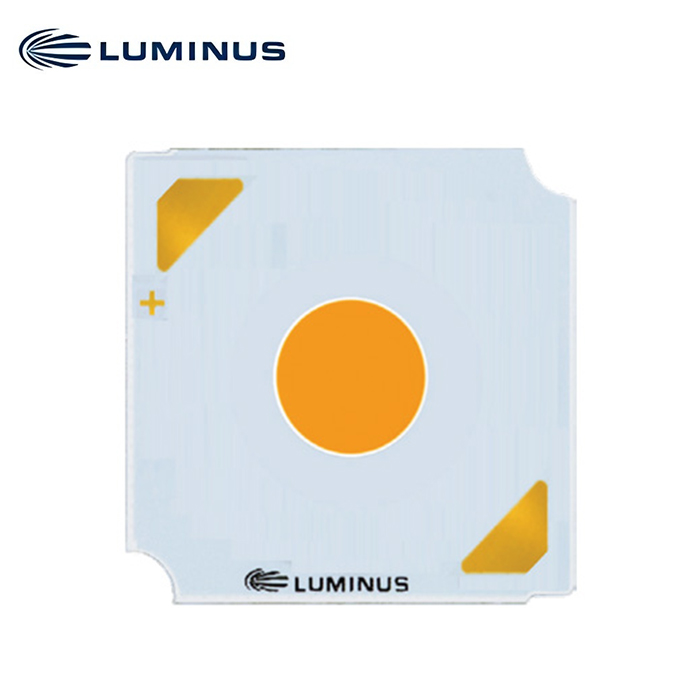

Generation 6 CXM-4 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 475 lm, 119 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Hotel Lighting
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
Ordering Part Numbers -TE60 – 9V
The following tables describe products with typical flux and minimum flux measured at 480 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 390 | 365 | 430 | CXM-4-22-90-9-TE60-F7-3 | CXM-4-22-90-9-TE60-F7-2 |
| 90 | 2400K | 425 | 395 | 465 | CXM-4-24-90-9-TE60-F7-3 | CXM-4-24-90-9-TE60-F7-2 |
| 80 | 2700K | 515 | 480 | 565 | CXM-4-27-80-9-TE60-F7-3 | CXM-4-27-80-9-TE60-F7-2 |
| 90 | 460 | 425 | 505 | CXM-4-27-90-9-TE60-F7-3 | CXM-4-27-90-9-TE60-F7-2 | |
| 95 | 385 | 355 | 420 | CXM-4-27-95-9-TE60-F7-3 | CXM-4-27-95-9-TE60-F7-2 | |
| 80 | 3000K | 545 | 505 | 600 | CXM-4-30-80-9-TE60-F7-3 | CXM-4-30-80-9-TE60-F7-2 |
| 90 | 475 | 440 | 520 | CXM-4-30-90-9-TE60-F7-3 | CXM-4-30-90-9-TE60-F7-2 | |
| 95 | 405 | 375 | 445 | CXM-4-30-95-9-TE60-F7-3 | CXM-4-30-95-9-TE60-F7-2 | |
| 80 | 3500K | 555 | 515 | 610 | CXM-4-35-80-9-TE60-F7-3 | CXM-4-35-80-9-TE60-F7-2 |
| 90 | 485 | 455 | 535 | CXM-4-35-90-9-TE60-F7-3 | CXM-4-35-90-9-TE60-F7-2 | |
| 95 | 420 | 395 | 465 | CXM-4-35-95-9-TE60-F7-3 | CXM-4-35-95-9-TE60-F7-2 | |
| 80 | 4000K | 565 | 525 | 625 | CXM-4-40-80-9-TE60-F7-3 | CXM-4-40-80-9-TE60-F7-2 |
| 90 | 500 | 465 | 550 | CXM-4-40-90-9-TE60-F7-3 | CXM-4-40-90-9-TE60-F7-2 | |
| 95 | 445 | 415 | 490 | CXM-4-40-95-9-TE60-F7-3 | CXM-4-40-95-9-TE60-F7-2 | |
| 80 | 5000K | 575 | 535 | 635 | CXM-4-50-80-9-TE60-F7-3 | CXM-4-50-80-9-TE60-F7-2 |
| 90 | 495 | 460 | 545 | CXM-4-50-90-9-TE60-F7-3 | CXM-4-50-90-9-TE60-F7-2 | |
| 95 | 465 | 435 | 515 | CXM-4-50-95-9-TE60-F7-3 | CXM-4-50-95-9-TE60-F7-2 | |
| 80 | 6500K | 560 | 520 | 615 | CXM-4-65-80-9-TE60-F7-3 | CXM-4-65-80-9-TE60-F7-2 |
| 90 | 500 | 465 | 550 | CXM-4-65-90-9-TE60-F7-3 | CXM-4-65-90-9-TE60-F7-2 | |
Ordering Part Numbers – TE60 -18V
The following tables describe products with typical flux and minimum flux measured at 240 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 390 | 365 | 430 | CXM-4-22-90-18-TE60-F7-3 | CXM-4-22-90-18-TE60-F7-2 |
| 90 | 2400K | 425 | 395 | 465 | CXM-4-24-90-18-TE60-F7-3 | CXM-4-24-90-18-TE60-F7-2 |
| 80 | 2700K | 515 | 480 | 565 | CXM-4-27-80-18-TE60-F7-3 | CXM-4-27-80-18-TE60-F7-2 |
| 90 | 460 | 425 | 505 | CXM-4-27-90-18-TE60-F7-3 | CXM-4-27-90-18-TE60-F7-2 | |
| 95 | 385 | 355 | 420 | CXM-4-27-95-18-TE60-F7-3 | CXM-4-27-95-18-TE60-F7-2 | |
| 80 | 3000K | 545 | 505 | 600 | CXM-4-30-80-18-TE60-F7-3 | CXM-4-30-80-18-TE60-F7-2 |
| 90 | 475 | 440 | 520 | CXM-4-30-90-18-TE60-F7-3 | CXM-4-30-90-18-TE60-F7-2 | |
| 95 | 405 | 375 | 445 | CXM-4-30-95-18-TE60-F7-3 | CXM-4-30-95-18-TE60-F7-2 | |
| 80 | 3500K | 555 | 515 | 610 | CXM-4-35-80-18-TE60-F7-3 | CXM-4-35-80-18-TE60-F7-2 |
| 90 | 485 | 455 | 535 | CXM-4-35-90-18-TE60-F7-3 | CXM-4-35-90-18-TE60-F7-2 | |
| 95 | 420 | 395 | 465 | CXM-4-35-95-18-TE60-F7-3 | CXM-4-35-95-18-TE60-F7-2 | |
| 80 | 4000K | 565 | 525 | 625 | CXM-4-40-80-18-TE60-F7-3 | CXM-4-40-80-18-TE60-F7-2 |
| 90 | 500 | 465 | 550 | CXM-4-40-90-18-TE60-F7-3 | CXM-4-40-90-18-TE60-F7-2 | |
| 95 | 445 | 415 | 490 | CXM-4-40-95-18-TE60-F7-3 | CXM-4-40-95-18-TE60-F7-2 | |
| 80 | 5000K | 575 | 535 | 635 | CXM-4-50-80-18-TE60-F7-3 | CXM-4-50-80-18-TE60-F7-2 |
| 90 | 495 | 460 | 545 | CXM-4-50-90-18-TE60-F7-3 | CXM-4-50-90-18-TE60-F7-2 | |
| 95 | 465 | 435 | 515 | CXM-4-50-95-18-TE60-F7-3 | CXM-4-50-95-18-TE60-F7-2 | |
| 80 | 6500K | 560 | 520 | 615 | CXM-4-65-80-18-TE60-F7-3 | CXM-4-65-80-18-TE60-F7-2 |
| 90 | 500 | 465 | 550 | CXM-4-65-90-18-TE60-F7-3 | CXM-4-65-90-18-TE60-F7-2 | |
Ordering Part Numbers – TE60 – 36V
The following tables describe products with typical flux and minimum flux measured at 120 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 390 | 365 | 430 | CXM-4-22-90-36-TE60-F7-3 | CXM-4-22-90-36-TE60-F7-2 |
| 90 | 2400K | 425 | 395 | 465 | CXM-4-24-90-36-TE60-F7-3 | CXM-4-24-90-36-TE60-F7-2 |
| 80 | 2700K | 515 | 480 | 565 | CXM-4-27-80-36-TE60-F7-3 | CXM-4-27-80-36-TE60-F7-2 |
| 90 | 460 | 425 | 505 | CXM-4-27-90-36-TE60-F7-3 | CXM-4-27-90-36-TE60-F7-2 | |
| 95 | 385 | 355 | 420 | CXM-4-27-95-36-TE60-F7-3 | CXM-4-27-95-36-TE60-F7-2 | |
| 80 | 3000K | 545 | 505 | 600 | CXM-4-30-80-36-TE60-F7-3 | CXM-4-30-80-36-TE60-F7-2 |
| 90 | 475 | 440 | 520 | CXM-4-30-90-36-TE60-F7-3 | CXM-4-30-90-36-TE60-F7-2 | |
| 95 | 405 | 375 | 445 | CXM-4-30-95-36-TE60-F7-3 | CXM-4-30-95-36-TE60-F7-2 | |
| 80 | 3500K | 555 | 515 | 610 | CXM-4-35-80-36-TE60-F7-3 | CXM-4-35-80-36-TE60-F7-2 |
| 90 | 485 | 455 | 535 | CXM-4-35-90-36-TE60-F7-3 | CXM-4-35-90-36-TE60-F7-2 | |
| 95 | 420 | 395 | 465 | CXM-4-35-95-36-TE60-F7-3 | CXM-4-35-95-36-TE60-F7-2 | |
| 80 | 4000K | 565 | 525 | 625 | CXM-4-40-80-36-TE60-F7-3 | CXM-4-40-80-36-TE60-F7-2 |
| 90 | 500 | 465 | 550 | CXM-4-40-90-36-TE60-F7-3 | CXM-4-40-90-36-TE60-F7-2 | |
| 95 | 445 | 415 | 490 | CXM-4-40-95-36-TE60-F7-3 | CXM-4-40-95-36-TE60-F7-2 | |
| 80 | 5000K | 575 | 535 | 635 | CXM-4-50-80-36-TE60-F7-3 | CXM-4-50-80-36-TE60-F7-2 |
| 90 | 495 | 460 | 545 | CXM-4-50-90-36-TE60-F7-3 | CXM-4-50-90-36-TE60-F7-2 | |
| 95 | 465 | 435 | 515 | CXM-4-50-95-36-TE60-F7-3 | CXM-4-50-95-36-TE60-F7-2 | |
| 80 | 6500K | 560 | 520 | 615 | CXM-4-65-80-36-TE60-F7-3 | CXM-4-65-80-36-TE60-F7-2 |
| 90 | 500 | 465 | 550 | CXM-4-65-90-36-TE60-F7-3 | CXM-4-65-90-36-TE60-F7-2 | |
Ordering Part Numbers – TE62 Sensus (BBBL) – 9 V/18 V/36V
The following tables describe products with typical flux and minimum flux measured at typical current and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 435 | 405 | 480 | CXM-4-27-90-9-TE62-F7-3 | CXM-4-27-90-9-TE62-F7-2 |
| CXM-4-27-90-18-TE62-F7-3 | CXM-4-27-90-18-TE62-F7-2 | |||||
| CXM-4-27-90-36-TE62-F7-3 | CXM-4-27-90-36-TE62-F7-2 | |||||
| 3000K | 460 | 430 | 510 | CXM-4-30-90-9-TE62-F7-3 | CXM-4-30-90-9-TE62-F7-2 | |
| CXM-4-30-90-18-TE62-F7-3 | CXM-4-30-90-18-TE62-F7-2 | |||||
| CXM-4-30-90-36-TE62-F7-3 | CXM-4-30-90-36-TE62-F7-2 | |||||
| 3500K | 475 | 440 | 520 | CXM-4-35-90-9-TE62-F7-3 | CXM-4-35-90-9-TE62-F7-2 | |
| CXM-4-35-90-18-TE62-F7-3 | CXM-4-35-90-18-TE62-F7-2 | |||||
| CXM-4-35-90-36-TE62-F7-3 | CXM-4-35-90-36-TE62-F7-2 | |||||
Ordering Part Numbers – TC61 -36V
The following tables describe products with typical flux and minimum flux measured at 120 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| MinimumCRI² | CCT | Luminous Flux¹ | Ordering Part Number | ||
| Typical Flux
(85°C) |
Minimum Flux
(85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | ||
| 90 | 2700K | 450 | 415 | 495 | CXM-4-27-90-36-TC61-F7-3 |
| 3000K | 470 | 435 | 515 | CXM-4-30-90-36-TC61-F7-3 | |
| 3500K | 480 | 445 | 530 | CXM-4-35-90-36-TC61-F7-3 | |
| 4000K | 490 | 455 | 540 | CXM-4-40-90-36-TC61-F7-3 | |
| 95 | 2700K | 380 | 350 | 420 | CXM-4-27-95-36-TC61-F7-3 |
| 3000K | 400 | 370 | 440 | CXM-4-30-95-36-TC61-F7-3 | |
| 3500K | 410 | 380 | 450 | CXM-4-35-95-36-TC61-F7-3 | |
| 4000K | 440 | 410 | 485 | CXM-4-40-95-36-TC61-F7-3 | |
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | R91 |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Absolute Maximum Ratings
9 V
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 480 | mA |
| Maximum | If max | 1600 | ||
| Power Dissipation | Typical | Pd typ | 4 | W |
| Maximum | Pd max | 7.5 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
18 V
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 240 | mA |
| Maximum | If max | 800 | ||
| Power Dissipation | Typical | Pd typ | 4 | W |
| Maximum | Pd max | 7.5 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
36 V
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 120 | mA |
| Maximum | If max | 400 | ||
| Power Dissipation | Typical | Pd typ | 4 | W |
| Maximum | Pd max | 7.5 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
