Description

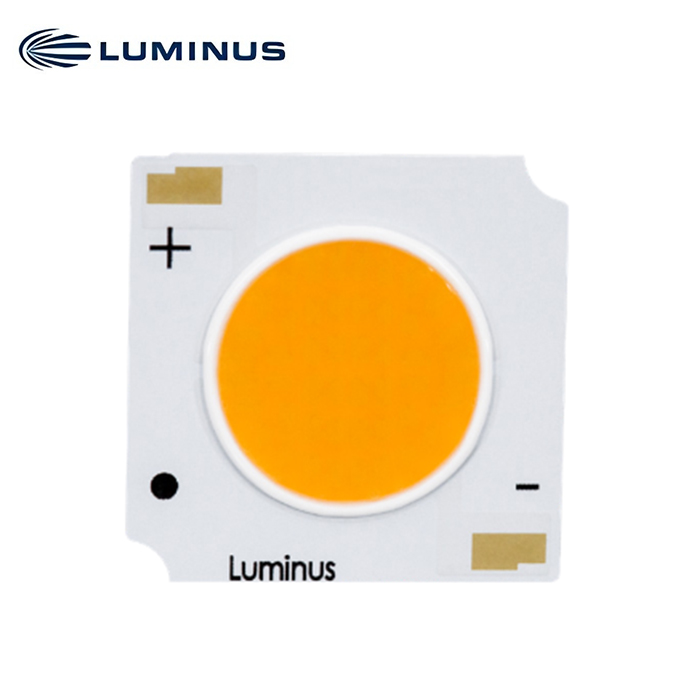

HIGH DENSITY GEN 2
Designed for the highest lumen density per emitter area providing highest center-beam-candle-power (CBCP).
APPLICATIONS
- Retail/Commercial
- Track/Spot
- Accent Lighting
FEATURES
- Wide CCT and CRI selection
- >35,000 cd in 10° spot
- Lumen Density >7,000 lm/cm2
BENEFITS
- All the color quality of Standard Gen 2 COBs and with higher lumen density
- High lumen density allows a smaller optic and/or smaller beam spot
- Replicates the lumen punch of Metal Halide light sources
PRODUCT SELECTOR
| Product Image | Product Family | LES (mm) | Substrate Size (mm) | Power Range (W) | Flux Range @ 3000K 80CRI |
|---|---|---|---|---|---|
 |
CHM-6-XH | 6.3 | 13.5 * 13.5 | 13.2 – 21 | 1550 – 2200 |
 |
CHM-9-XH | 9 | 19 * 19 | 26.3 – 42 | 3200 – 4500 |
 |
CHM-11-XH | 11 | 19 * 19 | 39 – 57 | 4900 – 6900 |
 |
CHM-14-XH | 13.5 | 28 * 28 | 65 – 99 | 8000 – 11200 |
