Description

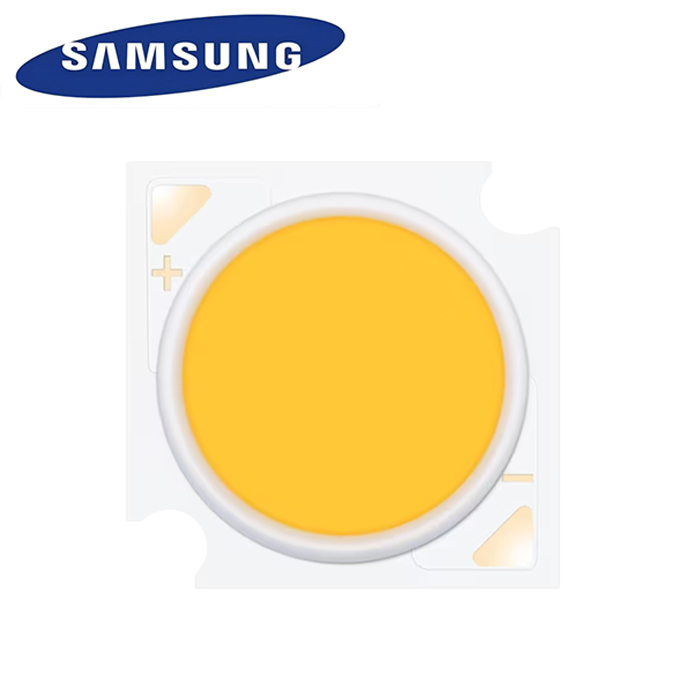

High Voltage LED Series Chip on Board-COB D-Gen.3 Plus
- 13 W class COB LED
- 2, 3-step MacAdam ellipse
- Size: 13.5 x 13.5 mm
Features & Benefits
• Chip on Board (COB) solution makes it easy to design in
• Simple assembly reduces manufacturing cost
• Low thermal resistance
• InGaN/GaN MQW LED with long time reliability
Applications
• Spotlight / Downlight
• LED Retrofit Bulbs
• Outdoor Illumination
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 360 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | TYP | |||
| 70 | 3000K | SPHWHAHDND23YZV2DC SPHWHAHDND23YZV3DC |
DC | 1972 | 2098 |
| 4000K | SPHWHAHDND23YZT2DC SPHWHAHDND23YZT3DC |
DC | 2005 | 2133 | |
| 5000K | SPHWHAHDND23YZR2DC SPHWHAHDND23YZR3DC |
DC | 2033 | 2162 | |
| 80 | 2700K | SPHWHAHDND25YZW1DC SPHWHAHDND25YZW2DC SPHWHAHDND25YZW3DC |
DC | 1757 | 1869 |
| 3000K | SPHWHAHDND25YZV1DC SPHWHAHDND25YZV2DC SPHWHAHDND25YZV3DC |
DC | 1828 | 1945 | |
| 3500K | SPHWHAHDND25YZU1DC SPHWHAHDND25YZU2DC SPHWHAHDND25YZU3DC |
DC | 1899 | 2020 | |
| 4000K | SPHWHAHDND25YZT1DC SPHWHAHDND25YZT2DC SPHWHAHDND25YZT3DC |
DC | 1933 | 2056 | |
| 5000K | SPHWHAHDND25YZR2DC SPHWHAHDND25YZR3DC |
DC | 1965 | 2090 | |
| 5700K | SPHWHAHDND25YZQ2DC SPHWHAHDND25YZQ3DC |
DC | 1934 | 2057 | |
| 6500K | SPHWHAHDND25YZP2DC SPHWHAHDND25YZP3DC |
DC | 1912 | 2034 | |
| 90 | 2700K | SPHWHAHDND27YZW1DC SPHWHAHDND27YZW2DC SPHWHAHDND27YZW3DC |
DC | 1484 | 1579 |
| 3000K | SPHWHAHDND27YZV1DC SPHWHAHDND27YZV2DC SPHWHAHDND27YZV3DC |
DC | 1561 | 1661 | |
| 3500K | SPHWHAHDND27YZU1DC SPHWHAHDND27YZU2DC SPHWHAHDND27YZU3DC |
DC | 1609 | 1712 | |
| 4000K | SPHWHAHDND27YZT1DC SPHWHAHDND27YZT2DC SPHWHAHDND27YZT3DC |
DC | 1644 | 1748 | |
| 5000K | SPHWHAHDND27YZR2DC SPHWHAHDND27YZR3DC |
DC | 1684 | 1792 | |
