Description

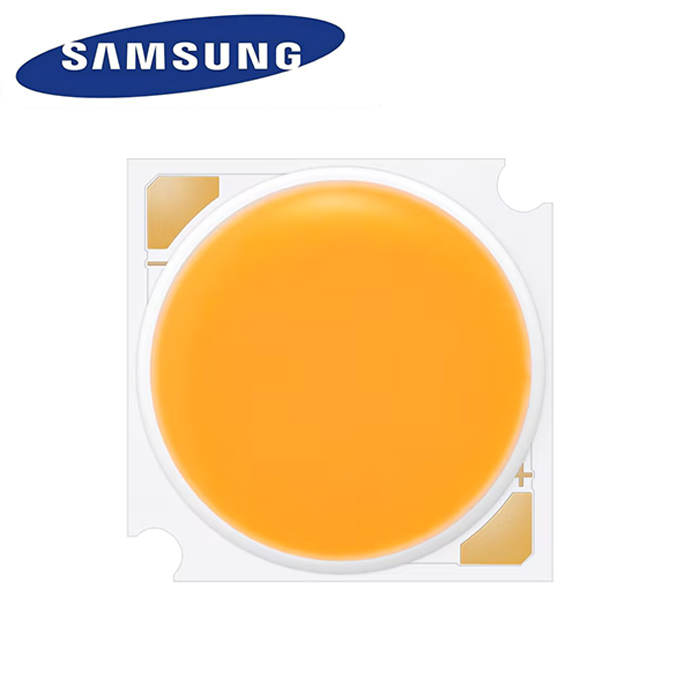

High Voltage LED Series Chip on Board–COB R-Series Gen4 Lean Meat
- Vivid White and Red
- Wattage: 13 W ~ 40 W
- Luminous Flux: 1499 lm (LC019D, 540 mA, 65℃)
Features & Benefits
- Chip on Board (COB) solution makes it easy to design in
- Simple assembly reduces manufacturing cost
- Low thermal resistance
- InGaN/GaN MQW LED with long time reliability
Applications
- Spotlight / Downlight
- LED Retrofit Bulbs
- Outdoor Illumination
| Item | Symbol | Model | Rating | Unit | Condition |
|---|---|---|---|---|---|
| Ambient / Operating Temperature | Ta | – | −40∼+105 | ∘C | – |
| Storage Temperature | Tstg | – | −40∼+120 | ∘C | – |
| LED Junction Temperature | TJ | – | 140 | ∘C | – |
| Case Temperature | TC | – | 105 | ∘C | – |
| Forward Current / Power Dissipation | IF/PD | LC013D | 920 / 33.7 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC016D | 1150 / 42.1 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC019D | 1380 / 50.5 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC026D | 1840 / 67.3 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC033D | 2300 / 84.2 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC040D | 2760 / 101.0 | mA / W | – |
| ESD (HBM) | – | – | ±2 | kV | – |
| Item | Unit | Model | Rank | Min. | Typ. | Max. |
|---|---|---|---|---|---|---|
| Forward Voltage (VF) | V | All model | YZ | 30.9 | 33.9 | 36.9 |
| Beam Angle | ∘ | – | – | – | 115 | – |
| Nominal Power / Sorting Current | W / mA | LC013D | – | – | 12.1 / 360 | – |
| Nominal Power / Sorting Current | W / mA | LC016D | – | – | 15.1 / 450 | – |
| Nominal Power / Sorting Current | W / mA | LC019D | – | – | 18.1 / 540 | – |
| Nominal Power / Sorting Current | W / mA | LC026D | – | – | 24.2 / 720 | – |
| Nominal Power / Sorting Current | W / mA | LC033D | – | – | 30.2 / 900 | – |
| Nominal Power / Sorting Current | W / mA | LC040D | – | – | 36.3 / 1080 | – |
| Thermal Resistance (Junction to chip case) | ∘C/W | LC013D | – | – | 1.53 | – |
| Thermal Resistance (Junction to chip case) | ∘C/W | LC016D | – | – | 1.21 | – |
| Thermal Resistance (Junction to chip case) | ∘C/W | LC019D | – | – | 1.08 | – |
| Thermal Resistance (Junction to chip case) | ∘C/W | LC026D | – | – | 0.85 | – |
| Thermal Resistance (Junction to chip case) | ∘C/W | LC033D | – | – | 0.72 | – |
| Thermal Resistance (Junction to chip case) | ∘C/W | LC040D | – | – | 0.57 | – |
| Model | Nominal CCT (K) | Flux Rank | Flux@TJ=65∘C (lm) Min. | Flux@TJ=65∘C (lm) Typ. | Flux@TJ=65∘C (lm) Max. |
|---|---|---|---|---|---|
| LC013D | Lean | D4 | 975 | 1037 | – |
| LC016D | Lean | D4 | 1206 | 1283 | – |
| LC019D | Lean | D4 | 1409 | 1499 | – |
| LC026D | Lean | D4 | 2086 | 2220 | – |
| LC033D | Lean | D4 | 2478 | 2636 | – |
| LC040D | Lean | D4 | 3035 | 3229 | – |
| Model | Nominal CCT(K) | Product Code | VF Rank | Color Rank | Flux Rank | Flux Range (Φv, lm) |
|---|---|---|---|---|---|---|
| LC013D | LMeat | SPHWHAHDND2VY2USD4 | YZ | US | D4 | 975 ~ |
| LC016D | LMeat | SPHWHAHDNE2VY2USD4 | YZ | US | D4 | 1206 ~ |
| LC019D | LMeat | SPHWHAHDNF2VY2USD4 | YZ | US | D4 | 1409 ~ |
| LC026D | LMeat | SPHWHAHDNG2VY2USD4 | YZ | US | D4 | 2086 ~ |
| LC033D | LMeat | SPHWHAHDNH2VY2USD4 | YZ | US | D4 | 2437 ~ |
| LC040D | LMeat | SPHWHAHDNK2VY2USD4 | YZ | US | D4 | 2924 ~ |
