Description

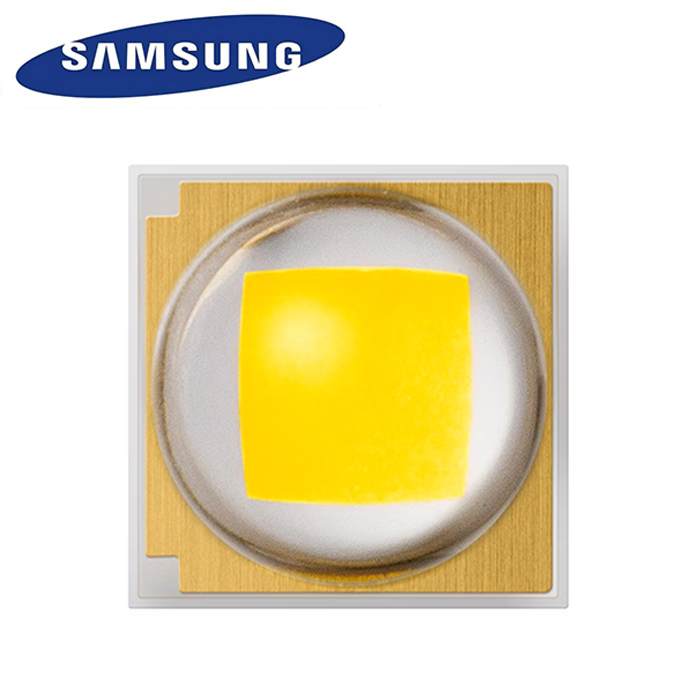

High Power LED Series 3535–LH351H-B
- Horticulture Lighting Solution
- PPF: 2.48 μmol/s @ 350 mA, 25°C
- Efficacy: 2.51 μmol/J
Features & Benefits
- Operates at a maximum current of up to 1.5 A
- Uniform light distribution under any beam angle
- Hot binning @ 85 ºC
- Completed 10,000 hours of LM-80 testing @ 1 A, 105°C
| Item | Symbol | Rating | Unit | Condition |
|---|---|---|---|---|
| Operating Temperature | Topt | −40∼+105 | ∘C | Note 1)* |
| Storage Temperature | Tstg | −40∼+120 | ∘C | – |
| LED Junction Temperature | Tj | 150 | ∘C | – |
| Forward Current | IF | 1500 | mA | – |
| Peak Pulse Forward Current | IFP | 2000 | mA | Duty 1/10 pulse width 10ms |
| Assembly Process Temperature | – | 260
<10 |
∘C
s |
– |
| ESD (HBM) | – | ±8 | kV | – |
| Item | Unit | Condition | Value | |||
|---|---|---|---|---|---|---|
| IF (mA) | Tj (∘C) | Min | Typ | Max | ||
| Forward Voltage | V | 350 | 85 | 2.5 | 3.0 | |
| Reverse Voltage (@ 5 mA) | V | 25 | 14 | 19.5 | ||
| Thermal Resistance (junction to solder point) | ∘C/W | 25 | 4 | |||
| Beam Angle | ∘ | 350 | 25 | 120 |
| Sorting @ 350 mA (Im) | Calculated Minimum Flux² (Im) | |||||
|---|---|---|---|---|---|---|
| Flux Rank | Flux Range¹ | Sub Rank | @ 350 mA | @ 700 mA | @ 1050 mA | @ 1500 mA |
| F3 | 90 ~ 120 | F1, G1, H1 | 90 | 163 | 214 | 289 |
| G3 | 100 ~ 130 | G1, H1, I8 | 100 | 181 | 238 | 322 |
| H3 | 110 ~ 140 | H1, J1, K1 | 110 | 199 | 262 | 354 |
| J3 | 120 ~ 150 | J1, K1, M1 | 120 | 217 | 286 | 386 |
| K3 | 130 ~ 160 | K1, M1, N1 | 130 | 235 | 310 | 418 |
| M3 | 140 ~ 170 | M1, N1, P1 | 135 | 250 | 354 | 474 |
| N3 | 150 ~ 180 | N1, P1, Q1 | 150 | 270 | 359 | 489 |
| P3 | 160 ~ 190 | P1, Q1, R1 | 160 | 288 | 382 | 518 |
| Q2 | 170 ~ 190 | Q1, R1 | 170 | 306 | 405 | 545 |
