Description

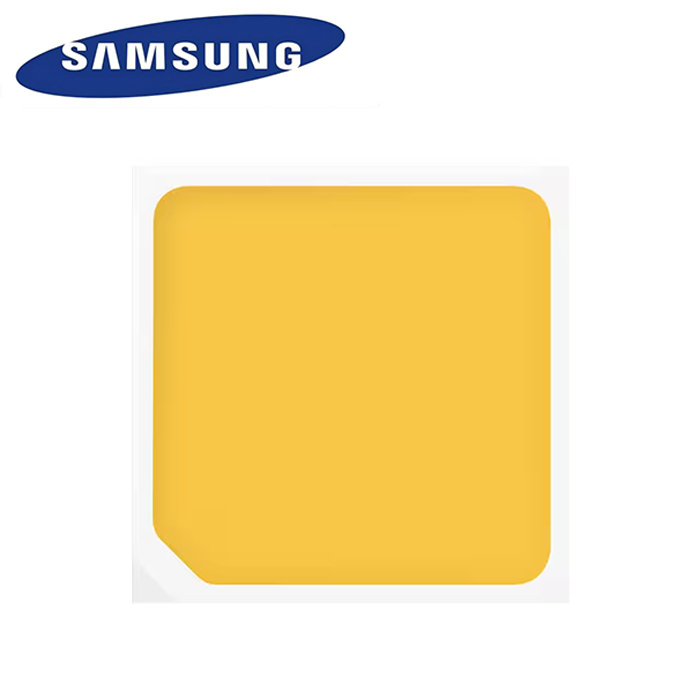

High Power LED Series–LH502C General
- Wattage (Max) : 5.6 W @ 880 mA
- Luminous Flux: 700 lm @ 640 mA
- Luminous Efficacy: 180 lm/W @ 640 mA
Features & Benefits
• Operates at a maximum current of up to 880mA
• Uniform light distribution under any beam angle
• Strengthened Anti sulfurization
• Color binning @ 85°C
High efficacy and lumen makes
The LH502C suitable for Streetlight and High-bay applications
| CRI | CCT | PART NUMBER | CHROM RANK | LUMINOUS FLUX (lm) @ 640 mA | |||
|---|---|---|---|---|---|---|---|
| RANK | BINS | MIN | MAX | ||||
| 70+ | 2200K | SPHWH1L5N603YEY3A2 SPHWH1L5N603YEY5A2 |
Y3 Y5 |
A2 | 51 55 |
510 550 |
550 590 |
| 2700K | SPHWH1L5N603YEW3A2 SPHWH1L5N603YEW5A2 |
W3 W5 |
A2 | 59 63 |
590 630 |
630 670 |
|
| 3000K | SPHWH1L5N603XEV3A2 SPHWH1L5N603XEV5A2 |
V3 V5 |
A2 | 62 66 |
620 660 |
660 700 |
|
| 3500K | SPHWH1L5N603YEU3A2 SPHWH1L5N603YEU5A2 |
U3 U5 |
A2 | 64 68 |
640 680 |
680 720 |
|
| 4000K | SPHWH1L5N603YET3A2 SPHWH1L5N603YET5A2 |
T3 T5 |
A2 | 66 70 |
660 700 |
700 740 |
|
| 5000K | SPHWH1L5N603YER3A2 SPHWH1L5N603YER5A2 |
R3 R5 |
A2 | 66 70 |
660 700 |
700 740 |
|
| 5700K | SPHWH1L5N603YEQ3A2 SPHWH1L5N603YEQ5A2 |
Q3 Q5 |
A2 | 64 68 |
640 680 |
680 720 |
|
| 6500K | SPHWH1L5N603YEP3A2 SPHWH1L5N603YEP5A2 |
P3 P5 |
A2 | 63 67 |
630 670 |
670 710 |
|
| 80+ | 2200K | SPHWH1L5N605YEY3A2 SPHWH1L5N605YEY5A2 |
Y3 Y5 |
A2 | 44 48 |
440 480 |
480 520 |
| 2700K | SPHWH1L5N605YEW3A2 SPHWH1L5N605YEW5A2 |
W3 W5 |
A2 | 53 57 |
530 570 |
570 610 |
|
| 3000K | SPHWH1L5N605YEV3A2 SPHWH1L5N605YEV5A2 |
V3 V5 |
A2 | 55 59 |
550 590 |
590 630 |
|
| 3500K | SPHWH1L5N605YEU3A2 SPHWH1L5N605YEU5A2 |
U3 U5 |
A2 | 58 62 |
580 620 |
620 660 |
|
| 4000K | SPHWH1L5N605YET3A2 SPHWH1L5N605YET5A2 |
T3 T5 |
A2 | 60 64 |
600 640 |
640 680 |
|
| 5000K | SPHWH1L5N605YER3A2 SPHWH1L5N605YER5A2 |
R3 R5 |
A2 | 60 64 |
600 640 |
640 680 |
|
| 5700K | SPHWH1L5N605YEQ3A2 SPHWH1L5N605YEQ5A2 |
Q3 Q5 |
A2 | 59 63 |
590 630 |
630 670 |
|
| 6500K | SPHWH1L5N605YEP3A2 SPHWH1L5N605YEP5A2 |
P3 P5 |
A2 | 59 63 |
590 630 |
630 670 |
|
| 90+ | 2200K | SPHWH1L5N607YEY3A2 SPHWH1L5N607YEY5A2 |
Y3 Y5 |
A2 | 40 44 |
400 440 |
440 480 |
| 2700K | SPHWH1L5N607YEW3A2 SPHWH1L5N607YEW5A2 |
W3 W5 |
A2 | 45 49 |
450 490 |
490 530 |
|
| 3000K | SPHWH1L5N607YEV3A2 SPHWH1L5N607YEV5A2 |
V3 V5 |
A2 | 47 51 |
470 510 |
510 550 |
|
| 3500K | SPHWH1L5N607YEU3A2 SPHWH1L5N607YEU5A2 |
U3 U5 |
A2 | 48 52 |
480 520 |
520 560 |
|
| 4000K | SPHWH1L5N607YET3A2 SPHWH1L5N607YET5A2 |
T3 T5 |
A2 | 49 53 |
490 530 |
530 570 |
|
| 5000K | SPHWH1L5N607YER3A2 SPHWH1L5N607YER5A2 |
R3 R5 |
A2 | 49 53 |
490 530 |
530 570 |
|
| 5700K | SPHWH1L5N607YEQ3A2 SPHWH1L5N607YEQ5A2 |
Q3 Q5 |
A2 | 49 53 |
490 530 |
530 570 |
|
