Description

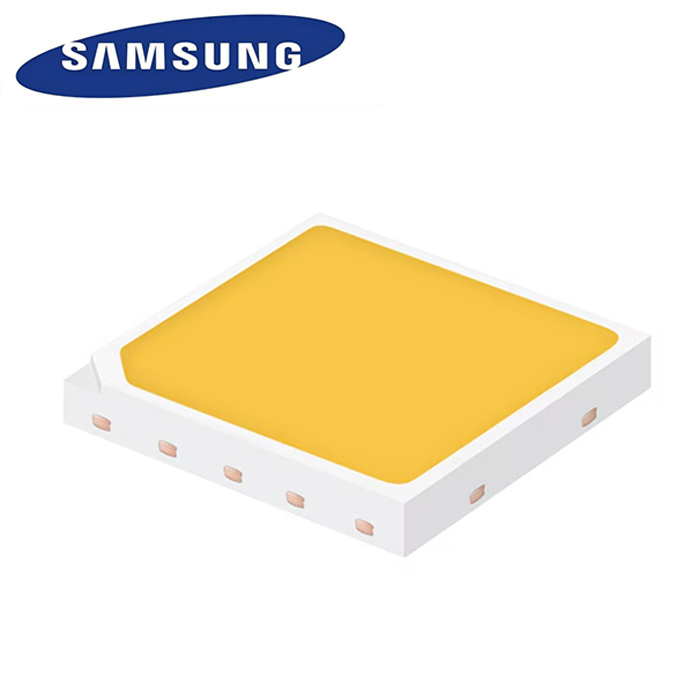

High Power LED Series–LH502HD Horticulture
- Horticulture Lighting Solution
- 5.36 μmol/s, 2.69 μmol/J @ 350 mA, 25°C
- Anti-sulfurization
Features & Benefits
- Operates at a maximum current of up to 1000mA
- Uniform light distribution under any beam angle
- Strengthened Anti sulfurization
- Color binning @ 85°C
| Item | Symbol | Rating | Unit | Condition |
|---|---|---|---|---|
| Operating Temperature | Topt | −40∼+105 | ∘C | |
| Storage Temperature | Tstg | −40∼+100 | ∘C | – |
| LED Junction Temperature | Tj | 125 | ∘C | – |
| Forward Current | IF | 1000 | mA | – |
| Peak Pulse Forward Current | Ipp | 1250 | mA | Duty cycle≤1/10, pulse width 10ms |
| Soldering Temperature | – | 260 <10 | ∘C | – |
| Electrostatic Discharge Withstand Voltage(HBM) | ESD(HBM) | ±8 (Class 3B) | kV | – |
| Item | Unit | Rank | Min. | Typ. | Max. |
|---|---|---|---|---|---|
| Forward Voltage (VF) | V | YB | 5.60 | – | 6.00 |
| PPF (3000K) | μmol/s | 3000K | 4.75 | – | 5.35 |
| PPF (4000K) | μmol/s | 4000K | 4.90 | – | 5.50 |
| PPF (5000K) | μmol/s | 5000K | 5.05 | – | 5.65 |
| PPF (6500K) | μmol/s | 6500K | 5.05 | – | 5.65 |
| Thermal Resistance (junction to chip point) | ∘C/W | – | – | 3 | – |
| Beam Angle | ∘ | – | – | 120 | – |
| Nominal CCT(K) | Product Code | VF Rank | Chrom Rank (Bins) | PPF Rank | PPF Bins | PPF Range (PPF, μmol/s) |
|---|---|---|---|---|---|---|
| 3000 | SPHWHL2L5N6H0YBV3A3 | YB | T3, T5 | A3 | 48 | 4.75 – 5.05 |
| 3000 | SPHWHL2L5N6H0YBV5A3 | YB | T3, T5 | A3 | 51 | 5.05 – 5.35 |
| 4000 | SPHWHL2L5N6H0YBT3A3 | YB | T3, T5 | A3 | 49 | 4.90 – 5.20 |
| 4000 | SPHWHL2L5N6H0YBT5A3 | YB | T3, T5 | A3 | 52 | 5.20 – 5.50 |
| 5000 | SPHWHL2L5N6H0YBR3A3 | YB | T3, T5 | A3 | 51 | 5.05 – 5.35 |
| 5000 | SPHWHL2L5N6H0YBR5A3 | YB | T3, T5 | A3 | 54 | 5.35 – 5.65 |
| 6500 | SPHWHL2L5N6H0YBP3A3 | YB | T3, T5 | A3 | 51 | 5.05 – 5.35 |
| 6500 | SPHWHL2L5N6H0YBP5A3 | YB | T3, T5 | A3 | 54 | 5.35 – 5.65 |
