Description

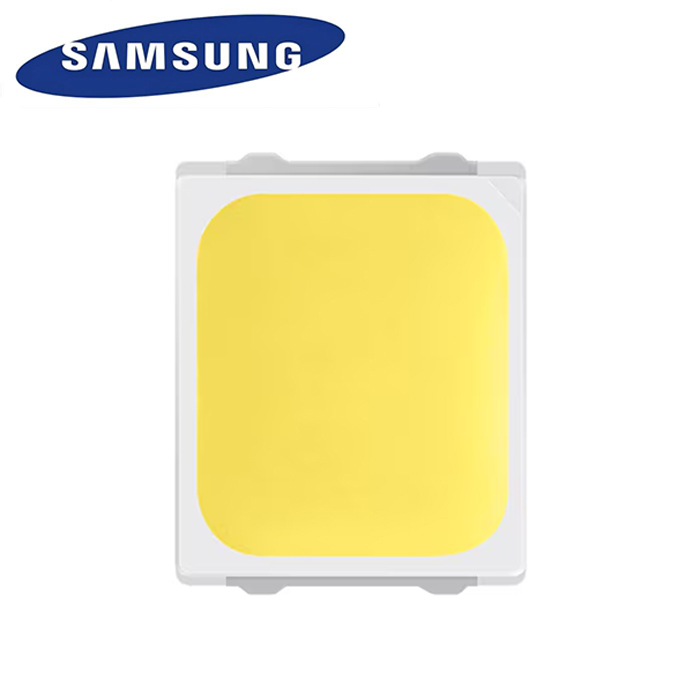

Middle Power LED Series 2835 18V Hot temp CIE
- 0.9 W, 18 V mid power LED
- Luminous Flux: 85 lm @ 50 mA
- Luminous Efficacy: 94 lm/W
- 0.9W High-Voltage LED
- Standard form factor for design flexibility (2.8 x 3.5)
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 50 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | MAX | |||
| 80+ | 2700K | SPMWH12245Q5W8W0SA SPMWH12245Q5W8W0SB |
SA SB |
110 126 |
120 136 |
| 3000K | SPMWH12245Q5W8V0SA SPMWH12245Q5W8V0SB |
SA SB |
113 128 |
123 138 |
|
| 3500K | SPMWH12245Q5W8U0SA SPMWH12245Q5W8U0SB |
SA SB |
117 132 |
127 142 |
|
| 4000K | SPMWH12245Q5W8T0SA SPMWH12245Q5W8T0SB |
SA SB |
121 138 |
131 148 |
|
| 5000K | SPMWH12245Q5W8R0SA SPMWH12245Q5W8R0SB |
SA SB |
124 139 |
134 149 |
|
| 5700K | SPMWH12245Q5W8Q0SA SPMWH12245Q5W8Q0SB |
SA SB |
122 137 |
132 147 |
|
| 6500K | SPMWH12245Q5W8P0SA SPMWH12245Q5W8P0SB |
SA SB |
121 135 |
131 145 |
|
| 90+ | 2700K | SPMWH12245Q7W8W0SA SPMWH12245Q7W8W0SB |
SA SB |
90 105 |
100 115 |
| 3000K | SPMWH12245Q7W8V0SA SPMWH12245Q7W8V0SB |
SA SB |
98 108 |
108 118 |
|
| 3500K | SPMWH12245Q7W8U0SA SPMWH12245Q7W8U0SB |
SA SB |
101 110 |
111 120 |
|
| 4000K | SPMWH12245Q7W8T0SA SPMWH12245Q7W8T0SB |
SA SB |
105 112 |
115 122 |
|
| 5000K | SPMWH12245Q7W8R0SA SPMWH12245Q7W8R0SB |
SA SB |
107 114 |
117 124 |
|
| 5700K | SPMWH12245Q7W8Q0SA SPMWH12245Q7W8Q0SB |
SA SB |
106 113 |
116 123 |
|
| 6500K | SPMWH12245Q7W8P0SA SPMWH12245Q7W8P0SB |
SA SB |
105 112 |
115 122 |
|
