Description

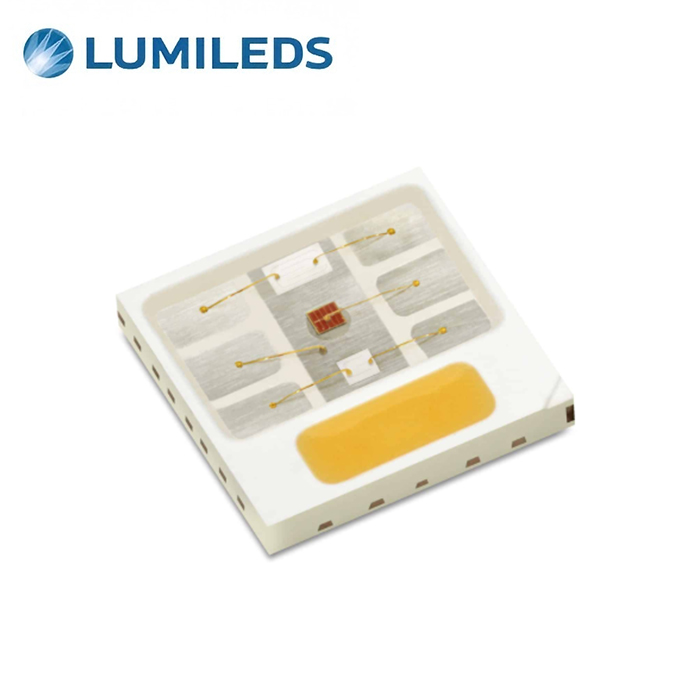

LUXEON 5052 RGBW
The LUXEON 5052 RGBW is a 4-in-1 package that makes color tuning easier. Each channel is individually addressable, enabling a large color gamut while simplifying the ability of getting just the right color point.
Features & Benefits
- RGBW 4-in-1 module
- 5.0mm x 5.2mm
- Individually control each channel
Applications
- Decorative
- Linear
- Wall Grazer
- Wall Wash
LUXEON 5052 RGBW product performance at 120mA,Tj=25°C.
| Color | Dominant Wavelength (nm) | Luminous Flux (lm) | Part Number | ||
|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | ||
 Red |
618 | 625 | 15 | 18 | L1MC-RGB2290500MP0 L1MC-RGB2780500MP0 L1MC-RGB3080500MP0 L1MC-RGU3080500MP0 L1MC-RGB4080500MP0 L1MC-RGU4080500MP0 L1MC-RGB5080500MP0 L1MC-RGB6570500MP0 |
 Green |
520 | 535 | 30 | 38 | |
 Blue |
465 | 480 | 7 | 12 | |
 Royal Blue |
460 | 465 | 6 | 7.5 | |
| White (2200K, 90CRI) | – | – | 36 | 40 | |
| White (2700K, 80CRI) | – | – | 48 | 52 | |
| White (3000K, 80CRI) | – | – | 48 | 53 | |
| White (4000K, 80CRI) | – | – | 53 | 57 | |
| White (5000K, 80CRI) | – | – | 53 | 57 | |
| White (6500K, 70CRI) | – | – | 53 | 59 | |
| Red |
Any one color bin | Any one flux bin | L1MC-RGBxxxx501MP0 L1MC-RGUxxxx501MP0 |
||
| Green |
Any one color bin from 20 to 22 | Any one flux bin from G to J | |||
| Blue |
Any one color bin from 3A to 31 | Any one flux bin from B to C | |||
| Royal Blue |
Any one color bin | Any one flux bin | |||
| White | Any one color bin from 43 to 44 | Any one flux bin from V to X | |||
