Description

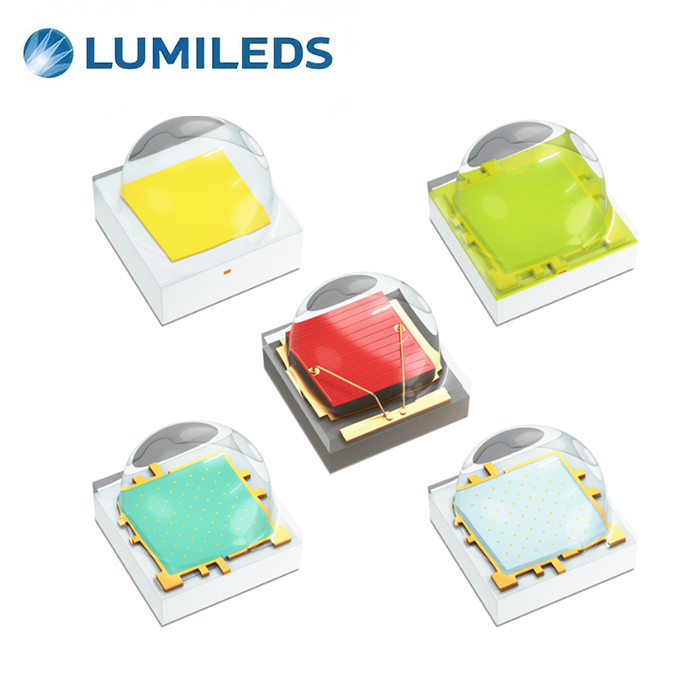

The LUXEON C ES Color Line is designed specifically for use in large LED arrays under a single optic. Its larger die and small package enable the total array area to be minimized, and LED arrangement optimized while delivering high light output. The three-stripe pad enables complex electronic circuits and provides superior thermal management connections. For entertainment, architectural, and EVL applications where significant output from large arrays is desired, LUXEON C ES is the clear choice.

Features & Benefits

• Best in class for multi-color array mixing with minimum LED-to-LED spacing needed for placement\\
• The 3-stripe footprint, offers the flexibility of design in a complex routing as it shortened electrodes for routing between LEDs while keeping LEDs maximally close-packed
• Large die in a small package provides high flux, low Vf, and low Pthermal
• High drive current enables output to be maximized and LED count minimized
• Large thermal pad allows high drive currents and makes it possible to create close-packed LED clusters
• Superior reliability from a proven, robust package

Applications

• Theater & Entertainment Lighting
• Architectural Lighting
• Film Lighting
• Landscape Lighting
• Floodlights
• Emergency Vehicle Lighting

Product performance of LUXEON C ES Colors at specified test current 1000mA, Tj=85ºC.
