LUXEON CoB Core Range – High Density Gen 2

Description

LUXEON CoB Core Range – High Density focuses on achieving the highest Center Beam Candle Power (CBCP). With a focus on 6, 9 and 11mm Light Emitting Surfaces, we can cover a flux range as high as 8,000 lumens. Using the mechanical dimensions of our LUXEON CoB Core Range, the High-Density range will also benefit from the ability to utilize an existing ecosystem of holders, optics, and drivers.

LUXEON CoB Core Range – High Density and EU Ecodesign: Please consult the product datasheet for details, including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON CoB Core Range – High-Density part numbers are in energy efficiency classes D, E, and F.

Features & Benefits

Highest flux densities with smallest LES
3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire
Superior thermal resistance enabling smaller heatsinks and higher lumens
Supported by a comprehensive optical, mechanical and electrical ecosystem

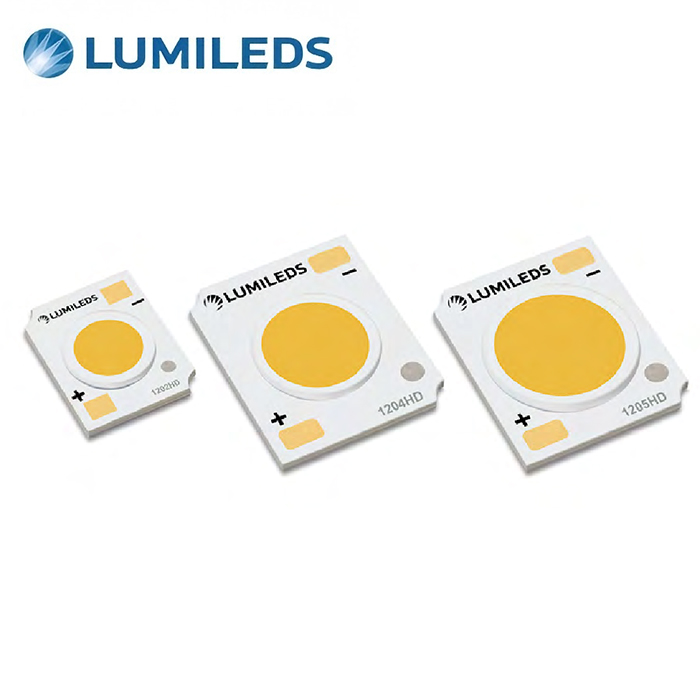

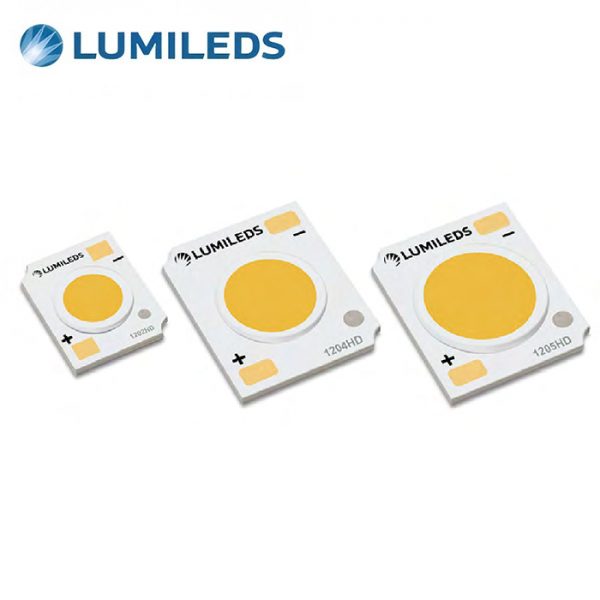

CoB LED package

Applications

Outdoor
Acorn
Bike Lights
Bollard
Cobra Head
Downlights

Product performance of LUXEON CoB Core Range – High Density at specified test current, T_j=85°C.

LES (mm)	Nominal CCT	Minimum CRI	Luminous Flux (lm)		Typical Luminous Efficacy (lm/W)	Test Current (mA)	Part Number	Generation
LES (mm)	Nominal CCT	Minimum CRI	Minimum	Typical	Typical Luminous Efficacy (lm/W)	Test Current (mA)	Part Number	Generation
6	2700K	80	1418	1576	123	350	L2C5-27801202FH600	Gen 2
6	2700K	80	1240	1378	106	350	L2C5-27801202EH600	Gen 1
6	2700K	90	1244	1382	108	350	L2C5-27901202FH600	Gen 2
6	2700K	90	1134	1260	90	350	L2C5-27901202EH600	Gen 1
6	3000K	80	1473	1637	128	350	L2C5-30801202FH600	Gen 2
6	3000K	80	1368	1520	117	350	L2C5-30801202EH600	Gen 1
6	3000K	90	1299	1443	113	350	L2C5-30901202FH600	Gen 2
6	3000K	90	1211	1345	92	350	L2C5-30901202EH600	Gen 1
6	3500K	80	1514	1682	132	350	L2C5-35801202FH600	Gen 2
6	3500K	80	1406	1562	121	350	L2C5-35801202EH600	Gen 1
6	3500K	90	1312	1458	114	350	L2C5-35901202FH600	Gen 2
6	3500K	90	1223	1359	105	350	L2C5-35901202EH600	Gen 1
6	4000K	70	1654	1838	144	350	L2C5-40701202FH600	Gen 2
6	4000K	70	1505	1673	129	350	L2C5-40701202EH600	Gen 1
6	4000K	80	1549	1721	135	350	L2C5-40801202FH600	Gen 2
6	4000K	80	1438	1598	116	350	L2C5-40801202EH600	Gen 1
6	4000K	90	1315	1461	114	350	L2C5-40901202FH600	Gen 2
6	4000K	90	1218	1353	104	350	L2C5-40901202EH600	Gen 1
6	5000K	70	1654	1838	144	350	L2C5-50701202FH600	Gen 2
6	5000K	70	1505	1673	129	350	L2C5-50701202EH600	Gen 1
6	5000K	80	1538	1709	134	350	L2C5-50801202FH600	Gen 2
6	5000K	80	1425	1583	116	350	L2C5-50801202EH600	Gen 1
6	5700K	80	1538	1709	134	350	L2C5-57801202FH600	Gen 2
6	5700K	80	1432	1591	116	350	L2C5-57801202EH600	Gen 1
9	2200K	80	2140	2378	92	700	L2C5-22801204E0900	Gen 1
9	2200K	90	1864	2071	80	700	L2C5-22901204E0900	Gen 1
9	2700K	80	2804	3116	122	700	L2C5-27801204F0900	Gen 2
9	2700K	80	2554	2838	110	700	L2C5-27801204E0900	Gen 1
9	2700K	90	2441	2712	106	700	L2C5-27901204F0900	Gen 2
9	2700K	90	2130	2366	91	700	L2C5-27901204E0900	Gen 1
9	3000K	70	3230	3589	140	700	L2C5-30701204F0900	Gen 2
9	3000K	70	2887	3207	124	700	L2C5-30701204E0900	Gen 1
9	3000K	80	3011	3345	131	700	L2C5-30801204F0900	Gen 2
9	3000K	80	2688	2987	115	700	L2C5-30801204E0900	Gen 1
9	3000K	90	2588	2875	113	700	L2C5-30901204F0900	Gen 2
9	3000K	90	2306	2562	99	700	L2C5-30901204E0900	Gen 1
9	3200K	90	2340	2600	100	700	L2C5-32901204E0900	Gen 1
9	3500K	70	3262	3624	142	700	L2C5-35701204F0900	Gen 2
9	3500K	70	2800	3111	120	700	L2C5-35701204E0900	Gen 1
9	3500K	80	3064	3404	133	700	L2C5-35801204F0900	Gen 2
9	3500K	80	2742	3047	118	700	L2C5-35801204E0900	Gen 1
9	3500K	90	2626	2918	114	700	L2C5-35901204F0900	Gen 2
9	3500K	90	2520	2800	108	700	L2C5-35901204E0900	Gen 1
9	4000K	70	3293	3659	143	700	L2C5-40701204F0900	Gen 2
9	4000K	70	3011	3345	129	700	L2C5-40701204E0900	Gen 1
9	4000K	80	3184	3538	138	700	L2C5-40801204F0900	Gen 2
9	4000K	80	2850	3167	122	700	L2C5-40801204E0900	Gen 1
9	4000K	90	2742	3047	119	700	L2C5-40901204F0900	Gen 2
9	4000K	90	2551	2834	109	700	L2C5-40901204E0900	Gen 1
9	5000K	70	3293	3659	143	700	L2C5-50701204F0900	Gen 2
9	5000K	70	3011	3345	129	700	L2C5-50701204E0900	Gen 1
9	5000K	80	3099	3443	135	700	L2C5-50801204F0900	Gen 2
9	5000K	80	2850	3167	122	700	L2C5-50801204E0900	Gen 1
9	5700K	70	3308	3675	144	700	L2C5-57701204F0900	Gen 2
9	5700K	70	2866	3185	123	700	L2C5-57701204E0900	Gen 1
9	5700K	80	3099	3443	135	700	L2C5-57801204F0900	Gen 2
9	5700K	80	2891	3212	124	700	L2C5-57801204E0900	Gen 1
9	6500K	70	3303	3670	144	700	L2C5-65701204F0900	Gen 2
9	6500K	70	2824	3137	121	700	L2C5-65701204E0900	Gen 1
11	2700K	80	3633	4037	123	900	L2C5-27801205F1100	Gen 2
11	2700K	80	3306	3673	110	900	L2C5-27801205E1100	Gen 1
11	2700K	90	3177	3530	107	900	L2C5-27901205F1100	Gen 2
11	2700K	90	2763	3070	92	900	L2C5-27901205E1100	Gen 1
11	3000K	80	3806	4229	129	900	L2C5-30801205F1100	Gen 2
11	3000K	80	3463	3848	116	900	L2C5-30801205E1100	Gen 1
11	3000K	90	3314	3682	112	900	L2C5-30901205F1100	Gen 2
11	3000K	90	2925	3250	98	900	L2C5-30901205E1100	Gen 1
11	3500K	80	3996	4440	135	900	L2C5-35801205F1100	Gen 2
11	3500K	80	3546	3940	118	900	L2C5-35801205E1100	Gen 1
11	4000K	70	4325	4805	146	900	L2C5-40701205F1100	Gen 2
11	4000K	70	3780	4200	126	900	L2C5-40701205E1100	Gen 1
11	4000K	80	4004	4449	135	900	L2C5-40801205F1100	Gen 2
11	4000K	80	3650	4056	122	900	L2C5-40801205E1100	Gen 1
11	4000K	90	3598	3998	122	900	L2C5-40901205F1100	Gen 2
11	4000K	90	3176	3529	106	900	L2C5-40901205E1100	Gen 1
11	5000K	70	4325	4805	146	900	L2C5-50701205F1100	Gen 2
11	5000K	70	3780	4200	126	900	L2C5-50701205E1100	Gen 1
11	5000K	80	3889	4321	132	900	L2C5-50801205F1100	Gen 2
11	5000K	80	3545	3939	118	900	L2C5-50801205E1100	Gen 1
11	5700K	80	3889	4321	132	900	L2C5-57801205F1100	Gen 2
11	5700K	80	3703	4114	124	900	L2C5-57801205E1100	Gen 1
