LUXEON CoB Core Range PW

Description

LUXEON CoB Core Range PW was built for retail and similar applications that need high-quality light that’s spectrally tuned to optimize illuminated displays and products. Lumileds continues to advance performance, color consistency, and reliability with KSF-based phosphors for exceptional 90+CRI performance. Lumileds LUXEON CoB Core Range PW offers leading light output and efficacy, and its beautiful color transforms areas into vibrant spaces.

LUXEON CoB Core Range PW and EU Ecodesign: Please consult the product datasheet for details, including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON CoB Core Range PW part numbers are in energy efficiency classes D and E.

Features & Benefits

High efficacy and superior color quality at lower energy consumption
Various LES sizes and flux outputs that fit different applications and requirements
Best-in-class thermal resistance enabling the use of smaller heatsinks and prolonged product life span
Supported by a comprehensive optical, mechanical, and electrical ecosystem

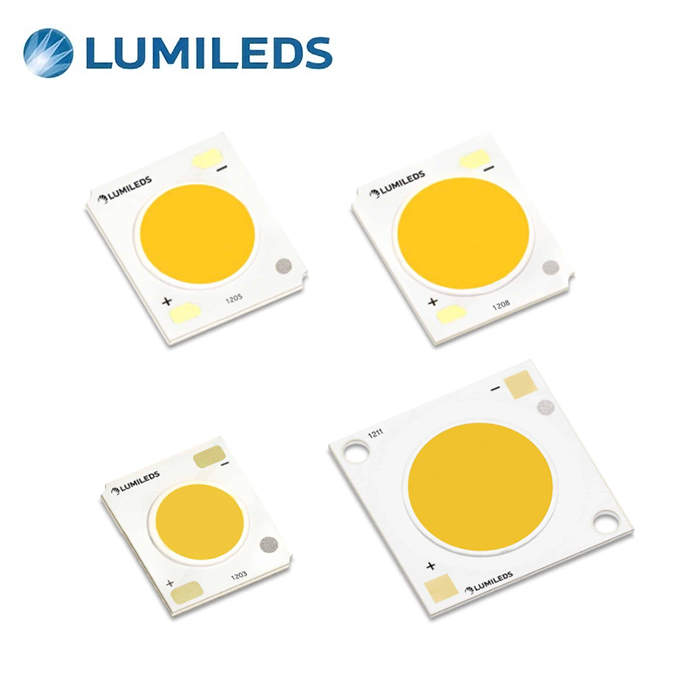

CoB LED package

Applications

Downlights
Low Bay
Spotlights
Track Lights

Product performance of LUXEON CoB Core Range PW at specified test current, T_j=85°C.

LES (mm)	Nominal CCT	Minimum CRI	Luminous Flux (lm)		Typical Luminous Efficacy (lm/W)	Test Current (mA)	Part Number	Generation
LES (mm)	Nominal CCT	Minimum CRI	Minimum	Typical	Typical Luminous Efficacy (lm/W)	Test Current (mA)	Part Number	Generation
6	3000K	80	952	1058	156	200	L2C5-30801202H06Px	Gen 5
6	3000K	90	961	1068	158	200	L2C5-30901202I06Px	Gen 6
6	3000K	90	929	1032	152	200	L2C5-30901202H06Px	Gen 5
6	3500K	90	971	1078	159	200	L2C5-35901202I06Px	Gen 6
6	3500K	90	953	1058	156	200	L2C5-35901202H06Px	Gen 5
6	4000K	90	978	1086	160	200	L2C5-40901202I06Px	Gen 6
6	4000K	90	974	1082	160	200	L2C5-40901202H06Px	Gen 5
9	3000K	80	977	1086	160	200	L2C5-30801202H09Px	Gen 5
9	3000K	80	1438	1598	157	300	L2C5-30801203H09Px	Gen 5
9	3000K	80	1351	1501	145	300	L2C5-30801203F09P0	Gen 4
9	3000K	80	1924	2138	158	400	L2C5-30801204H09Px	Gen 5
9	3000K	90	985	1095	161	200	L2C5-30901202I09Px	Gen 6
9	3000K	90	957	1063	157	200	L2C5-30901202H09Px	Gen 5
9	3000K	90	1453	1614	159	300	L2C5-30901203I09Px	Gen 6
9	3000K	90	1384	1537	151	300	L2C5-30901203H09Px	Gen 5
9	3000K	90	1191	1324	128	300	L2C5-30901203F09P0	Gen 4
9	3000K	90	1894	2104	155	400	L2C5-30901204I09Px	Gen 6
9	3000K	90	1839	2043	151	400	L2C5-30901204H09Px	Gen 5
9	3500K	90	997	1108	163	200	L2C5-35901202I09Px	Gen 6
9	3500K	90	981	1090	161	200	L2C5-35901202H09Px	Gen 5
9	3500K	90	1458	1620	159	300	L2C5-35901203I09Px	Gen 6
9	3500K	90	1419	1577	155	300	L2C5-35901203H09Px	Gen 5
9	3500K	90	1246	1384	134	300	L2C5-35901203F09P0	Gen 4
9	3500K	90	1917	2130	157	400	L2C5-35901204I09Px	Gen 6
9	3500K	90	1886	2096	155	400	L2C5-35901204H09Px	Gen 5
9	4000K	90	1007	1118	165	200	L2C5-40901202I09Px	Gen 6
9	4000K	90	1003	1114	164	200	L2C5-40901202H09Px	Gen 5
9	4000K	90	1459	1622	159	300	L2C5-40901203I09Px	Gen 6
9	4000K	90	1451	1612	159	300	L2C5-40901203H09Px	Gen 5
9	4000K	90	1250	1389	134	300	L2C5-40901203F09P0	Gen 4
9	4000K	90	1935	2150	159	400	L2C5-40901204I09Px	Gen 6
9	4000K	90	1928	2142	158	400	L2C5-40901204H09Px	Gen 5
13	3000K	80	2821	3134	151	600	L2C5-30801205H13Px	Gen 5
13	3000K	80	2739	3043	145	600	L2C5-30801205F13P0	Gen 4
13	3000K	90	2863	3182	154	600	L2C5-30901205I13Px	Gen 6
13	3000K	90	2835	3150	152	600	L2C5-30901205H13Px	Gen 5
13	3000K	90	2413	2681	128	600	L2C5-30901205F13P0	Gen 4
13	3500K	90	2916	3240	157	600	L2C5-35901205I13Px	Gen 6
13	3500K	90	2901	3223	156	600	L2C5-35901205H13Px	Gen 5
13	3500K	90	2509	2788	133	600	L2C5-35901205F13P0	Gen 4
13	4000K	90	2967	3296	159	600	L2C5-40901205I13Px	Gen 6
13	4000K	90	2963	3292	159	600	L2C5-40901205H13Px	Gen 5
13	4000K	90	2595	2884	137	600	L2C5-40901205F13P0	Gen 4
15	3000K	80	4357	4841	160	900	L2C5-30801210H15Px	Gen 5
15	3000K	80	4320	4800	156	900	L2C5-30801208H15Px	Gen 5
15	3000K	80	4230	4700	154	900	L2C5-30801210F15P0	Gen 4
15	3000K	80	4159	4621	148	900	L2C5-30801208F15P0	Gen 4
15	3000K	90	4369	4854	161	900	L2C5-30901210I15Px	Gen 6
15	3000K	90	4325	4805	156	900	L2C5-30901208I15Px	Gen 6
15	3000K	90	4253	4725	154	900	L2C5-30901208H15Px	Gen 5
15	3000K	90	4221	4690	155	900	L2C5-30901210H15Px	Gen 5
15	3000K	90	3601	4002	131	900	L2C5-30901210F15P0	Gen 4
15	3000K	90	3566	3962	127	900	L2C5-30901208F15P0	Gen 4
15	3500K	90	4460	4955	164	900	L2C5-35901210I15Px	Gen 6
15	3500K	90	4377	4863	161	900	L2C5-35901210H15Px	Gen 5
15	3500K	90	4344	4826	157	900	L2C5-35901208I15Px	Gen 6
15	3500K	90	4285	4762	155	900	L2C5-35901208H15Px	Gen 5
15	3500K	90	3784	4205	137	900	L2C5-35901210F15P0	Gen 4
15	3500K	90	3747	4163	133	900	L2C5-35901208F15P0	Gen 4
15	4000K	90	4508	5009	163	900	L2C5-40901208I15Px	Gen 6
15	4000K	90	4500	5000	165	900	L2C5-40901210I15Px	Gen 6
15	4000K	90	4495	4994	162	900	L2C5-40901208H15Px	Gen 5
15	4000K	90	4482	4980	165	900	L2C5-40901210H15Px	Gen 5
15	4000K	90	3915	4350	142	900	L2C5-40901210F15P0	Gen 4
15	4000K	90	3854	4283	137	900	L2C5-40901208F15P0	Gen 4
19	3000K	80	5778	6420	156	1200	L2C5-30801211H19Px	Gen 5
19	3000K	80	5559	6177	148	1200	L2C5-30801211F19P0	Gen 4
19	3000K	90	5688	6320	154	1200	L2C5-30901211H19Px	Gen 5
19	3000K	90	4836	5373	129	1200	L2C5-30901211F19P0	Gen 4
19	3500K	90	5766	6407	156	1200	L2C5-35901211H19Px	Gen 5
19	3500K	90	5068	5631	135	1200	L2C5-35901211F19P0	Gen 4
19	4000K	90	5905	6562	160	1200	L2C5-40901211H19Px	Gen 5
19	4000K	90	5203	5782	138	1200	L2C5-40901211F19P0	Gen 4
