Description

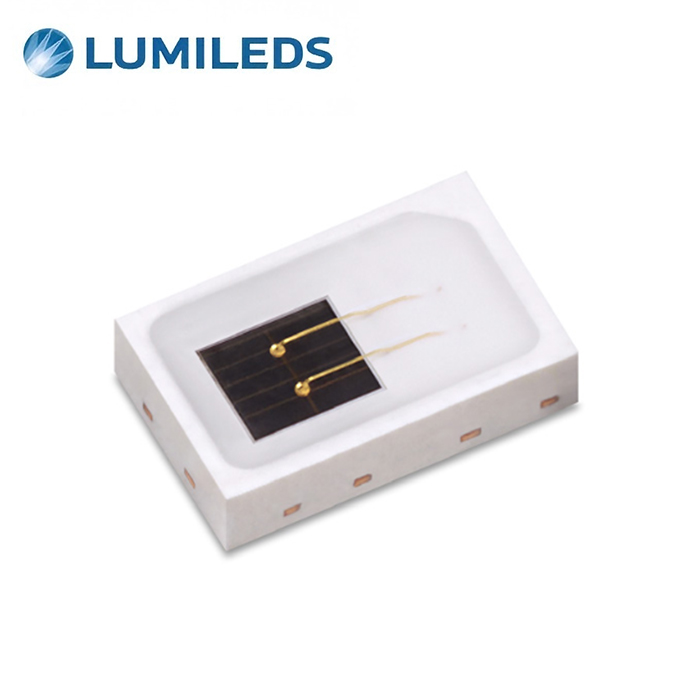

LUXEON IR 2720 Line

LUXEON IR 2720 is a line of high power infrared emitters in a reliable package design, affirming long lifetime and robustness in many types of application conditions. The LUXEON IR 2720 Line uses an industry standard footprint for ease of integration and upgrades of existing system designs.

Features & Benefits

• Available in 850nm and 940nm wavelengths to provide optimized performance for each type of application
• Radiant Power: 1300 mW (850nm) and 1250 mW (940nm) for a greater system performance
• 2.75mm x 2.00mm package with a 2 pad configuration that is compatible with the industry standard footprint to enable a direct upgrade in existing designs

Applications

• Biometric Identification
• Machine Vision
• Surveillance/CCTV

LUXEON IR 2720 Line product performance at 1000mA, T_j=25°C.
