Description

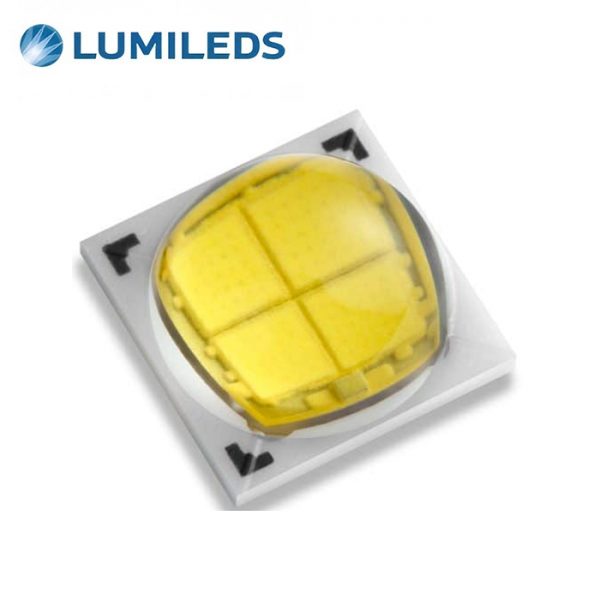

LUXEON M

LUXEON M is an illumination grade multi-die LED designed to enable outdoor and industrial applications targeting either high efficiency or low cost. With Freedom from Binning and leading performance, LUXEON M falls within a single 3- or 5-step MacAdam ellipse centered in ANSI to ensure color consistency from LED to LED, delivering high efficacy and high flux density from a uniform source with tight correlated color temperature control. The superior quality of light, volume of lumens, and real world efficacy enable leading performance and efficient solution development in a wide variety of lighting segments.

Features & Benefits

• Uniform image enables tight beam control in MR16 and spotlight applications
• High flux density from a 3mm² area enables reduced emitter count and compact fixture designs
• 11.2V and 5.6V package options puts high performance within reach with high efficiency and low cost drivers
• Leading thermal resistance allows flexible system design to optimize for lm/$ and lm/W
• Exceeds ENERGY STAR® lumen maintenance requirements

Applications

• Architectural
• High Bay & Low Bay
• Lamps
• Outdoor
• Specialty Lighting
• Spotlights

Product performance for LUXEON M White at test current, T_j=85°C.
