Description

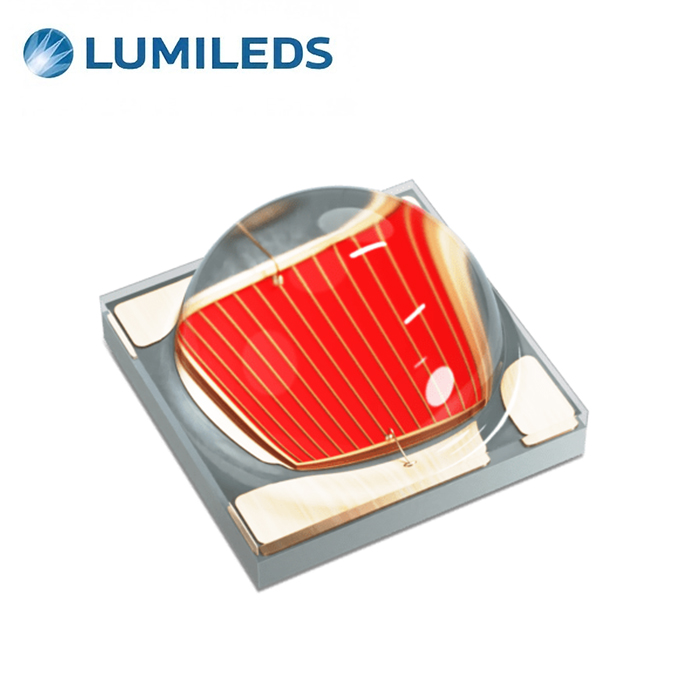

LUXEON SunPlus HPE
LUXEON SunPlus HPE achieves the highest PPF and PPE with an industry standard footprint of 3.5mm x 3.5mm. It enables growers to improve crop growth, reduce energy consumption, and make agriculture more sustainable. The LUXEON SunPlus HPE is a deep red LED with a peak wavelength of 660nm and is designed specifically to enable the highest quality LED solutions for horticulture applications.
Features & Benefits
- High power deep red ceramic LED with 660nm peak wavelength
- High PPF and PPE specified at 25°C and 85°C
- Industry standard footprint 3.5mm x 3.5mm
Applications
- Horticulture
- Grow Lights
Product performance of LUXEON SunPlus HPE at 700mA.
| Color | Peak Wavelength | PPF (μmol/s) | PPF/W (µmol/j) | Part Number | ||||
|---|---|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | TYPICAL at Tj=85°C |
TYPICAL at Tj=25°C |
TYPICAL at Tj=85°C |
TYPICAL at Tj=25°C |
||
 Deep Red |
655 | 680 | 4.5 | 5.25 | 5.82 | 3.75 | 4.01 | L1SP-DRD0203E00000 |
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Lumileds |
| Product Category: | Single Color LEDs |
| RoHS: | |
| Product: | Red LEDs |
| Mounting Style: | SMD/SMT |
| Wavelength/Color Temperature: | 680 nm |
| Illumination Color: | Deep Red |
| If – Forward Current: | 700 mA |
| Vf – Forward Voltage: | 2 V |
| Lens Color: | Colorless |
| Lens Dimensions: | 3.15 mm |
| Lens Shape: | Dome |
| Lens Transparency: | Water Clear |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | Lumileds |
| Product Type: | Single Color LEDs |
| 1000 | |
| Subcategory: | LEDs |
| Type: | Single Color LEDs |
