MP-1616-2103 SMD LED

Description

MP-1616-2103 SMD LED

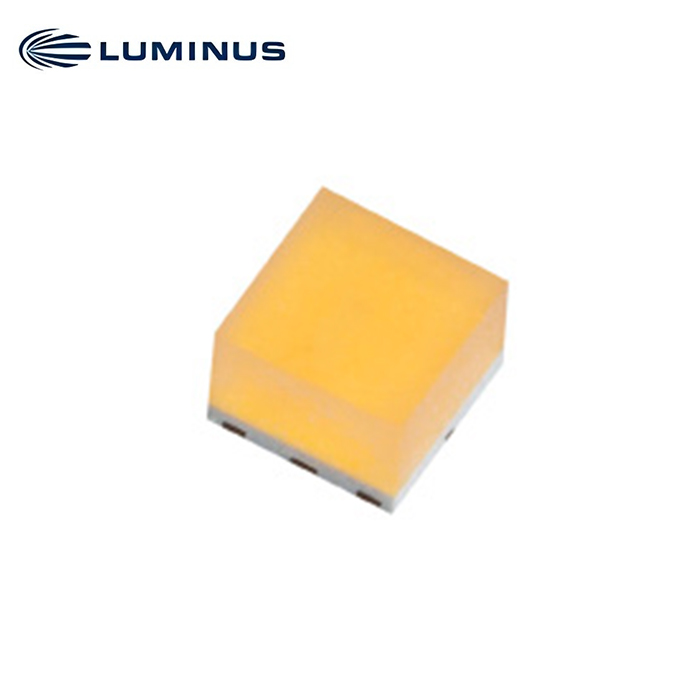

Luminus Luminus Cube™ LEDs are lighting class solutions designed for high performance general lighting applications These state-of-the-art LEDs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality The Luminus Cube™ is a unique LED that provides the benefits of a wide emission angle within a compact footprint The 1 6mm x 1 6mm package emits into a 135 degree viewing angle, enabling designers with new degrees of freedom to solve many of today’s most challenging lighting problems The very wide viewing angle promotes Energy Star compliance for replacement lamps, and results in increased mixing and uniformity for linear and area lighting The miniature package size with high lumen density creates a “point source” of light that provides flexibility to develop innovative optical solutions Additionally, the Luminus Cube advances the hallmark characteristics of the Luminus family, including high efficacy and color fidelity Luminus LEDs –the right choice for color quality, efficacy and reliability.

Features
• Wide viewing angle: 135 degrees
• Hot lumen color targeted
• 1.63W maximum operating input power
• Compact: 1.6mm x 1.6mm
• High efficacy: up to 143 lumens per watt
• Wide color selection: 1800K-6500K
• 6V input
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
• RoHs and REACH compliant

Applications
• Replacement lamps
• Panel lighting
• Down lights
• Cove lighting
• Architectural lighting
• Channel lighting

Product Selection Table

Test condition = 150 mA, 25C

Nominal CCT	Minimum CRI	Ordering Part Number	Minimum Flux (Lumens)	Typical Flux (Lumens)
1800K	90	MP-1616-2103-18-90	66	75
2200K	90	MP-1616-2103-22-90	86	93
2700K	80	MP-1616-2103-27-80	107	118
2700K	90	MP-1616-2103-27-90	94	106
3000K	80	MP-1616-2103-30-80	107	121
3000K	90	MP-1616-2103-30-90	94	108
3500K	80	MP-1616-2103-35-80	107	124
3500K	90	MP-1616-2103-35-90	100	112
4000K	80	MP-1616-2103-40-80	114	131
4000K	90	MP-1616-2103-40-90	107	118
5000K	80	MP-1616-2103-50-80	114	131
5000K	90	MP-1616-2103-50-90	107	118
5700K	80	MP-1616-2103-57-80	114	131
5700K	90	MP-1616-2103-57-90	107	118
6500K	80	MP-1616-2103-65-80	114	131
6500K	90	MP-1616-2103-65-90	107	118

1616 Mid Power Operating Characteristics

Optical and Electrical Characteristics(Ta=250C)

Parameter	Symbol	Minimum	Typical	Maximum	Unit	Condition
Forward Voltage	Vf		6.2	6.9	V	IF=150mA
Reverse Current	Ir			10	uA	VR=5V
Viewing Angle	2θ1/2		135		º	IF=150mA
Thermal Resistance	Rthj-sp		12		ºC/W	IF=150mA
Electrostatic Discharge	ESD	1000			V

Absolute Maximum Ratings (Ta=250C)

Parameter	Symbol	Rating	Unit
Forward Current	If	200	mA
Pulse Forward Current	IfP	300	mA
Power Dissipation	Pd	1,632	mW
Reverse Voltage	Vr	5	V
Operating Temperature	ToPr	-40~+80	°C
Storage Temperature	TsTg	-40~+80	°C
Junction Temperature	Tj	125	°C
Soldering Temperature	Tsld	230 °C or 260 °C for 10 sec

Chromaticity Diagram

Color Bins target chromaticity @ Tc=85 °C

CCT (K)	Steps	Center		Radius		Angle( Deg)
CCT (K)	Steps	x	y	a	b	Φ
1800	5	0.5592	0.4196	0.013500	0.007000	-35
2200	3	0.509873	0.42036	0.009780	0.004800	45.5
2200	5	0.509873	0.42036	0.016300	0.008000	45.5
2700	3	0.4649	0.4174	0.0081	0.0042	53.42
2700	5	0.4649	0.4174	0.0135	0.007	53.42
3000	3	0.4426	0.4106	0.00834	0.00408	53.13
3000	5	0.4426	0.4106	0.013900	0.006800	53.13
3500	3	0.4154	0.4025	0.00927	0.00414	54
3500	5	0.4154	0.4025	0.01545	0.0069	54
4000	3	0.3918	0.3915	0.00939	0.00402	53.43
4000	5	0.3918	0.3915	0.01565	0.0067	53.43
5000	3	0.353	0.3665	0.00822	0.00354	59.37
5000	5	0.353	0.3665	0.0137	0.0059	59.37
5700	3	0.3392	0.354	0.006705	0.0033	58.35
5700	5	0.3392	0.354	0.011175	0.0055	58.35
6500	3	0.31919	0.3388	0.00669	0.00285	58.34
6500	5	0.31919	0.3388	0.01115	0.00475	58.34
