Description

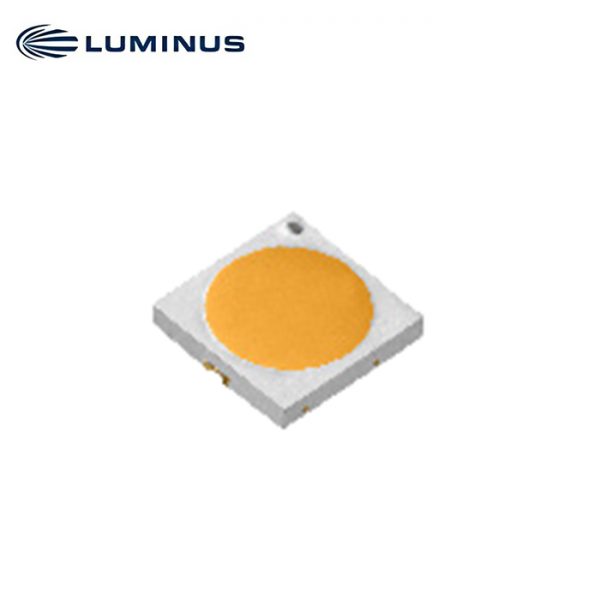

5050 Mid Power LED (3.6 W)
Luminus mid power LEDs are lighting class solutions designed for high performance general lighting applications These state-of-the-art LEDs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality
Features
• High efficacy
• Low thermal resistance
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
• RoHs and REACH compliant
Applications
• Replacement lamps
• Panel lighting
• Down lights
• Architectural lighting
Product Selection Table
Test condition = 200 mA, Ts=25 ºC
| Nominal CCT | Minimum CRI | Ordering Part Number | Minimum Flux
(Lumens) |
Typical Flux
(Lumens) |
| 2700K | 70 | MP-5050-6100-27-70 | 480 | 540 |
| 80 | MP-5050-6100-27-80 | 440 | 510 | |
| 90 | MP-5050-6100-27-90 | 370 | 430 | |
| 3000K | 70 | MP-5050-6100-30-70 | 480 | 565 |
| 80 | MP-5050-6100-30-80 | 480 | 535 | |
| 90 | MP-5050-6100-30-90 | 400 | 450 | |
| 4000K | 70 | MP-5050-6100-40-70 | 520 | 590 |
| 80 | MP-5050-6100-40-80 | 480 | 560 | |
| 90 | MP-5050-6100-40-90 | 420 | 475 | |
| 5000K | 70 | MP-5050-6100-50-70 | 520 | 590 |
| 80 | MP-5050-6100-50-80 | 480 | 560 | |
| 90 | MP-5050-6100-50-90 | 420 | 475 | |
| 5700K | 70 | MP-5050-6100-57-70 | 520 | 590 |
| 80 | MP-5050-6100-57-80 | 480 | 560 | |
| 90 | MP-5050-6100-57-90 | 420 | 475 | |
| 6500K | 70 | MP-5050-6100-65-70 | 520 | 590 |
| 80 | MP-5050-6100-65-80 | 480 | 560 | |
| 90 | MP-5050-6100-65-90 | 420 | 475 |
5050 Mid Power Operating Characteristics
Optical and Electrical Characteristics(Ts=250C)
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Condition |
| Forward Voltage | Vf | 17 | 19 | 21 | V | If=200mA |
| Reverse Current | Ir | 10 | uA | V =5V r | ||
| View Angle | 2θ1/2 | 115 | º | If=200mA | ||
| Thermal Resistance | Rthj-sp | 2.5 | ºC/W | If=200mA | ||
| Electrostatic Discharge | ESD | 1000 | V |
Absolute Maximum Ratings (Ts=250C)
| Parameter | Symbol | Rating | Unit |
| Forward Current | If | 240 | mA |
| Pulse Forward Current | Ifp | 300 | mA |
| Power Dissipation | Pd | 4,800 | mW |
| Reverse Voltage | V r | 5 | V |
| Operating Temperature | T
opr |
-40~+85 | °C |
| Storage Temperature | T
stg |
-40~+85 | °C |
| Junction Temperature | Tj | 125 | °C |
| Soldering Temperature | Tsld | 230 °C or 260 °C for 10 sec | |
Color Bins
| Color Code | Center | Radius | Angle(deg) | ||
| x | y | a | b | ϕ | |
| 27m5 | 0.4582 | 0.4099 | 0.013500 | 0.00700 | 53.42 |
| 30m5 | 0.4342 | 0.4028 | 0.013900 | 0.00680 | 53.13 |
| 40m5 | 0.3825 | 0.3789 | 0.015650 | 0.00670 | 53.43 |
| 50m5 | 0.3451 | 0.3554 | 0.013700 | 0.00590 | 59.37 |
| 57m7 | 0.3290 | 0.3417 | 0.015645 | 0.00770 | 58.35 |
| 65m7 | 0.3130 | 0.3290 | 0.015610 | 0.006650 | 58.34 |
| Luminus Flux Bins | ||
| Bin Code | Minimum Flux (Lumens) | Maximum Flux (Lumens) |
| 3A | 440 | 480 |
| 3B | 480 | 520 |
| 3C | 520 | 560 |
| 3D | 560 | 600 |
| Forward Voltage Bins (Ts=25°C) | ||
| Bin Code | Minimum Voltage (Volts) | Maximum Voltage ( Volts) |
| C | 17 | 18 |
| D | 18 | 19 |
| E | 19 | 22 |
| F | 20 | 21 |
| G | 21 | 22 |
