Bridgelux® Vero® Series Gen 8 Vero® 18 Array

Categories: ,

Description

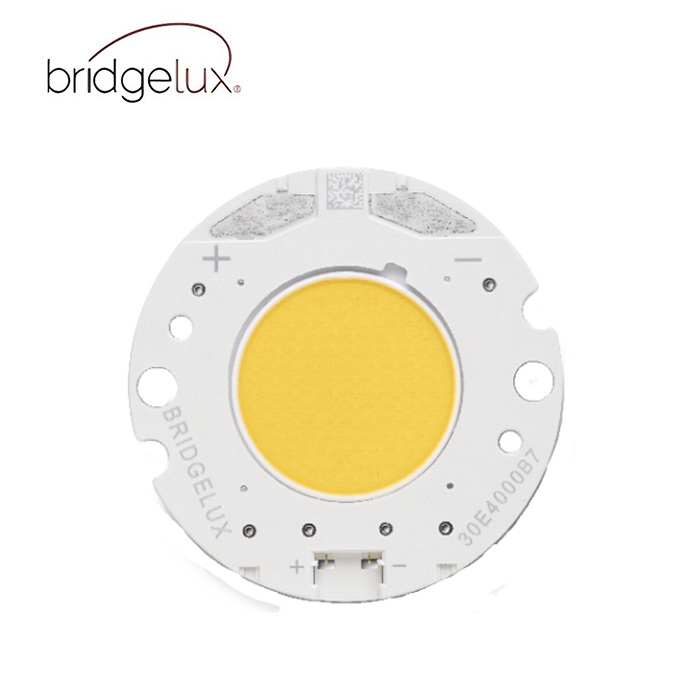

Bridgelux® Gen 8 Vero® 18 Array

The Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation, simplifying the luminaire design and manufacturing processes. Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents.

Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color control standard for clean and consistent uniform lighting. Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting features for plug-and-play installation.

Features
• On board connector port
• Top side part number markings
• Efficacy of 180 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes (backside marking)
• Thermally isolated solder pads
• 10-Year warranty

Benefits
• Solder free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Enhanced ease of use and installation
• Design with confidence

Product Family Product Part Number Doc Number Gen CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRC Vero Vero 18B BXRC-xxx400x-B-8x DS422 8 2700-6500 70, 80, 90, 97 2, 3 , 4 4280 700 33.9 180 18
BXRC Vero Vero 18C BXRC-xxx400x-C-8x DS422 8 2700-6500 70, 80, 90, 97 2, 3 , 4 6400 1050 33.9 180 18
BXRC Vero Vero 18D BXRC-xxx400x-D-8x DS422 8 2700-6500 70, 80, 90, 97 2, 3 , 4 4310 850 28.2 180 18



product-862-726



Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRC-27E4000-B-8x 2700 80 700 4028 3625 33.9 23.7 170
BXRC-27E4000-C-8x 2700 80 1050 6024 5421 33.9 35.6 169
BXRC-27E4000-D-8x 2700 80 850 4055 3649 28.2 24.0 169
BXRC-27G4000-B-8x 2700 90 700 3323 2991 33.9 23.7 140
BXRC-27G4000-C-8x 2700 90 1050 4969 4472 33.9 35.6 140
BXRC-27G4000-D-8x 2700 90 850 3345 3011 28.2 24.0 140
BXRC-27G40H0-B-8x 2700 90 700 3467 3120 33.9 23.7 146
BXRC-27G40H0-C-8x 2700 90 1050 5184 4666 33.9 35.6 146
BXRC-27G40H0-D-8x 2700 90 850 3489 3141 28.2 24.0 146
BXRC-27H4000-B-8x 2700 97 700 2946 2651 33.9 23.7 124
BXRC-27H4000-C-8x 2700 97 1050 4405 3964 33.9 35.6 124
BXRC-27H4000-D-8x 2700 97 850 2965 2668 28.2 24.0 124
BXRC-30C4001-B-8x 3000 70 700 4481 4033 33.9 23.7 189
BXRC-30C4001-C-8x 3000 70 1050 6701 6031 33.9 35.6 188
BXRC-30C4001-D-8x 3000 70 850 4511 4060 28.2 24.0 188
BXRC-30E4000-B-8x 3000 80 700 4280 3852 33.9 23.7 180
BXRC-30E4000-C-8x 3000 80 1050 6400 5760 33.9 35.6 180
BXRC-30E4000-D-8x 3000 80 850 4308 3877 28.2 24.0 180
BXRC-30G4000-B-8x 3000 90 700 3474 3127 33.9 23.7 146
BXRC-30G4000-C-8x 3000 90 1050 5195 4676 33.9 35.6 146
BXRC-30G4000-D-8x 3000 90 850 3497 3147 28.2 24.0 146
BXRC-30G40H0-B-8x 3000 90 700 3638 3274 33.9 23.7 153
BXRC-30G40H0-C-8x 3000 90 1050 5440 4896 33.9 35.6 153
BXRC-30G40H0-D-8x 3000 90 850 3662 3296 28.2 24.0 153
BXRC-30H4000-B-8x 3000 97 700 3147 2832 33.9 23.7 133
BXRC-30H4000-C-8x 3000 97 1050 4706 4235 33.9 35.6 132
BXRC-30H4000-D-8x 3000 97 850 3168 2851 28.2 24.0 132
BXRC-35E4000-B-8x 3500 80 700 4381 3943 33.9 23.7 185
BXRC-35E4000-C-8x 3500 80 1050 6551 5896 33.9 35.6 184
BXRC-35E4000-D-8x 3500 80 850 4409 3968 28.2 24.0 184
BXRC-35G4000-B-8x 3500 90 700 3600 3240 33.9 23.7 152
BXRC-35G4000-C-8x 3500 90 1050 5384 4845 33.9 35.6 151
BXRC-35G4000-D-8x 3500 90 850 3624 3261 28.2 24.0 151
BXRC-40C4001-B-8x 4000 70 700 4607 4147 33.9 23.7 194
BXRC-40C4001-C-8x 4000 70 1050 6889 6200 33.9 35.6 194
BXRC-40C4001-D-8x 4000 70 850 4637 4174 28.2 24.0 193



Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRC-40E4000-B-8x 4000 80 700 4406 3965 33.9 23.7 186
BXRC-40E4000-C-8x 4000 80 1050 6588 5929 33.9 35.6 185
BXRC-40E4000-D-8x 4000 80 850 4435 3991 28.2 24.0 185
BXRC-40G4000-B-8x 4000 90 700 3676 3308 33.9 23.7 155
BXRC-40G4000-C-8x 4000 90 1050 5496 4947 33.9 35.6 154
BXRC-40G4000-D-8x 4000 90 850 3700 3330 28.2 24.0 154
BXRC-50C4001-B-8x 5000 70 700 4632 4169 33.9 23.7 195
BXRC-50C4001-C-8x 5000 70 1050 6927 6234 33.9 35.6 195
BXRC-50C4001-D-8x 5000 70 850 4663 4196 28.2 24.0 195
BXRC-50E4001-B-8x 5000 80 700 4456 4011 33.9 23.7 188
BXRC-50E4001-C-8x 5000 80 1050 6664 5997 33.9 35.6 187
BXRC-50E4001-D-8x 5000 80 850 4485 4037 28.2 24.0 187
BXRC-50G4001-B-8x 5000 90 700 3852 3467 33.9 23.7 162
BXRC-50G4001-C-8x 5000 90 1050 5760 5184 33.9 35.6 162
BXRC-50G4001-D-8x 5000 90 850 3877 3489 28.2 24.0 162
BXRC-57C4001-B-8x 5700 70 700 4507 4056 33.9 23.7 190
BXRC-57C4001-C-8x 5700 70 1050 6739 6065 33.9 35.6 189
BXRC-57C4001-D-8x 5700 70 850 4536 4082 28.2 24.0 189
BXRC-57E4001-B-8x 5700 80 700 4280 3852 33.9 23.7 180
BXRC-57E4001-C-8x 5700 80 1050 6400 5760 33.9 35.6 180
BXRC-57E4001-D-8x 5700 80 850 4308 3877 28.2 24.0 180
BXRC-65C4001-B-8x 6500 70 700 4507 4056 33.9 23.7 190
BXRC-65C4001-C-8x 6500 70 1050 6739 6065 33.9 35.6 189
BXRC-65C4001-D-8x 6500 70 850 4536 4082 28.2 24.0 189
BXRC-65E4001-B-8x 6500 80 700 4330 3897 33.9 23.7 182
BXRC-65E4001-C-8x 6500 80 1050 6475 5828 33.9 35.6 182
BXRC-65E4001-D-8x 6500 80 850 4359 3923 28.2 24.0 182



Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85ºC

(lm)

 T c = 85ºC

(lm)
BXRC-27E4000-B-8x 2700 80 700 3625 3263 33.1 23.2 156
BXRC-27E4000-C-8x 2700 80 1050 5421 4879 33.1 34.8 156
BXRC-27E4000-D-8x 2700 80 850 3649 3284 27.7 23.5 155
BXRC-27G4000-B-8x 2700 90 700 2991 2692 33.1 23.2 129
BXRC-27G4000-C-8x 2700 90 1050 4472 4025 33.1 34.8 129
BXRC-27G4000-D-8x 2700 90 850 3011 2709 27.7 23.5 128
BXRC-27G40H0-B-8x 2700 90 700 3120 2808 33.1 23.2 135
BXRC-27G40H0-C-8x 2700 90 1050 4666 4199 33.1 34.8 134
BXRC-27G40H0-D-8x 2700 90 850 3141 2826 27.7 23.5 134
BXRC-27H4000-B-8x 2700 97 700 2651 2386 33.1 23.2 114
BXRC-27H4000-C-8x 2700 97 1050 3964 3568 33.1 34.8 114
BXRC-27H4000-D-8x 2700 97 850 2668 2402 27.7 23.5 113
BXRC-30C4001-B-8x 3000 70 700 4033 3630 33.1 23.2 174
BXRC-30C4001-C-8x 3000 70 1050 6031 5428 33.1 34.8 173
BXRC-30C4001-D-8x 3000 70 850 4060 3654 27.7 23.5 173
BXRC-30E4000-B-8x 3000 80 700 3852 3467 33.1 23.2 166
BXRC-30E4000-C-8x 3000 80 1050 5760 5184 33.1 34.8 166
BXRC-30E4000-D-8x 3000 80 850 3877 3489 27.7 23.5 165
BXRC-30G4000-B-8x 3000 90 700 3127 2814 33.1 23.2 135
BXRC-30G4000-C-8x 3000 90 1050 4676 4208 33.1 34.8 134
BXRC-30G4000-D-8x 3000 90 850 3147 2833 27.7 23.5 134
BXRC-30G40H0-B-8x 3000 90 700 3274 2947 33.1 23.2 141
BXRC-30G40H0-C-8x 3000 90 1050 4896 4406 33.1 34.8 141
BXRC-30G40H0-D-8x 3000 90 850 3296 2966 27.7 23.5 140
BXRC-30H4000-B-8x 3000 97 700 2832 2549 33.1 23.2 122
BXRC-30H4000-C-8x 3000 97 1050 4235 3812 33.1 34.8 122
BXRC-30H4000-D-8x 3000 97 850 2851 2566 27.7 23.5 121
BXRC-35E4000-B-8x 3500 80 700 3943 3548 33.1 23.2 170
BXRC-35E4000-C-8x 3500 80 1050 5896 5306 33.1 34.8 170
BXRC-35E4000-D-8x 3500 80 850 3968 3572 27.7 23.5 169
BXRC-35G4000-B-8x 3500 90 700 3240 2916 33.1 23.2 140
BXRC-35G4000-C-8x 3500 90 1050 4845 4361 33.1 34.8 139
BXRC-35G4000-D-8x 3500 90 850 3261 2935 27.7 23.5 139
BXRC-40C4001-B-8x 4000 70 700 4147 3732 33.1 23.2 179
BXRC-40C4001-C-8x 4000 70 1050 6200 5580 33.1 34.8 178
BXRC-40C4001-D-8x 4000 70 850 4174 3756 27.7 23.5 178



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85ºC

(lm)

 T c = 85ºC

(lm)
BXRC-40E4000-B-8x 4000 80 700 3965 3569 33.1 23.2 171
BXRC-40E4000-C-8x 4000 80 1050 5929 5336 33.1 34.8 171
BXRC-40E4000-D-8x 4000 80 850 3991 3592 27.7 23.5 170
BXRC-40G4000-B-8x 4000 90 700 3308 2977 33.1 23.2 143
BXRC-40G4000-C-8x 4000 90 1050 4947 4452 33.1 34.8 142
BXRC-40G4000-D-8x 4000 90 850 3330 2997 27.7 23.5 142
BXRC-50C4001-B-8x 5000 70 700 4169 3752 33.1 23.2 180
BXRC-50C4001-C-8x 5000 70 1050 6234 5611 33.1 34.8 179
BXRC-50C4001-D-8x 5000 70 850 4196 3777 27.7 23.5 178
BXRC-50E4001-B-8x 5000 80 700 4011 3610 33.1 23.2 173
BXRC-50E4001-C-8x 5000 80 1050 5997 5397 33.1 34.8 172
BXRC-50E4001-D-8x 5000 80 850 4037 3633 27.7 23.5 172
BXRC-50G4001-B-8x 5000 90 700 3467 3120 33.1 23.2 150
BXRC-50G4001-C-8x 5000 90 1050 5184 4666 33.1 34.8 149
BXRC-50G4001-D-8x 5000 90 850 3489 3141 27.7 23.5 148
BXRC-57C4001-B-8x 5700 70 700 4056 3650 33.1 23.2 175
BXRC-57C4001-C-8x 5700 70 1050 6065 5458 33.1 34.8 174
BXRC-57C4001-D-8x 5700 70 850 4082 3674 27.7 23.5 174
BXRC-57E4001-B-8x 5700 80 700 3852 3467 33.1 23.2 166
BXRC-57E4001-C-8x 5700 80 1050 5760 5184 33.1 34.8 166
BXRC-57E4001-D-8x 5700 80 850 3877 3489 27.7 23.5 165
BXRC-65C4001-B-8x 6500 70 700 4056 3650 33.1 23.2 175
BXRC-65C4001-C-8x 6500 70 1050 6065 5458 33.1 34.8 174
BXRC-65C4001-D-8x 6500 70 850 4082 3674 27.7 23.5 174
BXRC-65E4001-B-8x 6500 80 700 3897 3508 33.1 23.2 168
BXRC-65E4001-C-8x 6500 80 1050 5828 5245 33.1 34.8 168
BXRC-65E4001-D-8x 6500 80 850 3923 3531 27.7 23.5 167



Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-27E4000-B-8X 2700 80 2000 36.8 9450 73.5 128 E 871051
BXRC-27E4000-C-8X 2700 80 3000 36.8 14131 110.3 128 E 871056
BXRC-27E4000-D-8X 2700 80 2500 30.7 9762 76.7 127 E 871062
BXRC-27G4000-B-8X 2700 90 1750 36.1 6984 63.2 111 F 871156
BXRC-27G4000-C-8X 2700 90 2530 35.9 10124 90.9 111 F 871161
BXRC-27G4000-D-8X 2700 90 2120 30.0 7026 63.6 110 F 871167
BXRC-27G40H0-B-8X 2700 90 1970 36.7 8023 72.3 111 F 871173
BXRC-27G40H0-C-8X 2700 90 2880 36.6 11753 105.3 112 F 871177
BXRC-27G40H0-D-8X 2700 90 2390 30.5 8092 72.9 111 F 871181
BXRC-30C4001-B-8X 3000 70 2000 36.8 10514 73.5 143 E 871312
BXRC-30C4001-C-8X 3000 70 3000 36.8 15721 110.3 142 E 871318
BXRC-30C4001-D-8X 3000 70 2500 30.7 10860 76.7 142 E 871324
BXRC-30E4000-B-8X 3000 80 2000 36.8 10041 73.5 137 E 871381
BXRC-30E4000-C-8X 3000 80 3000 36.8 15014 110.3 136 E 871386
BXRC-30E4000-D-8X 3000 80 2500 30.7 10372 76.7 135 E 871392
BXRC-30G4000-B-8X 3000 90 1980 36.7 8073 72.7 111 F 871498
BXRC-30G4000-C-8X 3000 90 2890 36.6 11811 105.7 112 F 871503
BXRC-30G4000-D-8X 3000 90 2410 30.5 8164 73.6 111 F 871509



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-30G40H0-B-8X 3000 90 2000 36.8 8535 73.5 116 F 871519
BXRC-30G40H0-C-8X 3000 90 3000 36.8 12762 110.3 116 F 871523
BXRC-30G40H0-D-8X 3000 90 2500 30.7 8816 76.7 115 F 871527
BXRC-35E4000-B-8X 3500 80 2000 36.8 10277 73.5 140 E 871655
BXRC-35E4000-C-8X 3500 80 3000 36.8 15367 110.3 139 E 871660
BXRC-35E4000-D-8X 3500 80 2500 30.7 10616 76.7 138 E 871665
BXRC-35G4000-B-8X 3500 90 2000 36.8 8446 73.5 115 F 871722
BXRC-35G4000-C-8X 3500 90 3000 36.8 12629 110.3 114 F 871727
BXRC-35G4000-D-8X 3500 90 2500 30.7 8725 76.7 114 F 871732
BXRC-40C4001-B-8X 4000 70 2000 36.8 10809 73.5 147 D 871817
BXRC-40C4001-C-8X 4000 70 3000 36.8 16162 110.3 146 D 871823
BXRC-40C4001-D-8X 4000 70 2500 30.7 11165 76.7 146 E 871829
BXRC-40E4000-B-8X 4000 80 2000 36.8 10336 73.5 141 E 871887
BXRC-40E4000-C-8X 4000 80 3000 36.8 15456 110.3 140 E 871892
BXRC-40E4000-D-8X 4000 80 2500 30.7 10677 76.7 139 E 871898
BXRC-40G4000-B-8X 4000 90 2000 36.8 8623 73.5 117 F 871956
BXRC-40G4000-C-8X 4000 90 3000 36.8 12894 110.3 117 F 871961
BXRC-40G4000-D-8X 4000 90 2500 30.7 8908 76.7 116 F 871966
BXRC-50C4001-B-8X 5000 70 2000 36.8 10868 73.5 148 D 872035
BXRC-50C4001-C-8X 5000 70 3000 36.8 16250 110.3 147 D 872039
BXRC-50C4001-D-8X 5000 70 2500 30.7 11226 76.7 146 D 872043
BXRC-50E4001-B-8X 5000 80 2000 36.8 10454 73.5 142 E 872087
BXRC-50E4001-C-8X 5000 80 3000 36.8 15632 110.3 142 E 872091
BXRC-50E4001-D-8X 5000 80 2500 30.7 10799 76.7 141 E 872095
BXRC-50G4001-B-8X 5000 90 2000 36.8 9037 73.5 123 E 872140
BXRC-50G4001-C-8X 5000 90 3000 36.8 13513 110.3 122 E 872144
BXRC-50G4001-D-8X 5000 90 2500 30.7 9335 76.7 122 E 872148
BXRC-57C4001-B-8X 5700 70 2000 36.8 10573 73.5 144 E 872243
BXRC-57C4001-C-8X 5700 70 3000 36.8 15809 110.3 143 E 872247
BXRC-57C4001-D-8X 5700 70 2500 30.7 10921 76.7 142 E 872251
BXRC-57E4001-B-8X 5700 80 2000 36.8 10041 73.5 137 E 872291
BXRC-57E4001-C-8X 5700 80 3000 36.8 15014 110.3 136 E 872295
BXRC-57E4001-D-8X 5700 80 2500 30.7 10372 76.7 135 E 872299
BXRC-65C4001-B-8X 6500 70 2000 36.8 10573 73.5 144 E 872340
BXRC-65C4001-C-8X 6500 70 3000 36.8 15809 110.3 143 E 872344
BXRC-65C4001-D-8X 6500 70 2500 30.7 10921 76.7 142 E 872348



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-65E4001-B-8X 6500 80 2000 36.8 10159 73.5 138 E 872389
BXRC-65E4001-C-8X 6500 80 3000 36.8 15191 110.3 138 E 872393
BXRC-65E4001-D-8X 6500 80 2500 30.7 10494 76.7 137 E 872397

Related products
