Bridgelux® Vero® Series Gen 8 Vero® 29 Array

Categories: ,

Description

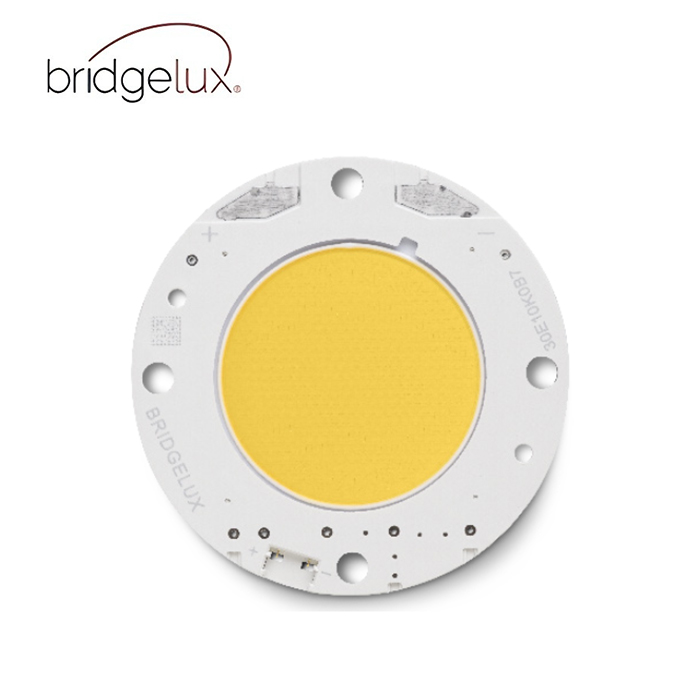

Bridgelux® Gen 8 Vero® 29 Array

The Vero® Series is a revolutionary advancement in chip on board (COB) light source technology and innovation, simplifying the luminaire design and manufacturing processes. Vero Chip on Board (COB) LED arrays are available in four LES configurations, engineered to enable new degrees of flexibility and reliability over a broad range of electrical currents.

Vero arrays deliver increased lumen density to enable improved beam control and precision lighting with 2 and 3 SDCM color control standard for clean and consistent uniform lighting. Vero products include an onboard connector port that enables a solder-free electrical interconnect, and simple mounting features for plug-and-play installation.

Features
• On board connector port
• Top side part number markings
• Efficacy of 185 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30% increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes (backside marking)
• Thermally isolated solder pads
• 10-Year warranty

Benefits
• Solder free installation and field upgradability
• Improved inventory management and quality control
• Enables high efficiency lighting systems and lower operating costs
• Supports the trend toward luminaire miniaturization and delivers enhanced optical control
• Design flexibility for a broad range of lighting applications
• Clean white light without pixelation
• Uniform consistent white light
• Design flexibility for multi-source applications
• Enhanced ease of use and installation
• Design with confidence

Product Family Product Part Number Doc Number Gen CCT (K) CRI Options SDCM Typ. Flux(lm) Current (mA) Voltage (V) Efficacy (lm/W) Substrate Size (mm)
BXRC Vero Vero 29B BXRC-xxx10Kx-B-8x DS423 8 2700-6500 70, 80, 90, 97 2, 3 , 4 13010 1400 50.2 185 29
BXRC Vero Vero 29C BXRC-xxx10Kx-C-8x DS423 8 2700-6500 70, 80, 90, 97 2, 3 , 4 16040 1300 66.7 185 29
BXRC Vero Vero 29D BXRC-xxx10Kx-D-8x DS423 8 2700-6500 70, 80, 90, 97 2, 3 , 4 11445 1700 36.4 185 29

product-856-714



Table 1: Selection Guide, Pulsed Measurement Data (Tj = Tc = 25°C)

Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRC-27E10K0-B-8x 2700 80 1400 12247 11022 50.2 70.3 174
BXRC-27E10K0-C-8x 2700 80 1300 15099 13589 66.7 86.7 174
BXRC-27E10K0-D-8x 2700 80 1700 10771 9694 36.4 61.9 174
BXRC-27G10K0-B-8x 2700 90 1400 10103 9093 50.2 70.3 144
BXRC-27G10K0-C-8x 2700 90 1300 12457 11211 66.7 86.7 144
BXRC-27G10K0-D-8x 2700 90 1700 8886 7997 36.4 61.9 144
BXRC-27G1KH0-B-8x 2700 90 1400 10540 9486 50.2 70.3 150
BXRC-27G1KH0-C-8x 2700 90 1300 12995 11695 66.7 86.7 150
BXRC-27G1KH0-D-8x 2700 90 1700 9270 8343 36.4 61.9 150
BXRC-27H10K0-B-8x 2700 97 1400 8955 8060 50.2 70.3 127
BXRC-27H10K0-C-8x 2700 97 1300 11041 9937 66.7 86.7 127
BXRC-27H10K0-D-8x 2700 97 1700 7876 7089 36.4 61.9 127
BXRC-30C10K1-B-8x 3000 70 1400 13624 12262 50.2 70.3 194
BXRC-30C10K1-C-8x 3000 70 1300 16798 15118 66.7 86.7 194
BXRC-30C10K1-D-8x 3000 70 1700 11983 10784 36.4 61.9 194
BXRC-30E10K0-B-8x 3000 80 1400 13012 11711 50.2 70.3 185
BXRC-30E10K0-C-8x 3000 80 1300 16043 14439 66.7 86.7 185
BXRC-30E10K0-D-8x 3000 80 1700 11444 10300 36.4 61.9 185
BXRC-30G10K0-B-8x 3000 90 1400 10563 9506 50.2 70.3 150
BXRC-30G10K0-C-8x 3000 90 1300 13023 11721 66.7 86.7 150
BXRC-30G10K0-D-8x 3000 90 1700 9290 8361 36.4 61.9 150
BXRC-30G1KH0-B-8x 3000 90 1400 11060 9954 50.2 70.3 157
BXRC-30G1KH0-C-8x 3000 90 1300 13637 12273 66.7 86.7 157
BXRC-30G1KH0-D-8x 3000 90 1700 9727 8755 36.4 61.9 157
BXRC-30H10K0-B-8x 3000 97 1400 9568 8611 50.2 70.3 136
BXRC-30H10K0-C-8x 3000 97 1300 11796 10617 66.7 86.7 136
BXRC-30H10K0-D-8x 3000 97 1700 8415 7573 36.4 61.9 136
BXRC-35E10K0-B-8x 3500 80 1400 13318 11986 50.2 70.3 190
BXRC-35E10K0-C-8x 3500 80 1300 16420 14778 66.7 86.7 189
BXRC-35E10K0-D-8x 3500 80 1700 11713 10542 36.4 61.9 189
BXRC-35G10K0-B-8x 3500 90 1400 10945 9851 50.2 70.3 156
BXRC-35G10K0-C-8x 3500 90 1300 13495 12145 66.7 86.7 156
BXRC-35G10K0-D-8x 3500 90 1700 9626 8664 36.4 61.9 156
BXRC-40C10K1-B-8x 4000 70 1400 14007 12606 50.2 70.3 199
BXRC-40C10K1-C-8x 4000 70 1300 17270 15543 66.7 86.7 199
BXRC-40C10K1-D-8x 4000 70 1700 12319 11087 36.4 61.9 199



Part Number Nominal

CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical Pulsed

Flux4,5,6

Tc = 25ºC

(lm)

 Minimum

Pulsed Flux6,7

Tc = 25ºC

(lm)

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
BXRC-40E10K0-B-8x 4000 80 1400 13395 12055 50.2 70.3 191
BXRC-40E10K0-C-8x 4000 80 1300 16515 14863 66.7 86.7 190
BXRC-40E10K0-D-8x 4000 80 1700 11781 10603 36.4 61.9 190
BXRC-40G10K0-B-8x 4000 90 1400 11175 10058 50.2 70.3 159
BXRC-40G10K0-C-8x 4000 90 1300 13778 12400 66.7 86.7 159
BXRC-40G10K0-D-8x 4000 90 1700 9828 8846 36.4 61.9 159
BXRC-50C10K1-B-8x 5000 70 1400 14084 12675 50.2 70.3 200
BXRC-50C10K1-C-8x 5000 70 1300 17364 15628 66.7 86.7 200
BXRC-50C10K1-D-8x 5000 70 1700 12386 11148 36.4 61.9 200
BXRC-50E10K1-B-8x 5000 80 1400 13548 12193 50.2 70.3 193
BXRC-50E10K1-C-8x 5000 80 1300 16704 15033 66.7 86.7 193
BXRC-50E10K1-D-8x 5000 80 1700 11915 10724 36.4 61.9 193
BXRC-50G10K1-B-8x 5000 90 1400 11711 10540 50.2 70.3 167
BXRC-50G10K1-C-8x 5000 90 1300 14439 12995 66.7 86.7 167
BXRC-50G10K1-D-8x 5000 90 1700 10300 9270 36.4 61.9 166
BXRC-56H10K0-C-8x 5600 97 1300 13118 11806 66.7 86.7 151
BXRC-56H10K0-D-8x 5600 97 1700 9357 8421 36.4 61.9 151
BXRC-57C10K1-B-8x 5700 70 1400 13701 12331 50.2 70.3 195
BXRC-57C10K1-C-8x 5700 70 1300 16892 15203 66.7 86.7 195
BXRC-57C10K1-D-8x 5700 70 1700 12050 10845 36.4 61.9 195
BXRC-57E10K1-B-8x 5700 80 1400 13012 11711 50.2 70.3 185
BXRC-57E10K1-C-8x 5700 80 1300 16043 14439 66.7 86.7 185
BXRC-57E10K1-D-8x 5700 80 1700 11444 10300 36.4 61.9 185
BXRC-65C10K1-B-8x 6500 70 1400 13701 12331 50.2 70.3 195
BXRC-65C10K1-C-8x 6500 70 1300 16892 15203 66.7 86.7 195
BXRC-65C10K1-D-8x 6500 70 1700 12050 10845 36.4 61.9 195
BXRC-65E10K1-B-8x 6500 80 1400 13165 11849 50.2 70.3 187
BXRC-65E10K1-C-8x 6500 80 1300 16232 14609 66.7 86.7 187
BXRC-65E10K1-D-8x 6500 80 1700 11579 10421 36.4 61.9 187



Table 2: Selection Guide, Stabilized DC Performance (Tc = 85°C) 4,5

Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85ºC

(lm)

 T c = 85ºC

(lm)
BXRC-27E10K0-B-8x 2700 80 1400 11022 9920 49.2 68.9 160
BXRC-27E10K0-C-8x 2700 80 1300 13589 12230 65.4 85.0 160
BXRC-27E10K0-D-8x 2700 80 1700 9694 8724 35.7 60.7 160
BXRC-27G10K0-B-8x 2700 90 1400 9093 8184 49.2 68.9 132
BXRC-27G10K0-C-8x 2700 90 1300 11211 10090 65.4 85.0 132
BXRC-27G10K0-D-8x 2700 90 1700 7997 7198 35.7 60.7 132
BXRC-27G1KH0-B-8x 2700 90 1400 9486 8537 49.2 68.9 138
BXRC-27G1KH0-C-8x 2700 90 1300 11695 10526 65.4 85.0 138
BXRC-27G1KH0-D-8x 2700 90 1700 8343 7508 35.7 60.7 138
BXRC-27H10K0-B-8x 2700 97 1400 8060 7254 49.2 68.9 117
BXRC-27H10K0-C-8x 2700 97 1300 9937 8944 65.4 85.0 117
BXRC-27H10K0-D-8x 2700 97 1700 7089 6380 35.7 60.7 117
BXRC-30C10K1-B-8x 3000 70 1400 12262 11036 49.2 68.9 178
BXRC-30C10K1-C-8x 3000 70 1300 15118 13606 65.4 85.0 178
BXRC-30C10K1-D-8x 3000 70 1700 10784 9706 35.7 60.7 178
BXRC-30E10K0-B-8x 3000 80 1400 11711 10540 49.2 68.9 170
BXRC-30E10K0-C-8x 3000 80 1300 14439 12995 65.4 85.0 170
BXRC-30E10K0-D-8x 3000 80 1700 10300 9270 35.7 60.7 170
BXRC-30G10K0-B-8x 3000 90 1400 9506 8556 49.2 68.9 138
BXRC-30G10K0-C-8x 3000 90 1300 11721 10549 65.4 85.0 138
BXRC-30G10K0-D-8x 3000 90 1700 8361 7525 35.7 60.7 138
BXRC-30G1KH0-B-8x 3000 90 1400 9954 8959 49.2 68.9 144
BXRC-30G1KH0-C-8x 3000 90 1300 12273 11046 65.4 85.0 144
BXRC-30G1KH0-D-8x 3000 90 1700 8755 7879 35.7 60.7 144
BXRC-30H10K0-B-8x 3000 97 1400 8611 7750 49.2 68.9 125
BXRC-30H10K0-C-8x 3000 97 1300 10617 9555 65.4 85.0 125
BXRC-30H10K0-D-8x 3000 97 1700 7573 6816 35.7 60.7 125
BXRC-35E10K0-B-8x 3500 80 1400 11986 10788 49.2 68.9 174
BXRC-35E10K0-C-8x 3500 80 1300 14778 13301 65.4 85.0 174
BXRC-35E10K0-D-8x 3500 80 1700 10542 9488 35.7 60.7 174
BXRC-35G10K0-B-8x 3500 90 1400 9851 8866 49.2 68.9 143
BXRC-35G10K0-C-8x 3500 90 1300 12145 10931 65.4 85.0 143
BXRC-35G10K0-D-8x 3500 90 1700 8664 7797 35.7 60.7 143
BXRC-40C10K1-B-8x 4000 70 1400 12606 11346 49.2 68.9 183
BXRC-40C10K1-C-8x 4000 70 1300 15543 13989 65.4 85.0 183
BXRC-40C10K1-D-8x 4000 70 1700 11087 9978 35.7 60.7 183



Part Number Nominal CCT1

(K)

 CRI2 Nominal Drive

Current3

(mA)

 Typical DC

Flux4,5

 Minimum DC

Flux6

 Typical Vf

(V)

 Typical

Power

(W)

 Typical

Efficacy

(lm/W)
T c = 85ºC

(lm)

 T c = 85ºC

(lm)
BXRC-40E10K0-B-8x 4000 80 1400 12055 10850 49.2 68.9 175
BXRC-40E10K0-C-8x 4000 80 1300 14863 13377 65.4 85.0 175
BXRC-40E10K0-D-8x 4000 80 1700 10603 9542 35.7 60.7 175
BXRC-40G10K0-B-8x 4000 90 1400 10058 9052 49.2 68.9 146
BXRC-40G10K0-C-8x 4000 90 1300 12400 11160 65.4 85.0 146
BXRC-40G10K0-D-8x 4000 90 1700 8846 7961 35.7 60.7 146
BXRC-50C10K1-B-8x 5000 70 1400 12675 11408 49.2 68.9 184
BXRC-50C10K1-C-8x 5000 70 1300 15628 14065 65.4 85.0 184
BXRC-50C10K1-D-8x 5000 70 1700 11148 10033 35.7 60.7 184
BXRC-50E10K1-B-8x 5000 80 1400 12193 10974 49.2 68.9 177
BXRC-50E10K1-C-8x 5000 80 1300 15033 13530 65.4 85.0 177
BXRC-50E10K1-D-8x 5000 80 1700 10724 9651 35.7 60.7 177
BXRC-50G10K1-B-8x 5000 90 1400 10540 9486 49.2 68.9 153
BXRC-50G10K1-C-8x 5000 90 1300 12995 11695 65.4 85.0 153
BXRC-50G10K1-D-8x 5000 90 1700 9270 8343 35.7 60.7 153
BXRC-56H10K0-C-8x 5600 97 1300 11806 10626 65.4 85.0 139
BXRC-56H10K0-D-8x 5600 97 1700 8422 7579 35.7 60.7 139
BXRC-57C10K1-B-8x 5700 70 1400 12331 11098 49.2 68.9 179
BXRC-57C10K1-C-8x 5700 70 1300 15203 13683 65.4 85.0 179
BXRC-57C10K1-D-8x 5700 70 1700 10845 9760 35.7 60.7 179
BXRC-57E10K1-B-8x 5700 80 1400 11711 10540 49.2 68.9 170
BXRC-57E10K1-C-8x 5700 80 1300 14439 12995 65.4 85.0 170
BXRC-57E10K1-D-8x 5700 80 1700 10300 9270 35.7 60.7 170
BXRC-65C10K1-B-8x 6500 70 1400 12331 11098 49.2 68.9 179
BXRC-65C10K1-C-8x 6500 70 1300 15203 13683 65.4 85.0 179
BXRC-65C10K1-D-8x 6500 70 1700 10845 9760 35.7 60.7 179
BXRC-65E10K1-B-8x 6500 80 1400 11849 10664 49.2 68.9 172
BXRC-65E10K1-C-8x 6500 80 1300 14609 13148 65.4 85.0 172
BXRC-65E10K1-D-8x 6500 80 1700 10421 9379 35.7 60.7 172



Table 3: Part numbers registered in European Product Registry for Energy Labeling

PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-27E10K0-B-8X 2700 80 4750 55.5 33064 263.6 125 E 871017
BXRC-27E10K0-C-8X 2700 80 4750 74.3 43264 353.1 123 E 871022
BXRC-27E10K0-D-8X 2700 80 5500 39.9 27971 219.5 127 E 871027
BXRC-27G10K0-B-8X 2700 90 3590 53.5 21558 192.0 112 F 871098
BXRC-27G10K0-C-8X 2700 90 3220 70.7 25624 227.8 113 F 871103
BXRC-27G10K0-D-8X 2700 90 4440 38.8 19307 172.1 112 F 871108
BXRC-27G1KH0-B-8X 2700 90 4170 54.5 25559 227.2 112 F 871114
BXRC-27G1KH0-C-8X 2700 90 3830 72.2 31121 276.4 113 F 871118
BXRC-27G1KH0-D-8X 2700 90 5090 39.5 22584 200.9 112 F 871122
BXRC-30C10K1-B-8X 3000 70 4750 55.5 36784 263.6 140 E 871276
BXRC-30C10K1-C-8X 3000 70 4750 74.3 48131 353.1 136 E 871282
BXRC-30C10K1-D-8X 3000 70 5500 39.9 31118 219.5 142 E 871288
BXRC-30E10K0-B-8X 3000 80 4750 55.5 35131 263.6 133 E 871347
BXRC-30E10K0-C-8X 3000 80 4750 74.3 45968 353.1 130 E 871352
BXRC-30E10K0-D-8X 3000 80 5500 39.9 29719 219.5 135 E 871357
BXRC-30G10K0-B-8X 3000 90 4200 54.5 25768 229.1 112 F 871436
BXRC-30G10K0-C-8X 3000 90 3860 72.2 31398 278.9 113 F 871441
BXRC-30G10K0-D-8X 3000 90 5130 39.5 22778 202.7 112 F 871446



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-30G1KH0-B-8X 3000 90 4750 55.5 29861 263.6 113 F 871452
BXRC-30G1KH0-C-8X 3000 90 4480 73.7 37226 330.2 113 F 871456
BXRC-30G1KH0-D-8X 3000 90 5500 39.9 25262 219.5 115 F 871460
BXRC-35E10K0-B-8X 3500 80 4750 55.5 35957 263.6 136 E 871621
BXRC-35E10K0-C-8X 3500 80 4750 74.3 47050 353.1 133 E 871626
BXRC-35E10K0-D-8X 3500 80 5500 39.9 30419 219.5 139 E 871631
BXRC-35G10K0-B-8X 3500 90 4660 55.3 29058 257.9 113 F 871689
BXRC-35G10K0-C-8X 3500 90 4340 73.4 35898 318.5 113 F 871694
BXRC-35G10K0-D-8X 3500 90 5500 39.9 24999 219.5 114 F 871699
BXRC-40C10K1-B-8X 4000 70 4750 55.5 37817 263.6 143 E 871779
BXRC-40C10K1-C-8X 4000 70 4750 74.3 49483 353.1 140 E 871785
BXRC-40C10K1-D-8X 4000 70 5500 39.9 31992 219.5 146 E 871791
BXRC-40E10K0-B-8X 4000 80 4750 55.5 36164 263.6 137 E 871853
BXRC-40E10K0-C-8X 4000 80 4750 74.3 47320 353.1 134 E 871858
BXRC-40E10K0-D-8X 4000 80 5500 39.9 30594 219.5 139 E 871863
BXRC-40G10K0-B-8X 4000 90 4750 55.5 30171 263.6 114 F 871922
BXRC-40G10K0-C-8X 4000 90 4610 74.0 38488 341.2 113 F 871927
BXRC-40G10K0-D-8X 4000 90 5500 39.9 25524 219.5 116 F 871932
BXRC-50C10K1-B-8X 5000 70 4750 55.5 38024 263.6 144 E 872009
BXRC-50C10K1-C-8X 5000 70 4750 74.3 49754 353.1 141 E 872013
BXRC-50C10K1-D-8X 5000 70 5500 39.9 32167 219.5 147 D 872017
BXRC-50E10K1-B-8X 5000 80 4750 55.5 36577 263.6 139 E 872061
BXRC-50E10K1-C-8X 5000 80 4750 74.3 47861 353.1 136 E 872065
BXRC-50E10K1-D-8X 5000 80 5500 39.9 30943 219.5 141 E 872069
BXRC-50G10K1-B-8X 5000 90 4750 55.5 31618 263.6 120 E 872113
BXRC-50G10K1-C-8X 5000 90 4750 74.3 41371 353.1 117 F 872117
BXRC-50G10K1-D-8X 5000 90 5500 39.9 26747 219.5 122 E 872121
BXRC-57C10K1-B-8X 5700 70 4750 55.5 36990 263.6 140 E 872218
BXRC-57C10K1-C-8X 5700 70 4750 74.3 48402 353.1 137 E 872222
BXRC-57C10K1-D-8X 5700 70 5500 39.9 31293 219.5 143 E 872226
BXRC-57E10K1-B-8X 5700 80 4750 55.5 35131 263.6 133 E 872267
BXRC-57E10K1-C-8X 5700 80 4750 74.3 45968 353.1 130 E 872271
BXRC-57E10K1-D-8X 5700 80 5500 39.9 29719 219.5 135 E 872275
BXRC-65C10K1-B-8X 6500 70 4750 55.5 36990 263.6 140 E 872315
BXRC-65C10K1-C-8X 6500 70 4750 74.3 48402 353.1 137 E 872319
BXRC-65C10K1-D-8X 6500 70 5500 39.9 31293 219.5 143 E 872323



PART NUMBER1 CCT

(K)

 CRI Current2

(mA)

 Vf

(V)

 Useful

flux3 (Φuse) at

85C

(lm)

 Pow-

er

(W)

 Efficacy

(lm/W)

 Energy

efficiency

class4

product-43-25

 Regis-

tration

No
BXRC-65E10K1-B-8X 6500 80 4750 55.5 35544 263.6 135 E 872365
BXRC-65E10K1-C-8X 6500 80 4750 74.3 46509 353.1 132 E 872369
BXRC-65E10K1-D-8X 6500 80 5500 39.9 30069 219.5 137 E 872373

Related products
