Vesta® Series Tunable White HD TW 9mm Array

Description

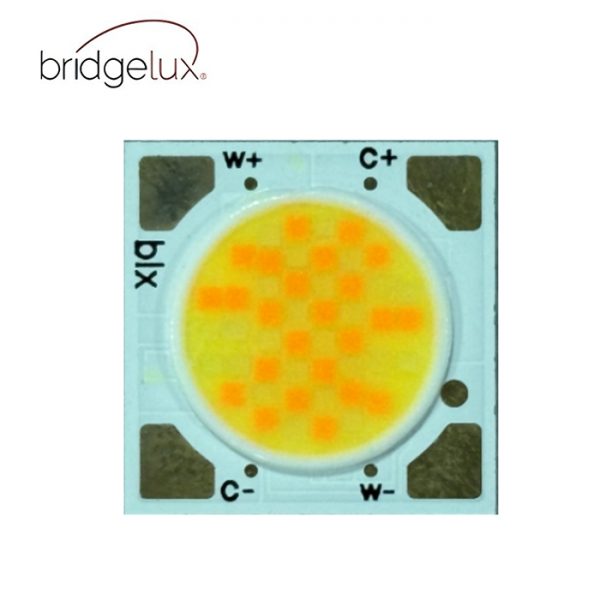

Bridgelux® Vesta® Series Tunable White HD TW 9mm Array

Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform. The arrays incorporate several features to simplify design integration and assembly.

Table 1: Selection Guide, Measurement Data(Tj = Tc = 25°C)

Part Number

Nominal

CCT 1

Tc=25°C

(K)

CRI2

Tc=85°C

Nominal

Drive

Current,

per channel

(mA)

Typical Vf 3

Tc=25°C

(V)

Typical

Power

Tc=25°C

(W)

Typical

Pulsed Flux

3, 4, 5 T =25°C

Typical

Efficacy

Tc=25°C

(lm/W)

Minimum

Pulsed Flux

8 T =25°C

BXRV-TR-2765G-10D0-A-3x

2700

500

34.2

17.1

1721

101

1549

6500

500

34.2

17.1

2140

125

1926

Table 2: Selection Guide, Measurement Data(Tj = Tc = 85°C)

Part Number

Nominal

CCT 1

Tc=85°C

(K)

CRI2

Tc=85°C

Nominal

Drive

Current,

per channel

(mA)

Typical Vf 3

Tc=85°C

(V)

Typical

Power

Tc=85°C

(W)

Typical

Pulsed Flux

3, 4, 5 T =85°C

Typical Effi-

cacy Tc=85°C

(lm/W)

Minimum

Pulsed Flux

8 T =85°C

BXRV-TR-2765G-10D0-A-3x

2700

500

33.1

16.6

1488

1339

6500

500

33.1

16.5

1839

111

1655

Table 4: Electrical Characteristics

Part Number	CCT Channel (K)	Nominal Drive Current (mA)	Forward Voltage Pulsed, Tc = 25ºC (V) 1, 2, 3			Typical Tem– perature Coefficient of Forward Voltage 4 ∆Vf/∆Tc (mV/ºC)	Driver Selection Voltages6 (V)
			Minimum	Typical	Maximum
							Vf Min. Hot Tc = 105ºC (V)	Vf Max. Cold Tc = -40ºC (V)
BXRV-TR-xxxxx-10D0-A-3x	2700	500	32.1	34.2	36.2	-12.7	31.1	37.0
	6500	500	32.1	34.2	36.2	-14.5	31.1	37.2

Table 5: Maximum Ratings

Parameter	Maximum Rating
LED Junction Temperature (Tj)	125.C
Storage Temperature	-40.C to 85.C
Operating Case Temperature1 (Tc)	85.C
Soldering Temperature2	350°C or lower for a maximum of 3 seconds with electric soldering iron
Maximum Total Drive Current4	800
	Channel 1 2700K	Channel 2 6500K
Maximum Drive Current Per Channel3,4	800mA
Maximum Peak Pulsed Drive Current5	1000mA
