What is the WS2812B LED?

The WS2812B LED is a smart control LED with an integrated driver IC, allowing you to control the color and brightness of each RGB LED individually. Unlike traditional RGB LEDs that require multiple wires and independent control, the WS2812B LED integrates the LED and its control circuitry into a single package, simplifying the control system. Only three wires (data, power, and ground) are needed to drive the WS2812B LED.

Each WS2812B LED contains one red, one green, and one blue diode, packaged in a small chip. By adjusting the brightness of each diode, the WS2812B LED can produce over 16 million different colors, offering a rich color range. These WS2812B LEDs are typically arranged in strips, rings, or matrices, making them ideal for creating dynamic and colorful lighting effects, suitable for a wide range of creative lighting projects.

Key Features of WS2812B LEDs

01/- Independent Addressing: Each WS2812B LED can be independently controlled, enabling complex animations and effects. This is a core advantage that distinguishes WS2812B LEDs from ordinary RGB LEDs.

02/- Single Data Line Control: Hundreds of WS2812B LEDs can be controlled with just one data pin on the microcontroller, significantly simplifying circuit design and reducing project setup difficulty.

03/- Built-in Integrated Circuit: Each WS2812B LED chip includes a driver IC, eliminating the need for external driver modules, thus simplifying wiring and saving space and material costs.

04/- Wide Operating Voltage: WS2812B LEDs typically operate on a 5V power supply, making them perfectly compatible with most microcontrollers such as Arduino and ESP32, offering extremely wide compatibility.

05/- High Refresh Rate: The WS2812B LED provides smooth color transitions, with no stuttering or flickering, making it ideal for video and graphics display applications.

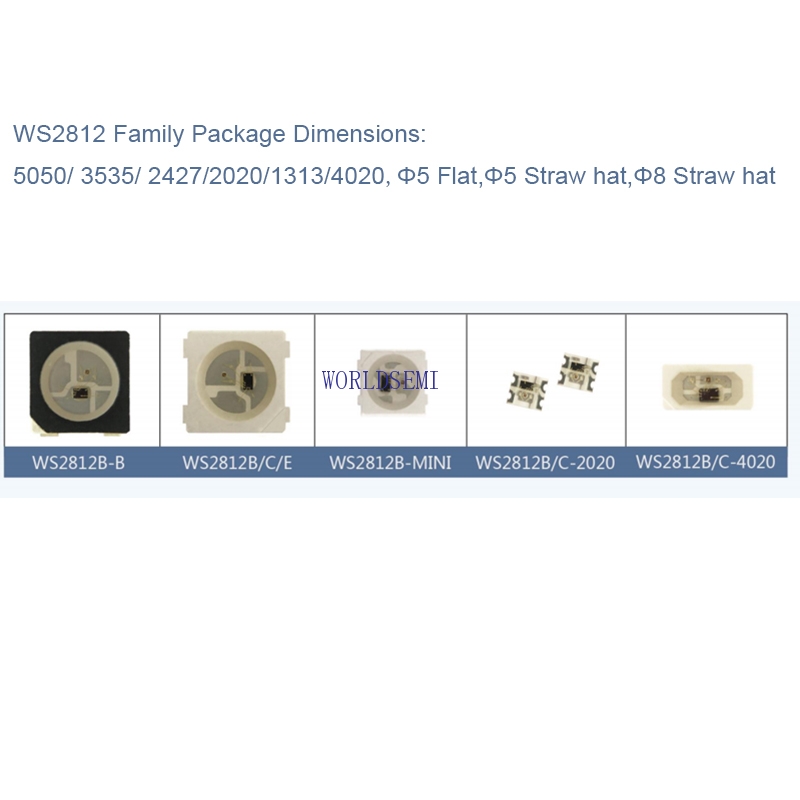

06/- Compact Size: The WS2812B LED typically uses a 5050 SMD package (5mm x 5mm), making it compact and ideal for installation and layout in confined spaces.

Common Applications of WS2812B LEDs

The WS2812B LED strip is widely used in various projects due to its flexibility and vibrant color output. Core applications include:

Decorative Lighting

The WS2812B LED strip is widely used in home décor, holiday lighting, and event decoration to create ambient lighting effects.

Digital Signage

WS2812B LED strips can be arranged into pixel matrices for customized signage and displays, enabling dynamic text and graphic displays.

Art Installations

Artists frequently use WS2812B LED strips to add interactive or ambient lighting effects, giving artworks more visual depth.

Gaming and PC Modification

From backlit keyboards to custom PC cases, WS2812B LED strips add personal charm and create a unique e-sports visual experience.

WORLDSEMI CO.,LIMITED WS2812B LED Series Product Upgrade Notice

This upgrade comprehensively enhances the core WS2812B LED product, optimizing several core performance aspects and adapting to more usage scenarios. Specific upgrade highlights are as follows:

1. Ultra-Low Static Power Consumption: The WS2812B LED’s built-in IC standby current is ≤ 1 µA; operating current is reduced from 1 mA to 200 µA; the WS2812B LED achieves over 80% energy savings in basic power consumption, significantly improving battery life and energy efficiency.

2. Interchangeable DIN/DOUT: The WS2812B LED input/output pins are freely interchangeable, simplifying PCB layout, facilitating connection to more DIY products, and reducing the probability of wiring errors.

3. 3.3V Constant Current Drive: Optimized RGB channel voltage drop of the WS2812B LED allows for consistent light emission with only 3.3V power supply, achieving the same luminous consistency as with 5V. Using a 3.3V power supply can save over 30% energy.

4. Zero Flicker at Startup: Completely eliminates random flickering during WS2812B LED startup, improving the overall visual experience and optimizing the lighting quality.

5. Enhanced Electromagnetic Compatibility: Optimized internal structure of the WS2812B LED reduces radiated emissions by over 6dB, making it easier to pass radiated emission tests and suitable for scenarios with stringent electromagnetic requirements.

6. Control Signal Upgrade: The WS2812B LED control signal level has been adjusted to 0.6VDD to ensure that a 3.3V signal level can fully control the WS2812B LED device when powered by 5V, thus ensuring compatibility with more low-voltage control modules.

After the upgrade, the WS2812B LED model suffix will be uniformly set to V6, with the naming convention: WS2812B-V6 (5050 package), WS2812B-2020-V6 (2020 package). Mixing old and new batches will not affect the normal operation of the WS2812B LEDs, and inventory switching will begin immediately.

In addition, we also offer a WS2812B LED V7 version. Compared to the V6 version, the cost is less than 20% higher, but the brightness is more than doubled. If you require a higher brightness version of the WS2812B LED, please send us samples for testing and comparison!
