Description

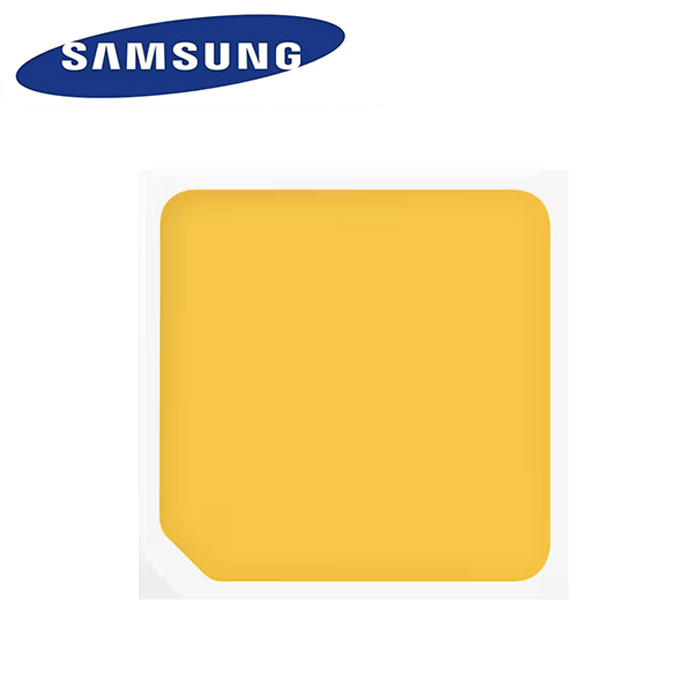

High Power LED Series–LH508C General
- Wattage (Max) : 5.6 W @ 220 mA
- Luminous Flux: 700 lm @ 160 mA
- Luminous Efficacy: 180 lm/W @ 160 mA
Features & Benefits
• Operates at a maximum current of up to 220mA
• Uniform light distribution under any beam angle
• Strengthened Anti sulfurization
• Color binning @ 85°C
High efficacy and lumen makes
The LH508C suitable for Streetlight and High-bay applications
| CRI | CCT | PART NUMBER | CHROM RANK | LUMINOUS FLUX (lm) @ 160 mA | |||
|---|---|---|---|---|---|---|---|
| RANK | BINS | MIN | MAX | ||||
| 70+ | 2200K | SPHWH1L5N603XEY3A2 SPHWH1L5N603XEY5A2 |
Y3 Y5 |
A2 | 51 55 |
510 550 |
550 590 |
| 2700K | SPHWH1L5N603XEW3A2 SPHWH1L5N603XEW5A2 |
W3 W5 |
A2 | 59 63 |
590 630 |
630 670 |
|
| 3000K | SPHWH1L5N603XEV3A2 SPHWH1L5N603XEV5A2 |
V3 V5 |
A2 | 62 66 |
620 660 |
660 700 |
|
| 3500K | SPHWH1L5N603XEU3A2 SPHWH1L5N603XEU5A2 |
U3 U5 |
A2 | 64 68 |
640 680 |
680 720 |
|
| 4000K | SPHWH1L5N603XET3A2 SPHWH1L5N603XET5A2 |
T3 T5 |
A2 | 66 70 |
660 700 |
700 740 |
|
| 5000K | SPHWH1L5N603XER3A2 SPHWH1L5N603XER5A2 |
R3 R5 |
A2 | 66 70 |
660 700 |
700 740 |
|
| 5700K | SPHWH1L5N603XEQ3A2 SPHWH1L5N603XEQ5A2 |
Q3 Q5 |
A2 | 64 68 |
640 680 |
680 720 |
|
| 6500K | SPHWH1L5N603XEP3A2 SPHWH1L5N603XEP5A2 |
P3 P5 |
A2 | 63 67 |
630 670 |
670 710 |
|
| 80+ | 2200K | SPHWH1L5N605XEY3A2 SPHWH1L5N605XEY5A2 |
Y3 Y5 |
A2 | 44 48 |
440 480 |
480 520 |
| 2700K | SPHWH1L5N605XEW3A2 SPHWH1L5N605XEW5A2 |
W3 W5 |
A2 | 53 57 |
530 570 |
570 610 |
|
| 3000K | SPHWH1L5N605XEV3A2 SPHWH1L5N605XEV5A2 |
V3 V5 |
A2 | 55 59 |
550 590 |
590 630 |
|
| 3500K | SPHWH1L5N605XEU3A2 SPHWH1L5N605XEU5A2 |
U3 U5 |
A2 | 58 62 |
580 620 |
620 660 |
|
| 4000K | SPHWH1L5N605XET3A2 SPHWH1L5N605XET5A2 |
T3 T5 |
A2 | 60 64 |
600 640 |
640 680 |
|
| 5000K | SPHWH1L5N605XER3A2 SPHWH1L5N605XER5A2 |
R3 R5 |
A2 | 60 64 |
600 640 |
640 680 |
|
| 5700K | SPHWH1L5N605XEQ3A2 SPHWH1L5N605XEQ5A2 |
Q3 Q5 |
A2 | 59 63 |
590 630 |
630 670 |
|
| 6500K | SPHWH1L5N605XEP3A2 SPHWH1L5N605XEP5A2 |
P3 P5 |
A2 | 59 63 |
590 630 |
630 670 |
|
| 90+ | 2200K | SPHWH1L5N607XEY3A2 SPHWH1L5N607XEY5A2 |
Y3 Y5 |
A2 | 40 44 |
400 440 |
440 480 |
| 2700K | SPHWH1L5N607XEW3A2 SPHWH1L5N607XEW5A2 |
W3 W5 |
A2 | 45 49 |
450 490 |
490 530 |
|
| 3000K | SPHWH1L5N607XEV3A2 SPHWH1L5N607XEV5A2 |
V3 V5 |
A2 | 47 51 |
470 510 |
510 550 |
|
| 3500K | SPHWH1L5N607XEU3A2 SPHWH1L5N607XEU5A2 |
U3 U5 |
A2 | 48 52 |
480 520 |
520 560 |
|
| 4000K | SPHWH1L5N607XET3A2 SPHWH1L5N607XET5A2 |
T3 T5 |
A2 | 49 53 |
490 530 |
530 570 |
|
| 5000K | SPHWH1L5N607XER3A2 SPHWH1L5N607XER5A2 |
R3 R5 |
A2 | 49 53 |
490 530 |
530 570 |
|
| 5700K | SPHWH1L5N607XEQ3A2 SPHWH1L5N607XEQ5A2 |
Q3 Q5 |
A2 | 49 53 |
490 530 |
530 570 |
|
