Description

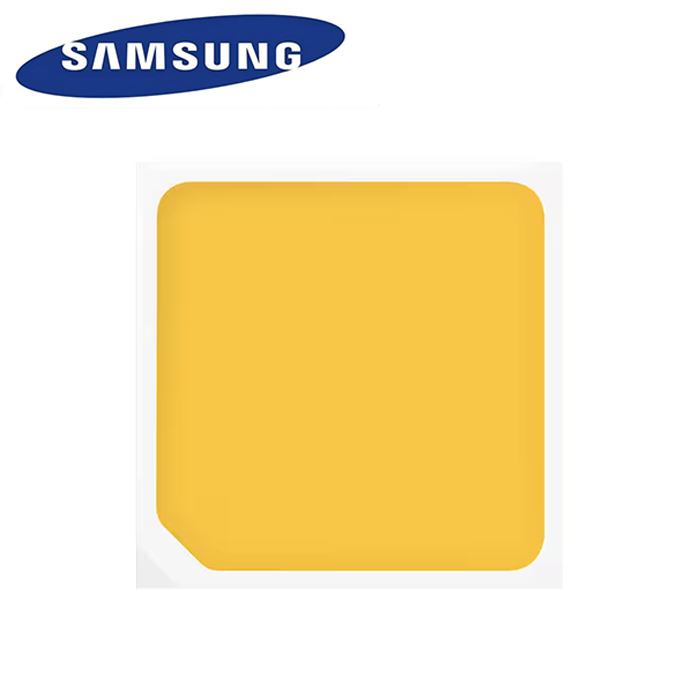

High Power LED Series — LH508D General
- Wattage (Max) : 6.4 W @ 250 mA
- Luminous Flux: 720 lm @ 160 mA
- Luminous Efficacy: 185 lm/W @ 160 mA
Features & Benefits
- Operates at a maximum current of up to 250mA
- Uniform light distribution under any beam angle
- Strengthened Anti sulfurization
- Color binning @ 85°C
High efficacy and lumen makes
The LH508D suitable for Streetlight and High-bay applications
| CRI | CCT | PART NUMBER | CHROM RANK | LUMINOUS FLUX (lm) @ 640 mA | |||
|---|---|---|---|---|---|---|---|
| RANK | BINS | MIN | MAX | ||||
| 70+ | 2200K | SPHWH2L5N603XEY3A3 SPHWH2L5N603XEY5A3 |
Y3 Y5 |
A3 | 58 62 |
580 620 |
620 660 |
| 2700K | SPHWH2L5N603XEW3A3 SPHWH2L5N603XEW5A3 |
W3 W5 |
A3 | 64 68 |
640 680 |
680 720 |
|
| 3000K | SPHWH2L5N603XEV3A3 SPHWH2L5N603XEV5A3 |
V3 V5 |
A3 | 65 69 |
650 690 |
690 730 |
|
| 3500K | SPHWH2L5N603XEU3A3 SPHWH2L5N603XEU5A3 |
U3 U5 |
A3 | 67 71 |
670 710 |
710 750 |
|
| 4000K | SPHWH2L5N603XET3A3 SPHWH2L5N603XET5A3 |
T3 T5 |
A3 | 69 73 |
690 730 |
730 770 |
|
| 5000K | SPHWH2L5N603XER3A3 SPHWH2L5N603XER5A3 |
R3 R5 |
A3 | 68 72 |
680 720 |
720 760 |
|
| 5700K | SPHWH2L5N603XEQ3A3 SPHWH2L5N603XEQ5A3 |
Q3 Q5 |
A3 | 67 71 |
670 710 |
710 750 |
|
| 6500K | SPHWH2L5N603XEP3A3 SPHWH2L5N603XEP5A3 |
P3 P5 |
A3 | 66 70 |
660 700 |
700 740 |
|
| 80+ | 2200K | SPHWH2L5N605XEY3A3 SPHWH2L5N605XEY5A3 |
Y3 Y5 |
A3 | 47 51 |
470 510 |
510 550 |
| 2700K | SPHWH2L5N605XEW3A3 SPHWH2L5N605XEW5A3 |
W3 W5 |
A3 | 55 59 |
550 590 |
590 630 |
|
| 3000K | SPHWH2L5N605XEV3A3 SPHWH2L5N605XEV5A3 |
V3 V5 |
A3 | 58 62 |
580 620 |
620 660 |
|
| 3500K | SPHWH2L5N605XEU3A3 SPHWH2L5N605XEU5A3 |
U3 U5 |
A3 | 60 64 |
600 640 |
640 680 |
|
| 4000K | SPHWH2L5N605XET3A3 SPHWH2L5N605XET5A3 |
T3 T5 |
A3 | 62 66 |
620 660 |
660 700 |
|
| 5000K | SPHWH2L5N605XER3A3 SPHWH2L5N605XER5A3 |
R3 R5 |
A3 | 62 66 |
620 660 |
660 700 |
|
| 5700K | SPHWH2L5N605XEQ3A3 SPHWH2L5N605XEQ5A3 |
Q3 Q5 |
A3 | 61 65 |
610 650 |
650 690 |
|
| 6500K | SPHWH2L5N605XEP3A3 SPHWH2L5N605XEP5A3 |
P3 P5 |
A3 | 61 65 |
610 650 |
650 690 |
|
| 90+ | 2200K | SPHWH2L5N607XEY3A3 SPHWH2L5N607XEY5A3 |
Y3 Y5 |
A3 | 41 45 |
410 450 |
450 490 |
| 2700K | SPHWH2L5N607XEW3A3 SPHWH2L5N607XEW5A3 |
W3 W5 |
A3 | 46 50 |
460 500 |
500 540 |
|
| 3000K | SPHWH2L5N607XEV3A3 SPHWH2L5N607XEV5A3 |
V3 V5 |
A3 | 48 52 |
480 520 |
520 560 |
|
| 3500K | SPHWH2L5N607XEU3A3 SPHWH2L5N607XEU5A3 |
U3 U5 |
A3 | 49 53 |
490 530 |
530 570 |
|
| 4000K | SPHWH2L5N607XET3A3 SPHWH2L5N607XET5A3 |
T3 T5 |
A3 | 52 56 |
520 560 |
560 600 |
|
| 5000K | SPHWH2L5N607XER3A3 SPHWH2L5N607XER5A3 |
R3 R5 |
A3 | 52 56 |
520 560 |
560 600 |
|
| 5700K | SPHWH2L5N607XEQ3A3 SPHWH2L5N607XEQ5A3 |
Q3 Q5 |
A3 | 52 56 |
520 560 |
560 600 |
|
