Description

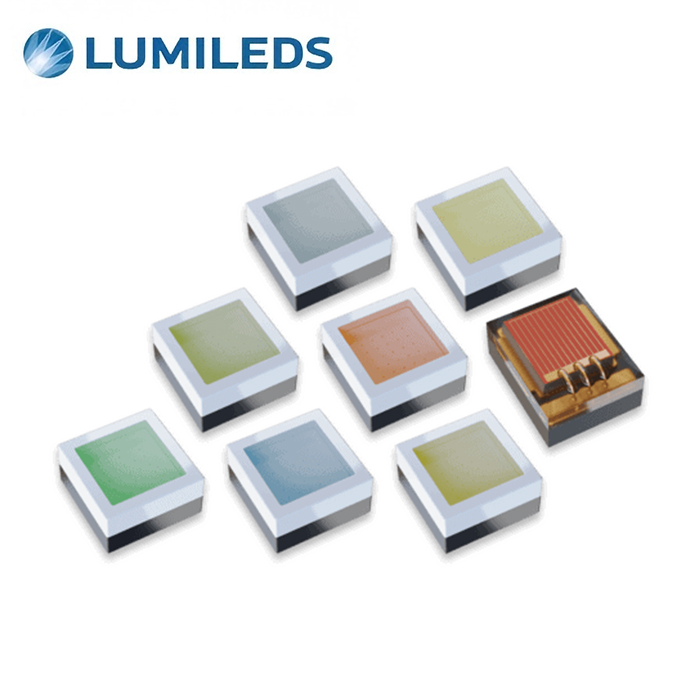

LUXEON Rubix is a breakthrough design for the LED industry. Designed with high drive current capability and small form factor, it provides maximum flux in a minimal amount of space making it ideal for entertainment, architectural and emergency vehicle lighting applications. This LED provides double the flux at a much higher drive current compared to previous generations. LUXEON Rubix LEDs are the smallest color emitters in the Lumileds portfolio enabling them to be packaged closer together to achieve high lumen output and high lumen density. The individual emitters and color gamut allow customers to have much better flexibility in their product design.
Features & Benefits
- Tiny footprint 1414 package
- High Drive current up to 3 Amps DC
- Maximized punch (cd/lm)
Applications
- Moving Head
- Spotlights
- Wall Wash
- Floodlights
- Landscape Lighting
Product Performance of LUXEON Rubix at 1500mA, Tj=85ºC.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux (lm) OR Radiometric Power (mW) |
Part Number | ||
|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | ||
 Red |
620 | 630 | 75 | 85 | L1RX-RED1000000000 |
 PC Amber |
– | – | 220 | 250 | L1RX-PCA1000000000 |
 Lime |
– | – | 420 | 510 | L1RX-LME1000000000 |
 Green |
520 | 535 | 260 | 310 | L1RX-GRN1000000000 |
 Cyan |
490 | 510 | 180 | 230 | L1RX-CYN1000000000 |
 Blue |
465 | 485 | 70 | 112 | L1RX-BLU1000000000 |
 Royal Blue |
440 | 455 | 1300 | 1635 | L1RX-RYL1000000000 |
Product Performance of LUXEON Rubix L1RX-RED2000000000 at 1000mA, Tj=85ºC.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux (lm) OR Radiometric Power (mW) |
Part Number | ||
|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | ||
| Red |
620 | 630 | 60 | 71 | L1RX-RED2000000000 |
Product Performance of LUXEON Rubix White at 1500mA, Tj=85°C
| Color | Nominal CCT |
Minimum CRI [1] |
Luminous Flux[1] (lm) | Typical Luminous Efficacy (lm/W) | Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| White | 5700K | 60 | 360 | 440 | 93 | L1RX-5760000000000 |
Product Performance of LUXEON Rubix white at 1000mA, Tj=85°C
| Color | Nominal CCT |
Minimum CRI [1] |
Luminous Flux[1] (lm) | Typical Luminous Efficacy (lm/W) | Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| White | 2200K | 80 | 140 | 208 | 70 | L1RX-2280000000000 |
| 2700K | 80 | 180 | 239 | 81 | L1RX-2780000000000 | |
| 3000K | 80 | 200 | 263 | 89 | L1RX-3080000000000 | |
| 3500K | 80 | 200 | 270 | 91 | L1RX-3580000000000 | |
| 4000K | 80 | 200 | 274 | 93 | L1RX-4080000000000 | |
| 4500K | 80 | 200 | 278 | 94 | L1RX-4580000000000 | |
| 6500K | 80 | 220 | 280 | 95 | L1RX-6580000000000 | |
| 2700K | 90 | 140 | 205 | 69 | L1RX-2790000000000 | |
