Description

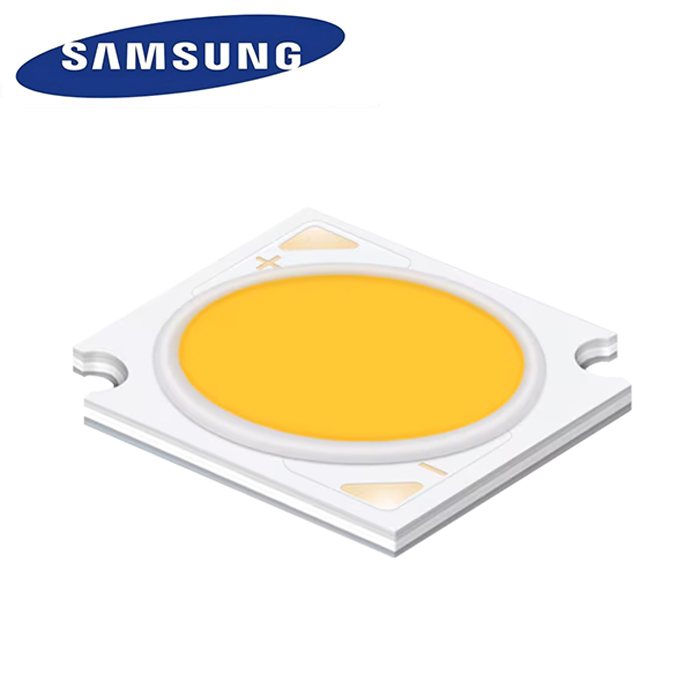

High Voltage LED Series Chip on Board–COB R – Series–Vegetable
- Vivid White, Green and Red
- Wattage: 13 W ~ 33 W
- Luminous Flux: 1835 lm (LC019D, 540 mA, 65℃)
Features & Benefits
- Chip on Board (COB) solution makes it easy to design in
- Simple assembly reduces manufacturing cost
- Low thermal resistance
- InGaN/GaN MQW LED with long time reliability
Applications
- Spotlight / Downlight
- LED Retrofit Bulbs
- Outdoor Illumination
High efficacy COB LED package well-suited for use in spotlight applications
| Item | Symbol | Model | Rating | Unit | Condition |
|---|---|---|---|---|---|
| Ambient / Operating Temperature | Ta | – | −40∼+105 | ∘C | – |
| Storage Temperature | Tstg | – | −40∼+120 | ∘C | – |
| LED Junction Temperature | TJ | – | 130 | ∘C | – |
| Case Temperature | TC | – | 115 | ∘C | – |
| Forward Current / Power Dissipation | IF/PD | LC013D | 920 / 34.5 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC016D | 1150 / 43.1 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC019D | 1380 / 51.8 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC026D | 1840 / 69 | mA / W | – |
| Forward Current / Power Dissipation | IF/PD | LC033D | 2300 / 86 | mA / W | – |
| ESD (HBM) | – | – | ±2 | kV | – |
| Item | Unit | Model | Rank | Min. | Typ. | Max. |
|---|---|---|---|---|---|---|
| Forward Voltage (VF) | V | – | YZ | 31.8 | 34.6 | 37.5 |
| Thermal Resistance (junction to chip case) | ∘C/W | LC013D | – | – | 1.53 | – |
| Thermal Resistance (junction to chip case) | ∘C/W | LC016D | – | – | 1.21 | – |
| Thermal Resistance (junction to chip case) | ∘C/W | LC019D | – | – | 1.08 | – |
| Thermal Resistance (junction to chip case) | ∘C/W | LC026D | – | – | 0.85 | – |
| Thermal Resistance (junction to chip case) | ∘C/W | LC033D | – | – | 0.72 | – |
| Beam Angle | ∘ | – | – | – | 115 | – |
| Nominal Power (Sorting Current) | W (mA) | LC013D | – | – | 12.5 (360) | – |
| Nominal Power (Sorting Current) | W (mA) | LC016D | – | – | 15.6 (450) | – |
| Nominal Power (Sorting Current) | W (mA) | LC019D | – | – | 18.7 (540) | – |
| Nominal Power (Sorting Current) | W (mA) | LC026D | – | – | 24.9 (720) | – |
| Nominal Power (Sorting Current) | W (mA) | LC033D | – | – | 31.1 (900) | – |
| Model | Nominal CCT (K) | Flux Rank | TC=65∘C (lm) Min. | TC=65∘C (lm) Typ. | TC=65∘C (lm) Max. |
|---|---|---|---|---|---|
| LC013D | Meat | D2 | 868 | 914 | – |
| LC016D | Meat | D2 | 1129 | 1188 | – |
| LC019D | Meat | D2 | 1341 | 1412 | – |
| LC026D | Meat | D2 | 1753 | 1845 | – |
| LC033D | Meat | D2 | 2170 | 2284 | – |
| Model | Nominal CCT (K) | Product Code | VF Rank | Color Rank | Flux Rank | Flux Range (Φv, lm) |
|---|---|---|---|---|---|---|
| LC013D | Meat | SPHWHAHDND2VY2TZSD2 | YZ | TS | D2 | 868 ~ |
| LC016D | Meat | SPHWHAHDONE2VY2TZSD2 | YZ | TS | D2 | 1129 ~ |
| LC019D | Meat | SPHWHAHDNF2VY2TZSD2 | YZ | TS | D2 | 1341 ~ |
| LC026D | Meat | SPHWHAHDNG2VY2TZSD2 | YZ | TS | D2 | 1753 ~ |
| LC033D | Meat | SPHWHAHDNH2VY2TZSD2 | YZ | TS | D2 | 2170 ~ |
